FX60 - (1/02-) Rear Axle

Key

Ref	Description
1	GEARBOX
2	HOUSING
3	INDICATOR
4	COVER
5	BELLEVILLE WASHER,M8
6	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
7	SHIM
7	SHIM
7	SHIM
8	FLANGE
9	BOLT,Hex, M8 x 25, 8.8
10	SHIM
10	SHIM,.060" Thk
11	BEARING LOCK NUT
12	BEARING ASSY
13	SNAP RING,M75, Int
14	TAPERED ROLLER BEARING
15	SEALING RING
16	SHAFT
17	O-RING,106mm ID x 2mm Width
18	SEALING WASHER
19	BOLT,Hex, M12 x 40, 10.9, Full Thd
20	BELLEVILLE WASHER,Belleville, M12
21	WASHER
22	DRAIN PLUG

MalpasDirect - Replacement Tractors Parts

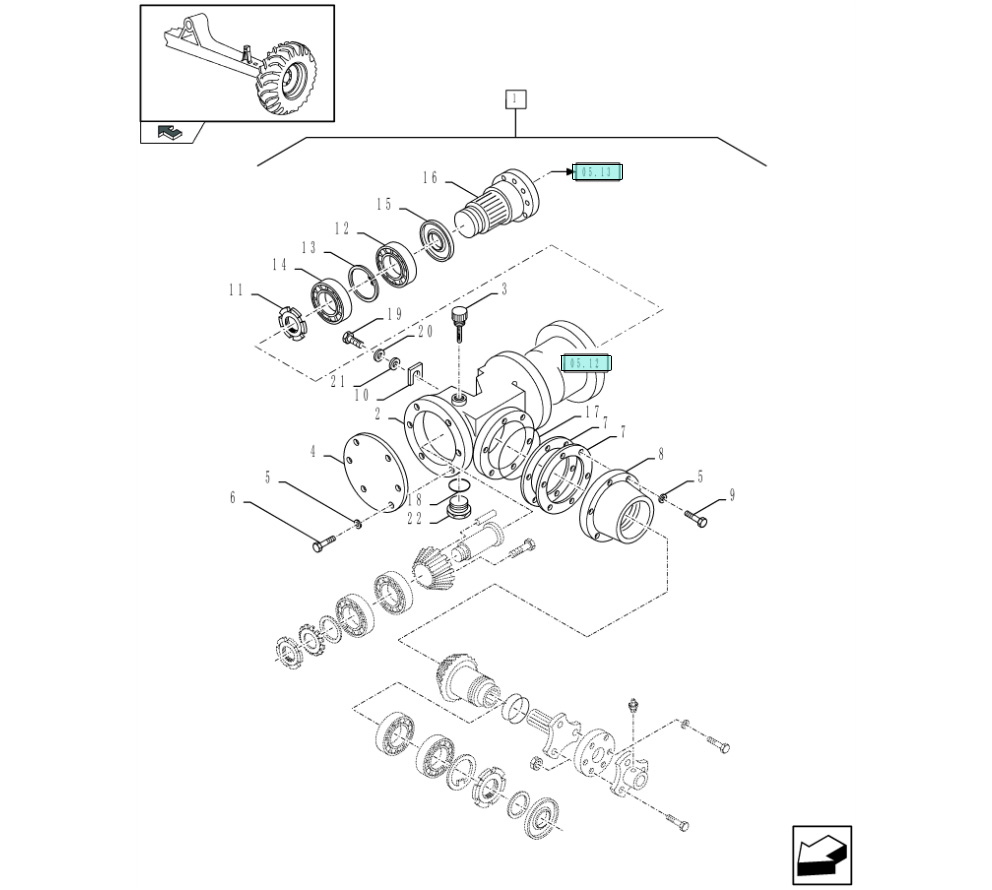

Diagram

Located in:

FX Series Parts / FX60 - (1/02-) / Rear Axle /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84030374 GEARBOX for FX28/30/38/40/48/50/58/60 (2 to 22, Fig.09.36 and 09.37) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84007400 HOUSING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84041252 INDICATOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84011649 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 12) In Stock Shipping Costs...	Call Ex VAT	1
6	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
7	84011768 SHIM for all New Holland FX Forager Harvesters models THK.: 0.15 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84011769 SHIM for all New Holland FX Forager Harvesters models THK.: 0.20 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
7	84011770 SHIM for all New Holland FX Forager Harvesters models THK.: 0.30 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	84022864 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	84023895 SHIM for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
10	86900823 SHIM,.060" Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	412351 BEARING LOCK NUT for all New Holland FX Forager Harvesters models M35 x 1.5 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	86577044 BEARING ASSY for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	382103 SNAP RING,M75, Int for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
14	84438713 TAPERED ROLLER BEARING for all New Holland FX Forager Harvesters models (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
15	84036438 SEALING RING - this part has been superceded by 87540642 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84036333 SHAFT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84022826 O-RING,106mm ID x 2mm Width for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
18	220049 SEALING WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
19	337563 BOLT,Hex, M12 x 40, 10.9, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
20	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
21	395606 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	366298 DRAIN PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
