FX38 - (9/98-) General

Key

RefDescription
1 Fuel - (Qty. in liters), (208.7 US gallons),FOR FX28 & FX28 NA, FX38 & FX38 NA, FX48 ONLY,FUEL SPECIFICATIONS: MAX. SULPHUR CONTENT 0.5%
1 Fuel - (Qty. in liters), (208.7 US gallons),FUEL SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,FOR FX58 & FX58 NA ONLY
2 Engine oil (Qty. in liters), (7.7 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5% - 1%),600 H
2 Engine oil (Qty. in liters), (9.25 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX38-FX38 NA-FX48 ONLY,100 HOURS (FOR FUEL WITH A SULPHUR CONT
2 Engine oil (Qty. in liters), (9 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5% - 1%),500 HOU
3 Main hydraulic/hydrostatic system oil (Qty. in liters), (10 US gallons: Reservoir capacity) - Entire system capacity: 93 liters (24.5 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FI
4 Main hydraulic clutch oil (Qty. in liters), (1.85 US gallons: Reservoir capacity) - Entire system capacity: 10 liters (2.65 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST 100 OP
5 High capacity rear hydraulics oil (Qty. in liters), (18.5 US gallons: Reservoir capacity) - Entire system capacity: 77 liters (20 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST
6 Traction gearbox oil (Qty. in liters), (4 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
7 Final drive oil - 10/75 Final Drive (Qty. in liters), (1.32 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY,WITH HWC (HIGH
8 Four-wheel drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
9 Four-wheel drive steering axle oil (Qty. in liters), (2.64 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
10 Four-wheel drive steering axle Planetary final drive oil (Qty. in liters), (0.26 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR AN
11 Cutterhead gearbox oil (Qty. in liters), (1.14 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY
12 Upper feed rolls chain box oil (Qty. in liters), (0.13 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
13 Feed roll/Length-Of-Cut gearbox oil (Qty. in liters), (1.66 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY
14 Blower gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY
15 Reverser/High-speed blower gearbox oil (Qty. in liters), (1.05 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY
16 Brake fluid (Qty. in liters), (0.13 US gallons): Reservoir capacity - Entire system capacity: 2 liters (0.53 US gallons), Ambra Syntfluid 4 (ref. NH800A), SAE J1703 - Int. specifications: NHTSA 116-DOT 4 or ISO 4925,2 YEARS
17 Engine coolant (Qty. in liters), (15.8 US gallons), Coolant type: Mixture of 47.5% antifreeze (glycol): ESE-M97B 18C + 47.5% water + 5% conditioner: NALCOOL3000 ESE-M99B169-A,600 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST,FOR FX28 & FX28 NA, FX38 & FX3
17 Engine coolant - shunt tank (Qty. in liters), (15.8 US gallons),COOLANT SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,3000 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST,FOR FX58 & FX58 NA ONLY
18 Grease - Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B
19 Automatic greasing - Groeneveld Twin-Pump (Qty. in liters), (0.77 US gallons): Reservoir capacity, Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B
20 Windshield wash reservoir fluid (Qty. in liters), (2.1 US gallons), Mixture of Tutela Professional SC35 & water - Summer: 30% SC35 + 70% water - Winter: 50% SC35 + 50% water - Outside temp. < -20° C: Do not dilute the detergent
21 Air conditioning system (Qty. in Kg), (4.6 lb), R-134a Refrigerant gas - Hydrofluorocarbon "HFC" - SAE purity standard J2099
MalpasDirect - Replacement Tractors Parts

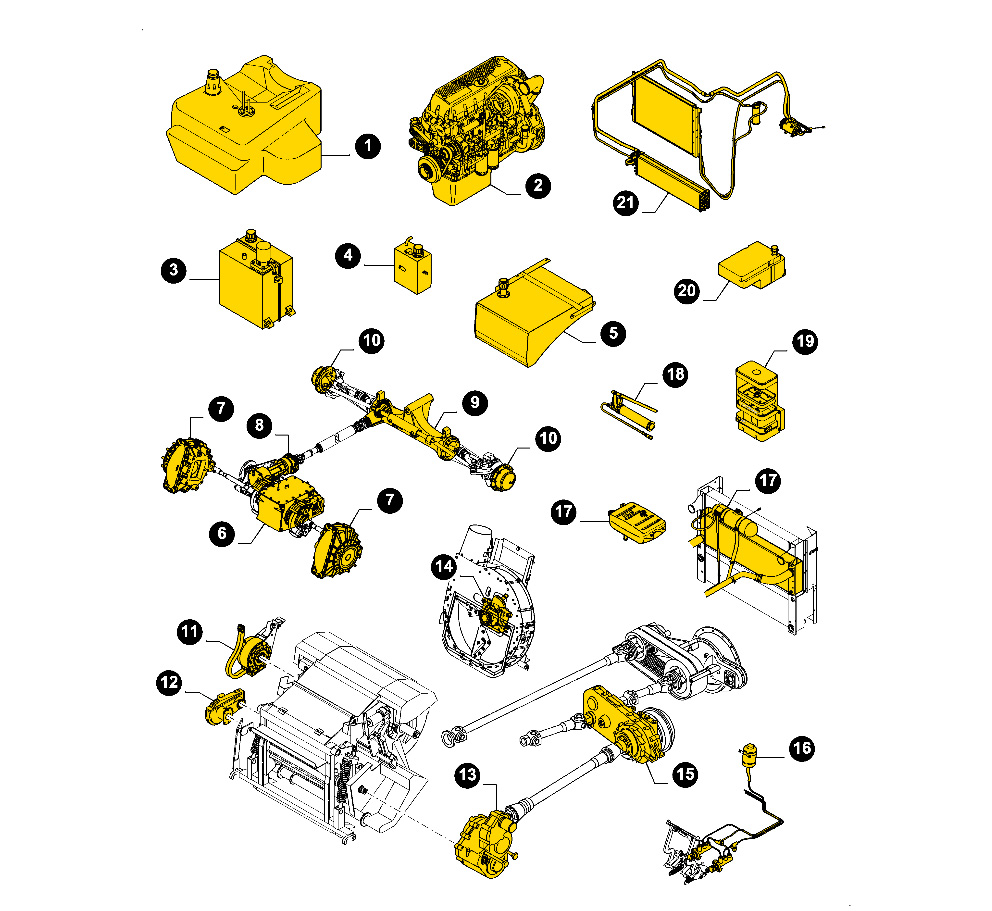

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / General /

View Previous Diagram View Next Diagram
Ref
Part No. and Description
Price (GBP)

Min.(Qty)
Add
1
Fuel - (Qty. in liters), (208.7 US gallons),FOR FX28 & FX28 NA, FX38 & FX38 NA, FX48 ONLY,FUEL SPECIFICATIONS: MAX. SULPHUR CONTENT 0.5%

-
-
-
1
Fuel - (Qty. in liters), (208.7 US gallons),FUEL SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,FOR FX58 & FX58 NA ONLY

-
-
-
2
Engine oil (Qty. in liters), (7.7 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5% - 1%),600 H

-
-
-
2
Engine oil (Qty. in liters), (9.25 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX38-FX38 NA-FX48 ONLY,100 HOURS (FOR FUEL WITH A SULPHUR CONT

-
-
-
2
Engine oil (Qty. in liters), (9 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5% - 1%),500 HOU

-
-
-
3
Main hydraulic/hydrostatic system oil (Qty. in liters), (10 US gallons: Reservoir capacity) - Entire system capacity: 93 liters (24.5 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FI

-
-
-
4
Main hydraulic clutch oil (Qty. in liters), (1.85 US gallons: Reservoir capacity) - Entire system capacity: 10 liters (2.65 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST 100 OP

-
-
-
5
High capacity rear hydraulics oil (Qty. in liters), (18.5 US gallons: Reservoir capacity) - Entire system capacity: 77 liters (20 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST

-
-
-
6
Traction gearbox oil (Qty. in liters), (4 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
7
Final drive oil - 10/75 Final Drive (Qty. in liters), (1.32 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY,WITH HWC (HIGH

-
-
-
8
Four-wheel drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
9
Four-wheel drive steering axle oil (Qty. in liters), (2.64 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
10
Four-wheel drive steering axle Planetary final drive oil (Qty. in liters), (0.26 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR AN

-
-
-
11
Cutterhead gearbox oil (Qty. in liters), (1.14 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY

-
-
-
12
Upper feed rolls chain box oil (Qty. in liters), (0.13 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
13
Feed roll/Length-Of-Cut gearbox oil (Qty. in liters), (1.66 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY

-
-
-
14
Blower gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY

-
-
-
15
Reverser/High-speed blower gearbox oil (Qty. in liters), (1.05 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,300 HOURS OR ANNUALLY

-
-
-
16
Brake fluid (Qty. in liters), (0.13 US gallons): Reservoir capacity - Entire system capacity: 2 liters (0.53 US gallons), Ambra Syntfluid 4 (ref. NH800A), SAE J1703 - Int. specifications: NHTSA 116-DOT 4 or ISO 4925,2 YEARS

-
-
-
17
Engine coolant (Qty. in liters), (15.8 US gallons), Coolant type: Mixture of 47.5% antifreeze (glycol): ESE-M97B 18C + 47.5% water + 5% conditioner: NALCOOL3000 ESE-M99B169-A,600 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST,FOR FX28 & FX28 NA, FX38 & FX3

-
-
-
17
Engine coolant - shunt tank (Qty. in liters), (15.8 US gallons),COOLANT SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,3000 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST,FOR FX58 & FX58 NA ONLY

-
-
-
18
Grease - Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B

-
-
-
19
Automatic greasing - Groeneveld Twin-Pump (Qty. in liters), (0.77 US gallons): Reservoir capacity, Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B

-
-
-
20
Windshield wash reservoir fluid (Qty. in liters), (2.1 US gallons), Mixture of Tutela Professional SC35 & water - Summer: 30% SC35 + 70% water - Winter: 50% SC35 + 50% water - Outside temp. < -20° C: Do not dilute the detergent

-
-
-
21
Air conditioning system (Qty. in Kg), (4.6 lb), R-134a Refrigerant gas - Hydrofluorocarbon "HFC" - SAE purity standard J2099

-
-
-
