FX50 - (1/02-) General

Key

RefDescription
1 Fuel - (Qty. in liters), (240 US gallons),FOR FX30-40-50 ONLY,FUEL SPECIFICATIONS: NUMBER 1-D FUEL IN TEMPERATURES BELOW -7°C (20°F), MIN. CETANE RATING: 40, MAX. SULPHUR CONTENT: 0.5%,FUEL SPECIFICATIONS: NUMBER 2-D FUEL IN TEMPERATURES ABOVE -7°C (20°F)
1 Fuel - (Qty. in liters), (240 US gallons),FOR FX60 ONLY,FUEL SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE
2 Engine oil (Qty. in liters), (7.7 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX30 ONLY,600 HOURS OR ANNUALLY (FOR FUEL WITH A SULPHUR CONTEN
2 Engine oil (Qty. in liters), (9.25 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX40-50 ONLY,600 HOURS OR ANNUALLY (FOR FUEL WITH A SULPHUR CO
2 Engine oil (Qty. in liters), (9 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX60 ONLY,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5%
3 Main hydraulic/hydrostatic system oil (Qty. in liters), (12.15 US gallons: Reservoir capacity) - Entire system capacity: 130 liters (34 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE
4 Main hydraulic clutch oil (Qty. in liters), (1.85 US gallons: Reservoir capacity) - Entire system capacity: 10 liters (2.65 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST 100 OP
5 High capacity rear hydraulics oil (Qty. in liters), (18.5 US gallons: Reservoir capacity) - Entire system capacity: 77 liters (20 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST
6 Traction gearbox oil (Qty. in liters), (4 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
7 Final drive oil - 10/75 Final Drive (Qty. in liters), (1.32 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,WITH HWC (HIGH WHEEL CENTER) PLATES INSTALLED: 7.2 LITER (1.9 US GAL) +
8 Four-wheel drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
9 Four-wheel drive steering axle oil (Qty. in liters), (2.64 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
10 Four-wheel drive steering axle Planetary final drive oil (Qty. in liters), (0.26 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR AN
11 Cutterhead gearbox oil (Qty. in liters), (1.14 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
12 HydroLoc™ gearbox oil (Qty. in liters), (1.92 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
13 Upper feed rolls drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
14 Attachment drive gearbox oil (Qty. in liters), (0.48 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
15 Blower gearbox oil (Qty. in liters), (0.53 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
16 High-speed blower gearbox oil (Qty. in liters), (0.18 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY
17 Brake fluid (Qty. in liters), (0.13 US gallons): Reservoir capacity - Entire system capacity: 2 liters (0.53 US gallons), Ambra Syntfluid 4 (ref. NH800A), SAE J1703 - Int. specifications: NHTSA 116-DOT 4 or ISO 4925,2 YEARS
18 Engine coolant (Qty. in liters), (15.8 US gallons), Coolant type: Mixture of 50% Ambra Agriflu (ref. NH900A) antifreeze & 50% water,FOR FX30-40-50 ONLY,600 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST
18 Engine coolant (Qty. in liters), (15.8 US gallons),FOR FX60 ONLY,COOLANT SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,3000 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST
19 Grease - Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B
20 Automatic greasing - Groeneveld Twin-Pump (Qty. in liters), (0.77 US gallons): Reservoir capacity, Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B
21 Windshield wash reservoir fluid (Qty. in liters), (2.1 US gallons), Mixture of Tutela Professional SC35 & water - Summer: 30% SC35 + 70% water - Winter: 50% SC35 + 50% water - Outside temp. < -20° C: Do not dilute the detergent
22 Air conditioning system (Qty. in Kg), (4.6 lb), R-134a Refrigerant gas - Hydrofluorocarbon "HFC" - SAE purity standard J2099

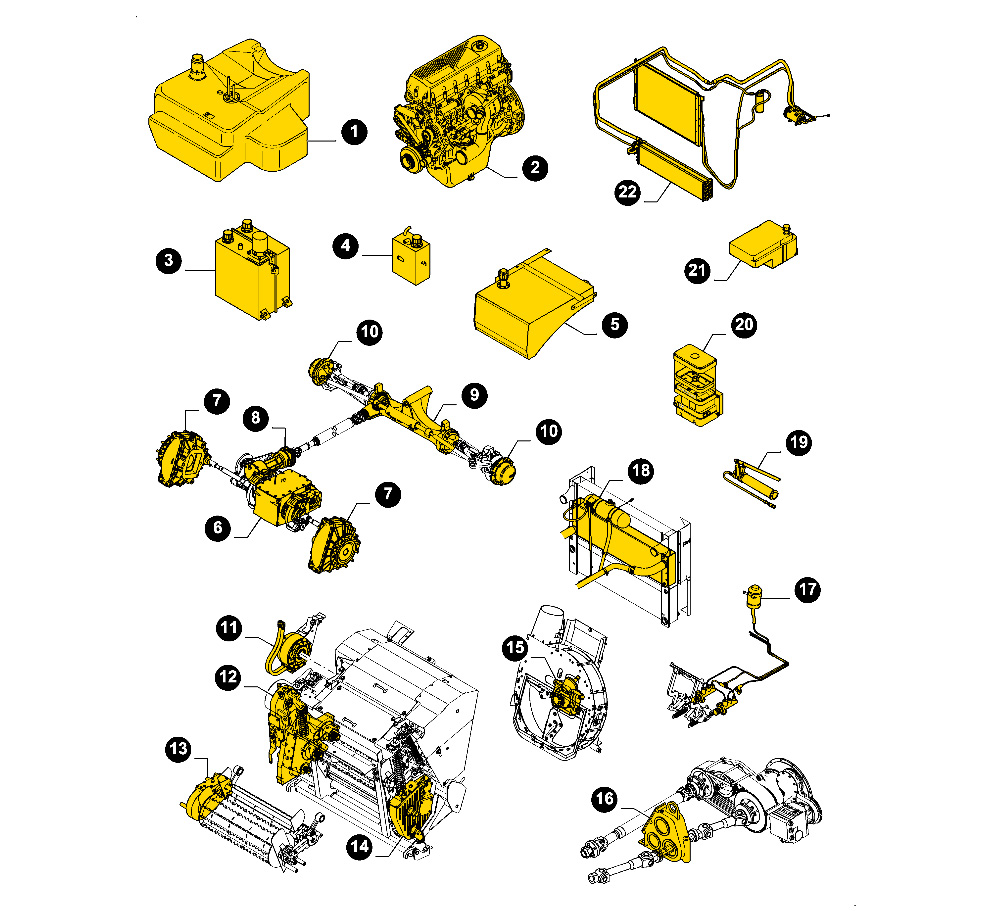

Diagram

View Previous Diagram View Next Diagram
Ref
Part No. and Description
Price (GBP)

Min.(Qty)
1
Fuel - (Qty. in liters), (240 US gallons),FOR FX30-40-50 ONLY,FUEL SPECIFICATIONS: NUMBER 1-D FUEL IN TEMPERATURES BELOW -7°C (20°F), MIN. CETANE RATING: 40, MAX. SULPHUR CONTENT: 0.5%,FUEL SPECIFICATIONS: NUMBER 2-D FUEL IN TEMPERATURES ABOVE -7°C (20°F)

-
-
-
1
Fuel - (Qty. in liters), (240 US gallons),FOR FX60 ONLY,FUEL SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE

-
-
-
2
Engine oil (Qty. in liters), (7.7 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX30 ONLY,600 HOURS OR ANNUALLY (FOR FUEL WITH A SULPHUR CONTEN

-
-
-
2
Engine oil (Qty. in liters), (9.25 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX40-50 ONLY,600 HOURS OR ANNUALLY (FOR FUEL WITH A SULPHUR CO

-
-
-
2
Engine oil (Qty. in liters), (9 US gallons) - Total engine sump and filter capacity, New Holland Ambra Mastergold HSP (ref. NH330H), SAE15W40 - Int. specifications: API CH4 - ACEA E3/E5,FOR FX60 ONLY,100 HOURS (FOR FUEL WITH A SULPHUR CONTENT BETWEEN 0.5%

-
-
-
3
Main hydraulic/hydrostatic system oil (Qty. in liters), (12.15 US gallons: Reservoir capacity) - Entire system capacity: 130 liters (34 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE

-
-
-
4
Main hydraulic clutch oil (Qty. in liters), (1.85 US gallons: Reservoir capacity) - Entire system capacity: 10 liters (2.65 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST 100 OP

-
-
-
5
High capacity rear hydraulics oil (Qty. in liters), (18.5 US gallons: Reservoir capacity) - Entire system capacity: 77 liters (20 US gallons), Ambra Hydrosystem 46 HV (ref. NH646H) - Int. specifications: DIN 51524 Part 2 HV 46 - ISO VG-46,AFTER THE FIRST

-
-
-
6
Traction gearbox oil (Qty. in liters), (4 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
7
Final drive oil - 10/75 Final Drive (Qty. in liters), (1.32 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,WITH HWC (HIGH WHEEL CENTER) PLATES INSTALLED: 7.2 LITER (1.9 US GAL) +

-
-
-
8
Four-wheel drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
9
Four-wheel drive steering axle oil (Qty. in liters), (2.64 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
10
Four-wheel drive steering axle Planetary final drive oil (Qty. in liters), (0.26 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR AN

-
-
-
11
Cutterhead gearbox oil (Qty. in liters), (1.14 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
12
HydroLoc™ gearbox oil (Qty. in liters), (1.92 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
13
Upper feed rolls drive gearbox oil (Qty. in liters), (0.37 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
14
Attachment drive gearbox oil (Qty. in liters), (0.48 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
15
Blower gearbox oil (Qty. in liters), (0.53 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
16
High-speed blower gearbox oil (Qty. in liters), (0.18 US gallons), New Holland Ambra Hypoide 90 Gear Lube (ref. NH520A), SAE80W90 - Int. specifications: API GL-5 - MIL-L-2105 D,AFTER THE FIRST 100 OPERATING HOURS,600 HOURS OR ANNUALLY

-
-
-
17
Brake fluid (Qty. in liters), (0.13 US gallons): Reservoir capacity - Entire system capacity: 2 liters (0.53 US gallons), Ambra Syntfluid 4 (ref. NH800A), SAE J1703 - Int. specifications: NHTSA 116-DOT 4 or ISO 4925,2 YEARS

-
-
-
18
Engine coolant (Qty. in liters), (15.8 US gallons), Coolant type: Mixture of 50% Ambra Agriflu (ref. NH900A) antifreeze & 50% water,FOR FX30-40-50 ONLY,600 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST

-
-
-
18
Engine coolant (Qty. in liters), (15.8 US gallons),FOR FX60 ONLY,COOLANT SPECIFICATIONS - REFER TO THE OPERATOR'S MANUAL OF THE CATERPILLAR ENGINE,3000 HOURS OR EVERY 2 YEARS, WHICHEVER COMES FIRST

-
-
-
19
Grease - Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B

-
-
-
20
Automatic greasing - Groeneveld Twin-Pump (Qty. in liters), (0.77 US gallons): Reservoir capacity, Ambra GR9 (ref. NH710A), NLGI 2, Int. spec.: M1C 137-A or New Holland Ambra GR 75 MD Grease (ref. NH720A), NLGI 2, Int. specification: M1C 75-B

-
-
-
21
Windshield wash reservoir fluid (Qty. in liters), (2.1 US gallons), Mixture of Tutela Professional SC35 & water - Summer: 30% SC35 + 70% water - Winter: 50% SC35 + 50% water - Outside temp. < -20° C: Do not dilute the detergent

-
-
-
22
Air conditioning system (Qty. in Kg), (4.6 lb), R-134a Refrigerant gas - Hydrofluorocarbon "HFC" - SAE purity standard J2099

-
-
-
