FX40 - (1/02-) Crop Processor

Key

Ref	Description
1	STOP
2	BOLT,Hex, M12 x 30, 8.8, Full Thd
3	BELLEVILLE WASHER,Belleville, M12
4	WASHER
5	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
5	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
6	RING
7	PISTON RING SET
7	PISTON RING SET
8	KEY
9	FLANGE(CPP)
10	BEARING HOUSING
11	CLAMP
12	LOCKING PLATE
13	BOLT,Hex, M10 x 40, 8.8, Full Thd
14	SENSOR
15	CIRCLIP,M35, Int
16	PIN
17	BELLEVILLE WASHER,M8
18	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
19	BOLT,Hex, M8 x 16, 8.8
20	COVER
20	COVER
21	BEARING HOUSING
22	BOLT,Hex, M16 x 80, 8.8, Full Thd
23	NUT,M16, Cl 8
24	SNAP RING,M100, Ext
25	BUSHING
26	BOLT,Hex, M10 x 25, 8.8, Full Thd
26	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
27	BELLEVILLE WASHER,M10
28	STUD
29	NUT,M10, Cl 8
30	HOUSING
31	LUBE NIPPLE,M6 x 1, 16mm lg
32	SET SCREW,Hex Soc, M8 x 25, Cup Pt
33	NUT,M8, Cl 8
34	SUPPORT
35	BUSHING
36	BUSHING
37	WASHER,M8 x 28 x 3
38	PLATE
39	LUBE NIPPLE
40	HYD CONNECTOR
41	SHIM
42	SNAP RING,M80, Int
43	SNAP RING,M40, Ext
43	ADJUSTING PLATE
44	FLANGE
45	RING
45	SET OF RINGS
46	SET SCREW,Hex Soc, M8 x 16, Cup Pt

MalpasDirect - Replacement Tractors Parts

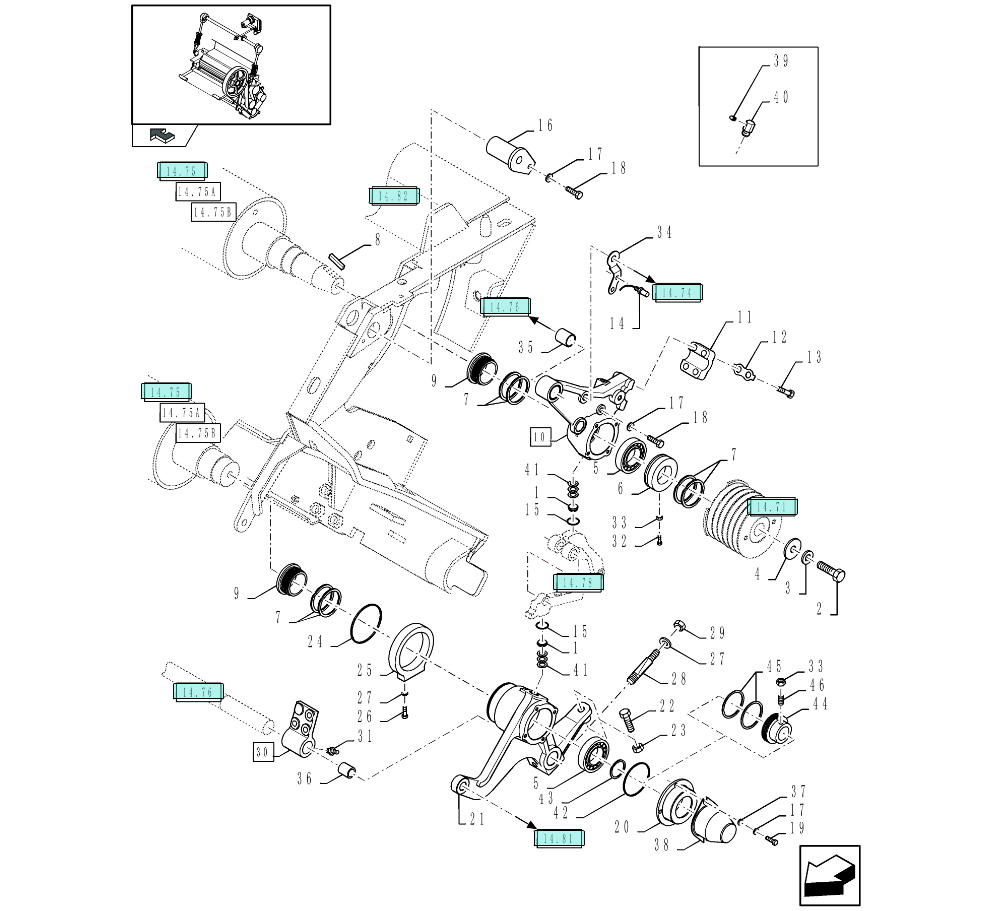

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Crop Processor /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84077122 STOP for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
3	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
4	9801096 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	323327 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for all New Holland FX Forager Harvesters models , Serial Range: -C437,MAINTENANCE PART (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
5	87516228 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for FX30/40/50/60 , Start Serial: D438,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84077521 RING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	89850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	360956 KEY for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	84000853 FLANGE(CPP) for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84449396 BEARING HOUSING for FX30/40/50/60 (35) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84077738 CLAMP for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84431904 LOCKING PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
13	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
14	84056907 SENSOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	300642 CIRCLIP,M35, Int for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
16	84075366 PIN for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	1
18	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
19	120103 BOLT,Hex, M8 x 16, 8.8 - this part has been superceded by 16043224 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84452026 COVER for FX30/40/50/60 , Serial Range: -C503 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	87518013 COVER for FX30/40/50/60 , Start Serial: D504 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84334814 BEARING HOUSING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	394674 BOLT,Hex, M16 x 80, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	370010 SNAP RING,M100, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84075050 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
27	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	25
28	84989980 STUD for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
30	84334121 HOUSING for FX28/30/38/40/48/50/58/60 (36) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
32	300479 SET SCREW,Hex Soc, M8 x 25, Cup Pt for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84453113 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	84054389 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	412365 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	140041 WASHER,M8 x 28 x 3 for FX28/30/300/375/38/40/450/48/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
38	84819754 PLATE for FX30/40/50/60 , Serial Range: -C503 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	84053211 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	84334884 SHIM for FX28/30/38/40/48/50/58/60 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
42	300633 SNAP RING,M80, Int for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
43	370006 SNAP RING,M40, Ext for all New Holland FX Forager Harvesters models , Serial Range: -C503 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
43	84014579 ADJUSTING PLATE for FX30/40/50/60 , Start Serial: D504 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
44	84449346 FLANGE for FX30/40/50/60 , Start Serial: D504 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	9850345 RING for all New Holland FX Forager Harvesters models , Start Serial: D504 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	89850345 SET OF RINGS - this part has been superceded by 9850345 , Start Serial: D504 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
46	300477 SET SCREW,Hex Soc, M8 x 16, Cup Pt for FX28/30/38/40/48/50/58/60 , Start Serial: D504 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
