FX30 - (1/02-) 18.87529427[03] - DIA KIT : CROP PRO PLUS BELT DRIVE - 99 TEETH (CPP READY MACHINES)

Key

Ref	Description
	DIA KIT, HARVESTER
1	FLANGE(CPP)
2	PISTON RING SET
2	PISTON RING SET
3	BEARING HOUSING
4	CLAMP
5	LOCKING PLATE
6	CIRCLIP,M35, Int
7	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
8	SHIM
9	SNAP RING,M80, Int
10	BELLEVILLE WASHER,M8
11	NUT,M16, Cl 8
12	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
13	PIN
14	SHAFT
15	SNAP RING,M100, Ext
16	BUSHING
17	BELLEVILLE WASHER,M10
18	BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2)
18	BOLT,Hex, M10 x 25, 8.8, Full Thd
19	BEARING HOUSING
20	SNAP RING,M40, Ext
21	BEARING HOUSING
22	BOLT,Hex, M16 x 50, 8.8
23	BELLEVILLE WASHER,M16
24	LUBE NIPPLE,M6 x 1, 16mm lg
25	SHAFT
26	STOP
27	HYD CONNECTOR
28	LUBE NIPPLE
29	NUT,M10, Cl 8
30	STUD
31	BOLT,Hex, M16 x 80, 8.8, Full Thd

MalpasDirect - Replacement Tractors Parts

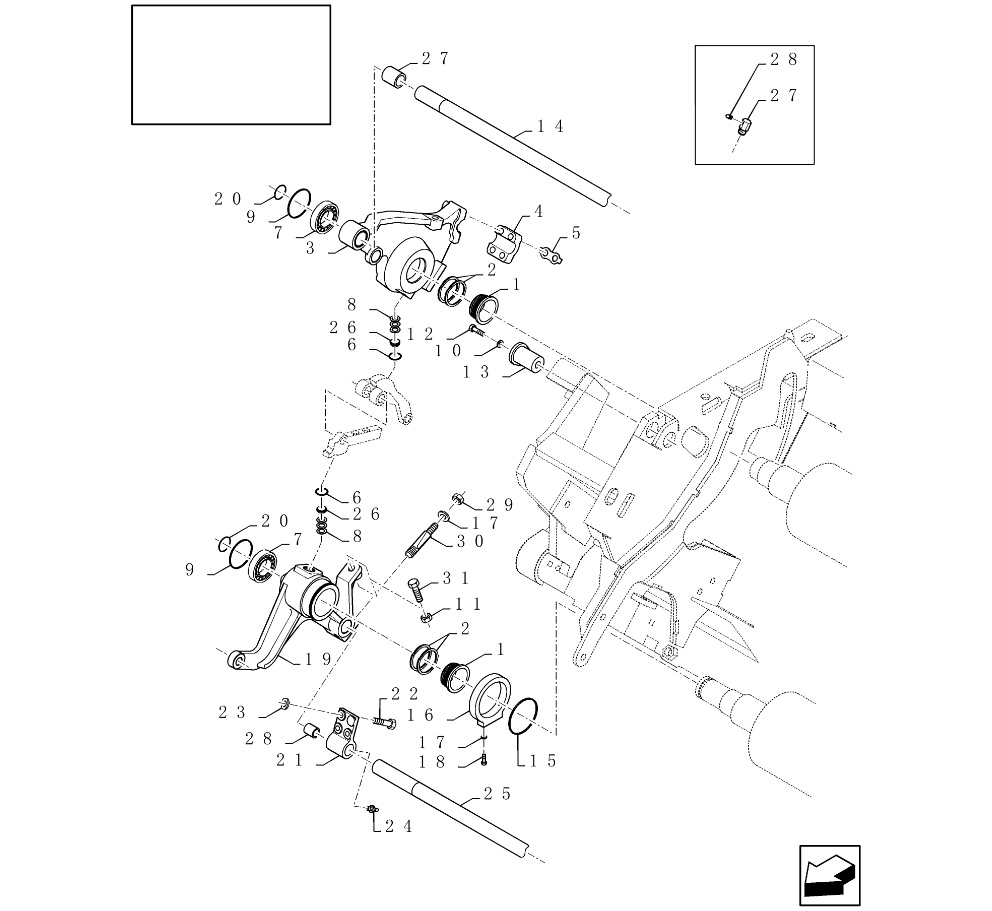

Diagram

Located in:

FX Series Parts / FX30 - (1/02-) / Accessories /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	87529427 DIA KIT, HARVESTER for FX30/40/50/60 Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	84000853 FLANGE(CPP) for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	89850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84334899 BEARING HOUSING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84077738 CLAMP for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84431904 LOCKING PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
6	300642 CIRCLIP,M35, Int for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	87516228 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84334884 SHIM for FX28/30/38/40/48/50/58/60 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
9	300633 SNAP RING,M80, Int for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
10	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
11	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
13	84075366 PIN for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84433209 SHAFT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	370010 SNAP RING,M100, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84075050 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	25
18	2975077 BOLT,Hex, M10 x 25, 8.8, Full Thd (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
18	43139 BOLT,Hex, M10 x 25, 8.8, Full Thd - this part has been superceded by 2975077 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84334860 BEARING HOUSING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	370006 SNAP RING,M40, Ext for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	5
21	84989500 BEARING HOUSING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	120090 BOLT,Hex, M16 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
25	84433211 SHAFT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84077122 STOP for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84053211 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
30	84989980 STUD for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	394674 BOLT,Hex, M16 x 80, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
