FX60 - (1/02-) Sheet Metal/Decals

Key

Ref	Description
1	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
2	BELLEVILLE WASHER,M8
3	NUT,M8, Cl 8
4	SUPPORT
5	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
6	BELLEVILLE WASHER,M10
7	NUT,M10, Cl 8
8	BOLT,Hex, M10 x 30, 8.8, Full Thd
9	PLATFORM
10	ANTI-SKID STRIP
13	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
14	COVER PLATE
15	SCREW
17	WASHER,M6 x 22 x 2
18	BELLEVILLE WASHER,M6
21	BOLT,Hex, M6 x 20, 8.8
22	COVER
23	GUARD
24	SEAL
25	BOLT,Hex, M10 x 40, 8.8, Full Thd
26	NUT,M6, Cl 10
26	NUT M6 HEX
27	WASHER,M10 x 20 x 2
28	ARM
28	ARM
29	CLIP

MalpasDirect - Replacement Tractors Parts

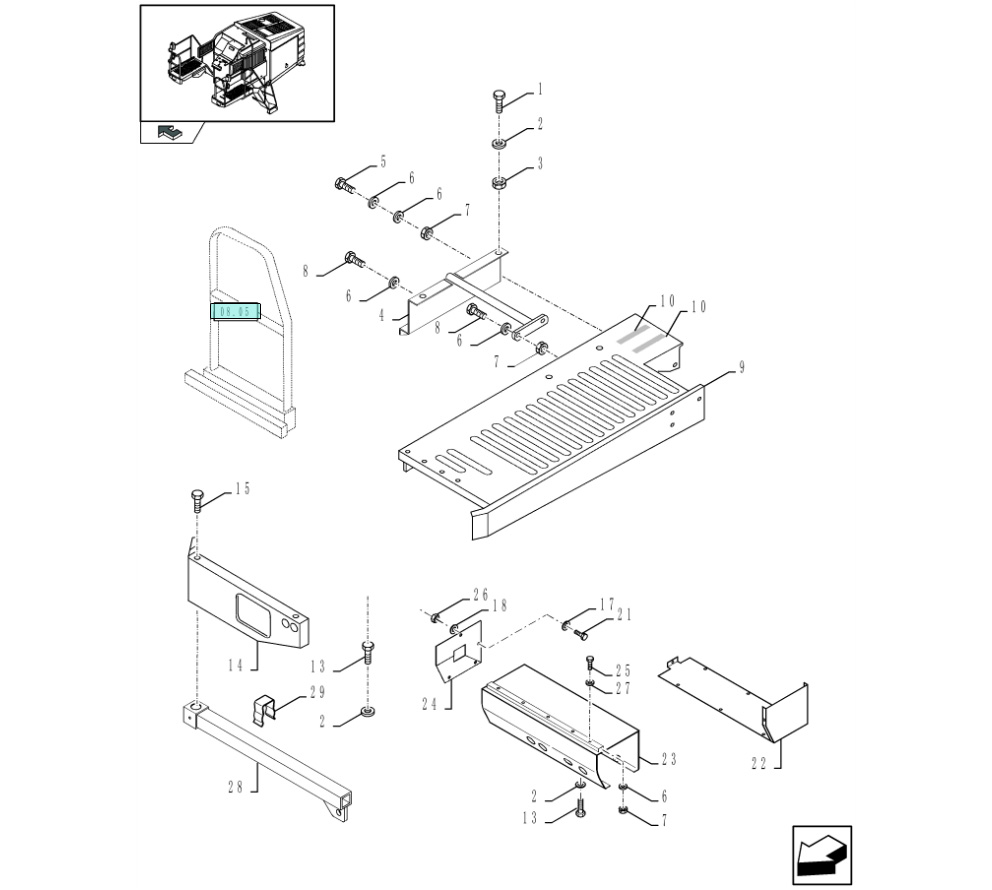

Diagram

Located in:

FX Series Parts / FX60 - (1/02-) / Sheet Metal/Decals /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
2	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	1
3	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84442622 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
7	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	10
8	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
9	84432130 PLATFORM for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	401502 ANTI-SKID STRIP for all New Holland FX Forager Harvesters models 51 mm x 18.3 Roll -, Serial Range: Cut-Size (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
14	84001236 COVER PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	N605772S36 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	140040 WASHER,M6 x 22 x 2 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
21	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: AR) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
22	84442159 COVER for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84442172 GUARD for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84442185 SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
27	140017 WASHER,M10 x 20 x 2 - this part has been superceded by 14496621 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84442178 ARM - this part has been superceded by 87540460 , Serial Range: -C515 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	87540460 ARM for FX30/40/50/60 , Start Serial: D516 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84446872 CLIP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
