FX60 - (1/02-) Main Frame

Key

Ref	Description
1	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
2	FIXING PLATE
3	CANVAS
3	CANVAS
4	COVER PLATE
4	PLATE
5	FRAME
5	FRAME
6	NUT,M8, Cl 8
7	BELLEVILLE WASHER,M8
8	COVER
9	COTTER PIN,M4 x 20
10	ROD
11	BELLEVILLE WASHER,M16
12	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
12	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
13	NUT,M16 x 2, Cl 8
14	WASHER,M16.5 x 49 x 0.3 Thk, HDN
15	WASHER,M8
15	WASHER,M8 (pack of 10)
15	WASHER
16	ADJUSTING PLATE
17	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC
18	RUBBER BUMPER
18	INSULATOR BLOCK
19	BELLEVILLE WASHER,M10
20	NUT,M10, Cl 8
21	SHIM
22	ADJUSTING PLATE
23	BOLT,Hex, M16 x 240, 8.8
24	WASHER

MalpasDirect - Replacement Tractors Parts

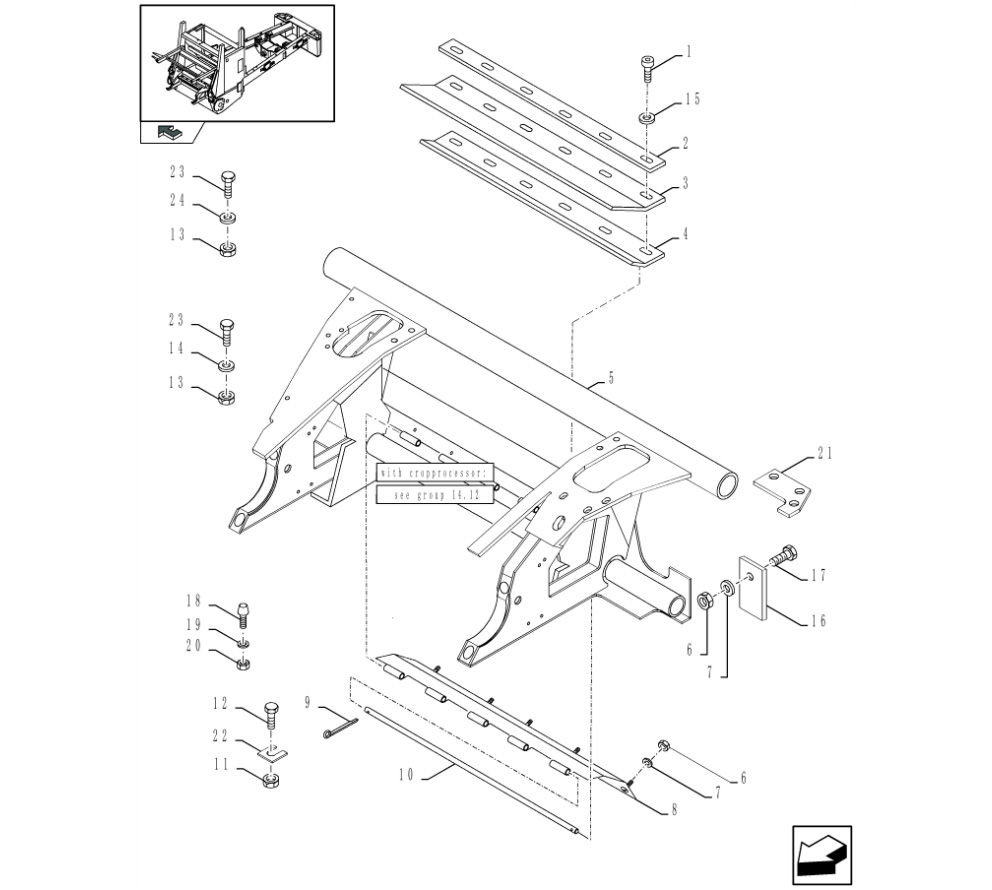

Diagram

Located in:

FX Series Parts / FX60 - (1/02-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
2	84000356 FIXING PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84000357 CANVAS for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84432292 CANVAS for FX28/30/38/40/48/50/58/60 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84012252 COVER PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84432299 PLATE for FX28/30/38/40/48/50/58/60 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84439658 FRAME for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84989047 FRAME for FX28/30/38/40/48/50/58/60 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 7) In Stock Shipping Costs...	Call Ex VAT	1
8	84005175 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	130006 COTTER PIN,M4 x 20 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	84005186 ROD for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	86000441 NUT,M16 x 2, Cl 8 for all New Holland FX Forager Harvesters models FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 4) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	5
14	333040 WASHER,M16.5 x 49 x 0.3 Thk, HDN for FX28/30/38/40/48/50/58/60 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	378243 WASHER,M8 - this part has been superceded by 63707 (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
15	63707 WASHER,M8 (pack of 10) (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
15	86625263 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
16	84069989 ADJUSTING PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	190029 RUBBER BUMPER - this part has been superceded by 84440416 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84440416 INSULATOR BLOCK - this part has been superceded by 84440416 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
20	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
21	84432298 SHIM for FX28/30/38/40/48/50/58/60 FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84038752 ADJUSTING PLATE for FX28/30/38/40/48/50/58/60 THK.: 0.5 MM,FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	86508586 BOLT,Hex, M16 x 240, 8.8 for all New Holland FX Forager Harvesters models FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	87325229 WASHER for FX30/40/50/60 , Start Serial: D415,FOR NA ONLY OR FOR CROP PRO PLUS™ (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
