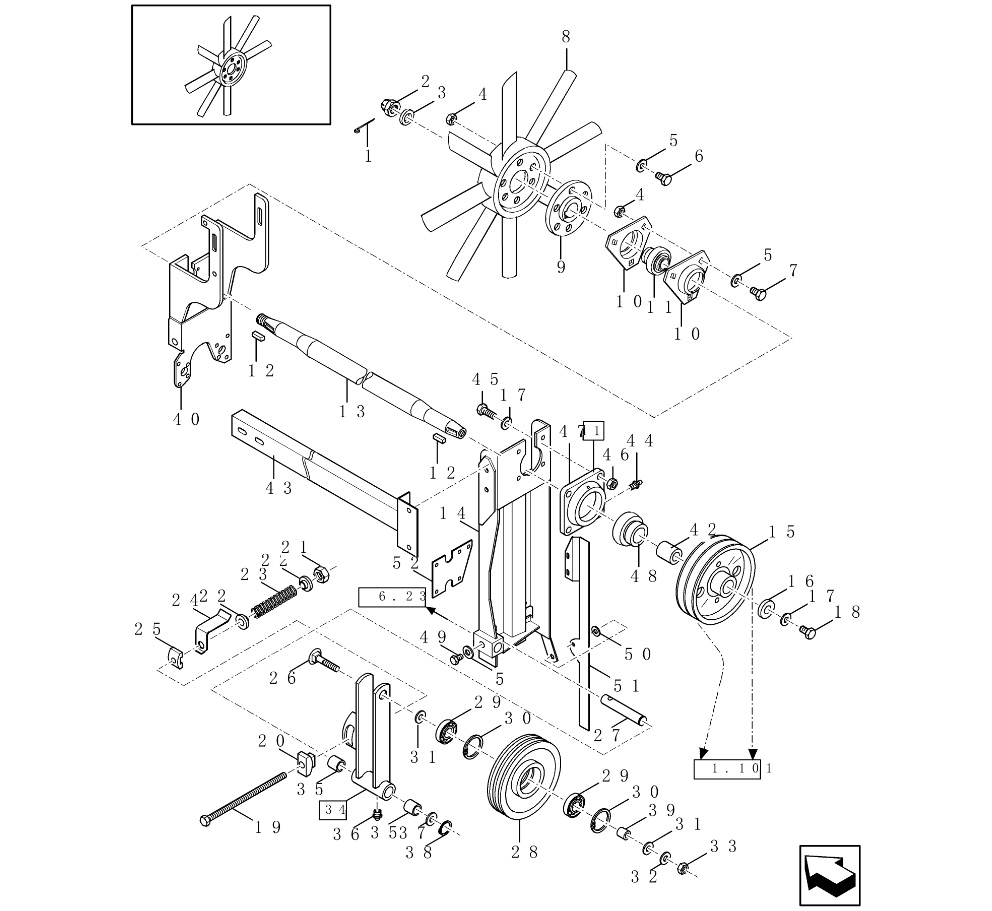

FX58 - (9/98-) Engine

Key

Ref	Description
1	COTTER PIN,M4 x 40 (pack of 10)
1	COTTER PIN,M4 x 40
2	SLOTTED NUT,M20 x 1.5, Cl 8
3	WASHER
4	NUT,M10, Cl 8
5	BELLEVILLE WASHER,M10
6	BOLT,Hex, M10 x 40, 8.8, Full Thd
7	CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd
8	FAN
9	FLANGE
9	FLANGE
10	FLANGE
10	HALF-FLANGE
11	BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm
11	BEARING, BALL
12	KEY,M8 x 7 x 40, Par
13	SHAFT
13	SHAFT
14	SUPPORT
14	SUPPORT
15	PULLEY
15	PULLEY
16	WASHER,M13 x 38 x 6 Thk
17	BELLEVILLE WASHER,Belleville, M12
18	BOLT,Hex, M12 x 35, 8.8, Full Thd
19	BOLT,Hex, M10 x 250, 8.8, Full Thd
20	GUIDE
21	LOCK NUT
21	NUT
22	BUSHING
23	SPRING
24	INDICATOR
24	INDICATOR
25	GUIDE
26	BOLT,Hex, M16 x 80, 8.8
27	PIN
28	PULLEY
28	PULLEY
29	BALL BEARING
29	BALL BEARING,25 mm ID x 52 mm OD x 15 mm
30	CIRCLIP,M52, Int
30	CIRCLIP,M52, Int
31	WASHER,M16
32	BELLEVILLE WASHER,M16
33	NUT,M16, Cl 8
34	ARM
34	ARM
35	BUSHING
36	LUBE NIPPLE,M6 x 1, 16mm lg
37	WASHER,M26 x 38 x 1 Thk
38	CIRCLIP,M25, Ext
39	HUB
40	SUPPORT
40	SUPPORT
41	BEARING ASSY
42	SPACER
42	BUSHING
43	PROFILE
43	PROFILE
44	LUBE NIPPLE
45	BOLT,Hex, M12 x 40, 8.8, Full Thd
46	NUT,M12, Cl 8
47	BEARING HOUSING
47	BEARING HOUSING
48	BEARING ASSY
48	BALL BEARING
49	BOLT,Hex, M10 x 30, 8.8, Full Thd
50	WASHER,M10 x 34 x 3
51	U-BRACKET
51	U-BRACKET
52	ADJUSTING PLATE

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	10733901 COTTER PIN,M4 x 40 (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	300595 COTTER PIN,M4 x 40 - this part has been superceded by 10733901 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	412144 SLOTTED NUT,M20 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9506874 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	10
5	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
6	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	86512446 CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	5
8	84012323 FAN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84017258 FLANGE - this part has been superceded by 84806885 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84806885 FLANGE for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	86548970 FLANGE - this part has been superceded by 84320112 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84320112 HALF-FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84069440 BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm - this part has been superceded by 87044350 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	87044350 BEARING, BALL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	170008 KEY,M8 x 7 x 40, Par for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
13	84069235 SHAFT - this part has been superceded by 84437102 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84437102 SHAFT for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84077869 SUPPORT - this part has been superceded by 84437148 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84437148 SUPPORT for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84045158 PULLEY - this part has been superceded by 84806887 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84806887 PULLEY for FX30/40/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	140085 WASHER,M13 x 38 x 6 Thk for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	10
18	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
19	84077701 BOLT,Hex, M10 x 250, 8.8, Full Thd for FX58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	754131 GUIDE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	190003888452 LOCK NUT - this part has been superceded by 190003888452 M10 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	86514720 NUT - this part has been superceded by 190003888452 M10 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	84076699 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	66317 SPRING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84076687 INDICATOR for FX58 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84439578 INDICATOR for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	442398 GUIDE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	120093 BOLT,Hex, M16 x 80, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84077726 PIN for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84075002 PULLEY - this part has been superceded by 84437137 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84437137 PULLEY for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84188095 BALL BEARING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	443898 BALL BEARING,25 mm ID x 52 mm OD x 15 mm (this part has been superseded) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	370011 CIRCLIP,M52, Int - this part has been superceded by 33915 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	33915 CIRCLIP,M52, Int (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
31	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
32	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
33	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
34	84077833 ARM - this part has been superceded by 84437149 (35), Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84437149 ARM for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	382975 BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
37	140103 WASHER,M26 x 38 x 1 Thk - this part has been superceded by 140229 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	370002 CIRCLIP,M25, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
39	84017221 HUB for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	84061719 SUPPORT - this part has been superceded by 84437134 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	84437134 SUPPORT for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	84069409 BEARING ASSY - this part has been superceded by 84437150 (47,48) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	84069372 SPACER for FX58 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	84434138 BUSHING for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
43	84069346 PROFILE - this part has been superceded by 84437136 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
43	84437136 PROFILE for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	86629541 BOLT,Hex, M12 x 40, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	5
46	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
47	84069244 BEARING HOUSING - this part has been superceded by 84437150 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	84437150 BEARING HOUSING for FX28/30/38/40/48/50/58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
48	84069410 BEARING ASSY - this part has been superceded by 756965 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
48	756965 BALL BEARING - this part has been superceded by 756965 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
49	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
50	140042 WASHER,M10 x 34 x 3 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	5
51	84334758 U-BRACKET - this part has been superceded by 84437151 , Serial Range: -C217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
51	84437151 U-BRACKET for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
52	84439390 ADJUSTING PLATE for FX58/60 , Start Serial: D218 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
