FX58 - (9/98-) Electrical System

Key

Ref	Description
1	NUT,M4, Cl 8
1	NUT,M4, Cl 8 (pack of 25)
1	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
2	BELLEVILLE WASHER,Belleville, M4
2	BELLEVILLE WASHER,M8
3	POWER SOCKET,7 Pin
3	POWER SOCKET,7 Pin
3	POWER SOCKET
3	POWER SOCKET
4	SCREW,Cross Pan Hd, M4 x 40 (pack of 10)
4	SCREW,Cross Pan Hd, M4 x 40
4	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
5	WASHER,M4
5	WASHER,M4
6	SCREW,Cross Pan Hd, M4 x 30
6	SCREW,Cross Pan Hd, M4 x 30
6	SCREW
6	SCREW (pack of 5)
7	REVERSING LAMP ASSY
8	BULB
8	BULB (pack of 2)
9	COVER
10	SEAL
11	HYD CONNECTOR
12	PLUG
13	PLUG
14	HOUSING
15	PLUG
16	BELLEVILLE WASHER,Belleville, M4
17	WIRE HARNESS
17	WIRE HARNESS
18	WIRE HARNESS
18	WIRE HARNESS
19	SCREW,Cross Pan Hd, M6 x 20
20	WASHER,M6
20	WASHER,M6
21	BUSHING
23	BELLEVILLE WASHER,M8
24	SUPPORT
25	WASHER
26	PIN
26	PIN
27	PIN
28	SUPPORTING ARM
28	SUPPORTING ARM
29	BULB
29	BULB (pack of 2)
30	BULB,12V, 21W (pack of 2)
30	BULB,12V, 21W
31	TAIL LAMP
32	REFLECTOR
33	REFLECTOR
34	SPRING
35	SCREW
36	GROMMET
37	BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN
38	NUT,M5, Cl 8 (pack of 5)
38	NUT,M5, Cl 8
39	BUSHING
40	BUSHING
41	SCREW
42	WASHER,M4 x 15 x 2 Thk
43	COVER PLATE
44	WIRE HARNESS
45	GROMMET
22	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

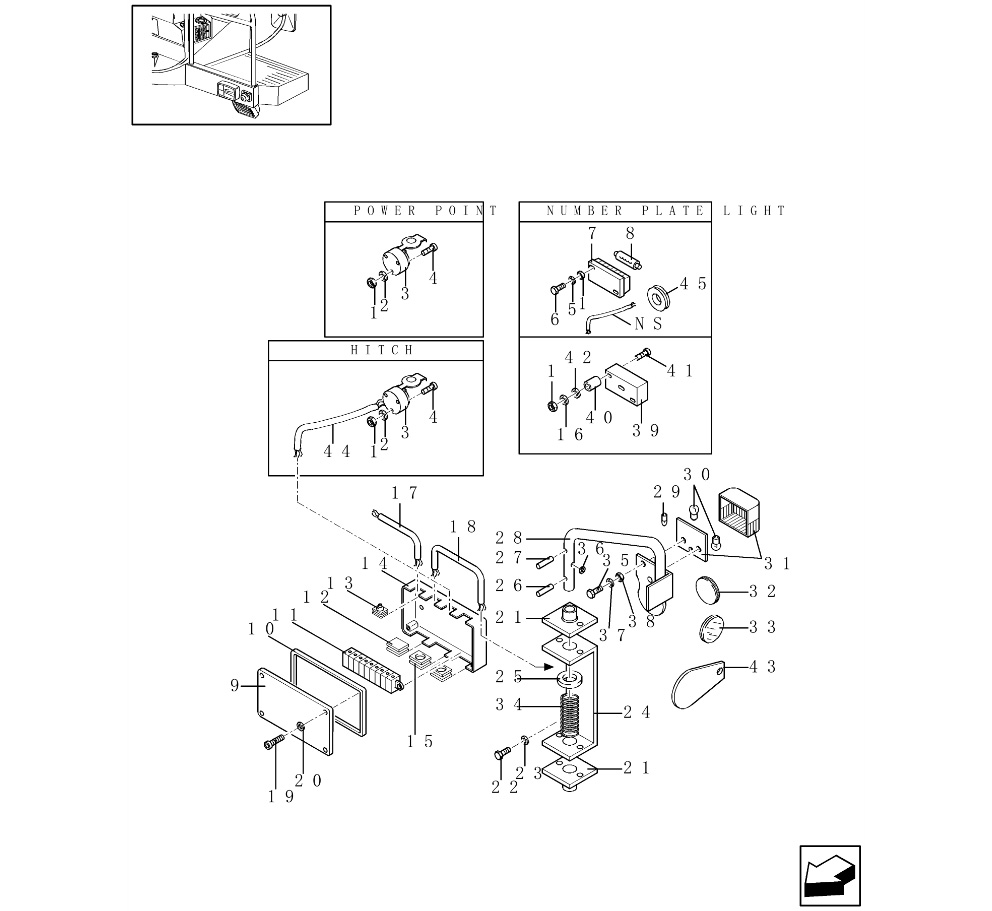

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	57121 NUT,M4, Cl 8 (pack of 25) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
1	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 FOR NA ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
2	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models FOR NA ONLY (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
3	83959716 POWER SOCKET,7 Pin (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	398224 POWER SOCKET,7 Pin - this part has been superceded by 83959716 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	265927 POWER SOCKET - this part has been superceded by 9603575 FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9603575 POWER SOCKET for FX28/30/38/40/48/50/58/60 FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86585707 SCREW,Cross Pan Hd, M4 x 40 (pack of 10) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	412658 SCREW,Cross Pan Hd, M4 x 40 - this part has been superceded by 86585707 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models FOR NA ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
5	140013 WASHER,M4 - this part has been superceded by 89824840 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89824840 WASHER,M4 for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	86511825 SCREW,Cross Pan Hd, M4 x 30 for FX28/300/375/38/450/48/58 , Serial Range: -C085 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	120202 SCREW,Cross Pan Hd, M4 x 30 - this part has been superceded by 86511825 , Serial Range: -C085 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84074277 SCREW - this part has been superceded by 86050228 M4x55, Start Serial: D086 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	86050228 SCREW (pack of 5) M4x55, Start Serial: D086 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	445502 REVERSING LAMP ASSY for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	470017 BULB - this part has been superceded by 10863090 12V-5W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	10863090 BULB (pack of 2) 12V-5W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9506872 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9506873 SEAL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	433132 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9508323 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9504337 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9507881 HOUSING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9504343 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models 30 km/h KIT (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
17	84002955 WIRE HARNESS - this part has been superceded by 84446578 LH,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84035446 WIRE HARNESS for FX28/30/38/40/48/50/58/60 LH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84002956 WIRE HARNESS - this part has been superceded by 84446580 RH,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84035447 WIRE HARNESS for FX28/30/38/40/48/50/58/60 RH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86511830 SCREW,Cross Pan Hd, M6 x 20 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	9824259 WASHER,M6 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
20	140015 WASHER,M6 - this part has been superceded by 9824259 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	921928 BUSHING for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	1
24	9814947 SUPPORT for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	378248 WASHER for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	84022829 PIN - this part has been superceded by 412689 NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	412689 PIN NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	9503523 PIN - this part has been superceded by 412660 NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84042647 SUPPORTING ARM for FX28/30/38/40/48/50/58/60 LH,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84042648 SUPPORTING ARM - this part has been superceded by 84455205 RH,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	418870 BULB - this part has been superceded by 14149590 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	14149590 BULB (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	14148190 BULB,12V, 21W (pack of 2) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	398877 BULB,12V, 21W - this part has been superceded by 14148190 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84037090 TAIL LAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	437024 REFLECTOR for all New Holland FX Forager Harvesters models Red (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	435895 REFLECTOR for all New Holland FX Forager Harvesters models Yellow (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	435967 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	120010 SCREW for all New Holland FX Forager Harvesters models M4x16 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
36	411809 GROMMET for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	322356 BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
38	10788811 NUT,M5, Cl 8 (pack of 5) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	86508813 NUT,M5, Cl 8 - this part has been superceded by 10788811 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	84039003 BUSHING for all New Holland FX Forager Harvesters models 30 km/h KIT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	441370 BUSHING for all New Holland FX Forager Harvesters models 30 km/h KIT (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	412473 SCREW for all New Holland FX Forager Harvesters models 30 km/h KIT (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	335872 WASHER,M4 x 15 x 2 Thk for all New Holland FX Forager Harvesters models 30 km/h KIT (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
43	84019112 COVER PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	84061106 WIRE HARNESS for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	399986 GROMMET for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
