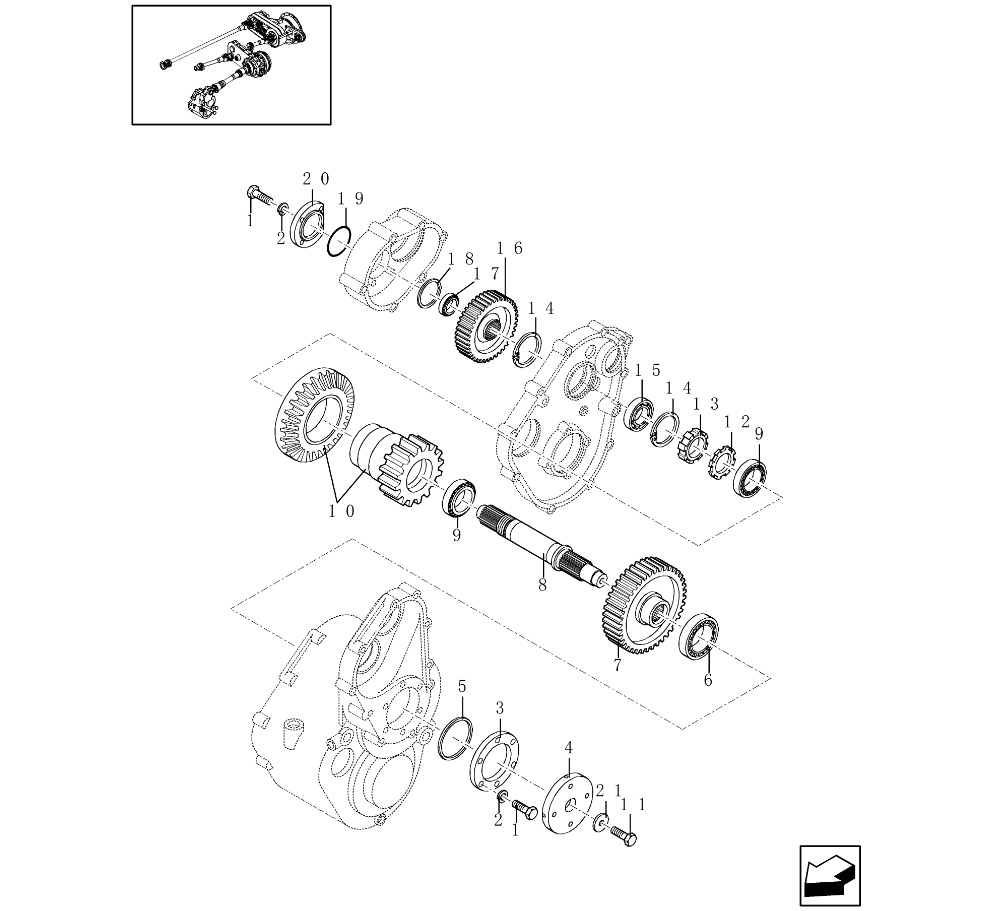

FX58 - (9/98-) Drive Line

Key

Ref	Description
1	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
2	WASHER,M8 x 16 x 1.6
2	WASHER,M8 x 16 x 1.6 (pack of 5)
3	COVER
4	DISC
5	ADJUSTING PLATE
6	BEARING ASSY
7	GEAR
8	SPINDLE
9	BEARING ASSY
9	TAPERED ROLLER BEARING
10	GEAR SET
10	GEAR SET
10	GEAR SET
10	GEAR SET
11	BOLT,Hex, M10 x 30, 8.8, Full Thd
12	LOCK WASHER
12	LOCK WASHER
13	LOCK NUT
13	LOCK NUT
14	SNAP RING,M80, Int
15	BEARING ASSY
15	BEARING ASSY
16	GEAR
17	BEARING ASSY,30.00mm x 62.00mm x 17.25mm
17	BEARING ASSY
18	ADJUSTING PLATE
19	O-RING,62mm ID x 2mm Width
20	COVER
21	WASHER

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	10
2	140016 WASHER,M8 x 16 x 1.6 - this part has been superceded by 86624184 (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	86624184 WASHER,M8 x 16 x 1.6 (pack of 5) (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	89833504 COVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84019878 DISC for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89833515 ADJUSTING PLATE for FX28/300/375/38/450/48/58 THK.:0.05MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
6	84021880 BEARING ASSY - this part has been superceded by 24903450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84005438 GEAR for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84056539 SPINDLE for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84021879 BEARING ASSY - this part has been superceded by 84438713 , Serial Range: -C155 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84438713 TAPERED ROLLER BEARING for all New Holland FX Forager Harvesters models , Start Serial: D156 (Job Qty: 2) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
10	84045207 GEAR SET - this part has been superceded by 84068745 , Serial Range: -C127,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84045207 GEAR SET - this part has been superceded by 84068745 , Serial Range: -C090,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84068745 GEAR SET for FX28/38/48/58 , Start Serial: D091,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84068745 GEAR SET for FX28/38/48/58 , Start Serial: D128,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
12	80410880 LOCK WASHER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	410880 LOCK WASHER - this part has been superceded by 80410880 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	410475 LOCK NUT - this part has been superceded by 9615771 M45x1.5 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9615771 LOCK NUT M45x1.5 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	300633 SNAP RING,M80, Int for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
15	82848311 BEARING ASSY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84062059 BEARING ASSY - this part has been superceded by 82848311 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84056538 GEAR for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	309085 BEARING ASSY,30.00mm x 62.00mm x 17.25mm - this part has been superceded by 87280575 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	87280575 BEARING ASSY - this part has been superceded by 87280575 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	89833516 ADJUSTING PLATE for FX28/300/375/38/450/48/58 THK.:0.05MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
19	84021868 O-RING,62mm ID x 2mm Width for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
20	89833522 COVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84032695 WASHER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
