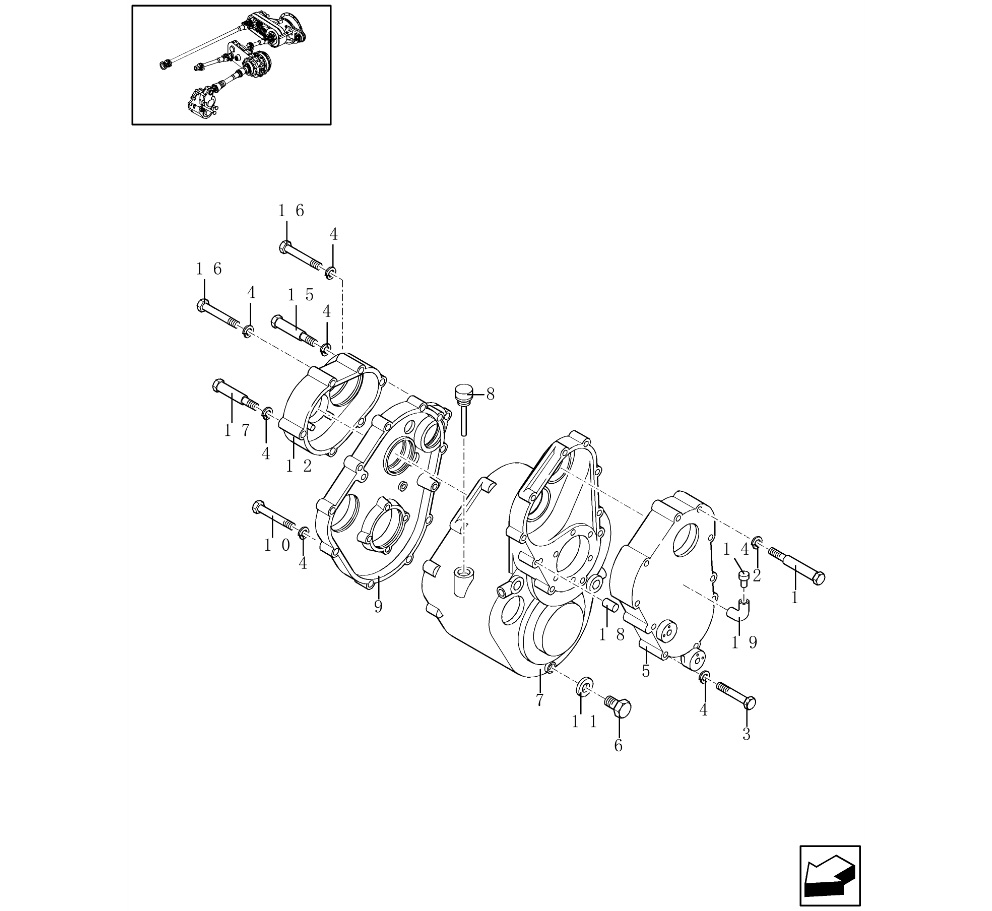

FX58 - (9/98-) Drive Line

Key

Ref	Description
	GEARBOX
	GEARBOX
	GEARBOX
	GEARBOX
1	BOLT
2	LOCK WASHER,M12 x 21 x 2.6 Thk
3	BOLT,Hex, M10 x 85, 8.8
4	WASHER,M10.5 x 24 x 0.2, HT
5	HOUSING
6	PLUG
7	HOUSING
8	INDICATOR
9	COVER
10	BOLT,Hex, M10 x 50, 8.8
11	SEAL
12	HOUSING
13	LOCK WASHER
14	BREATHER
15	BOLT,Hex, M10 x 90, 8.8
16	BOLT,Hex, M10 x 100, 8.8
18	DOWEL
18	DOWEL
19	ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male
19	ELBOW
17	BOLT,Hex, M10 x 70, 8.8

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84056918 GEARBOX - this part has been superceded by 84074912 Incl.figs. 2.25 to 2.29, Serial Range: -C127,NOT FOR NA,Incl.figs. 2.25 to 2.29, Serial Range: -C090,FOR NA ONLY,Incl.figs. 2.25 to 2.29, Start Serial: D091,FOR NA ONLY,Incl.figs. 2.25 to 2.29, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	84056918 GEARBOX - this part has been superceded by 84074912 Incl.figs. 2.25 to 2.29, Serial Range: -C090,FOR NA ONLY,Incl.figs. 2.25 to 2.29, Start Serial: D091,FOR NA ONLY,Incl.figs. 2.25 to 2.29, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	84074912 GEARBOX for FX28/38/48/58 Incl.figs. 2.25 to 2.29, Start Serial: D091,FOR NA ONLY,Incl.figs. 2.25 to 2.29, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	84074912 GEARBOX for FX28/38/48/58 Incl.figs. 2.25 to 2.29, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	84021886 BOLT for FX28/300/375/38/450/48/58 M10x90 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	412123 LOCK WASHER,M12 x 21 x 2.6 Thk for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
3	84056952 BOLT,Hex, M10 x 85, 8.8 for FX28/300/375/38/450/48/58 M10x85 (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	394629 WASHER,M10.5 x 24 x 0.2, HT for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	84056903 HOUSING for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84037192 PLUG for FX28/300/375/38/450/48/58 Magnetic (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84056536 HOUSING for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84031833 INDICATOR for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84056537 COVER for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	120069 BOLT,Hex, M10 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
11	84011380 SEAL for FX28/300/375/38/450/48/58 SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	84056904 HOUSING for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	87880 LOCK WASHER for FX28/300/375/38/450/48/58 19MM (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
14	84068655 BREATHER for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	120074 BOLT,Hex, M10 x 90, 8.8 for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
16	120075 BOLT,Hex, M10 x 100, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	837-8020 DOWEL (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84022677 DOWEL - this part has been superceded by 837-8020 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	217-20 ELBOW,90º, 1/8"-27 Female x 1/8"-27 Male (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86511898 ELBOW - this part has been superceded by 217-20 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	43144 BOLT,Hex, M10 x 70, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
