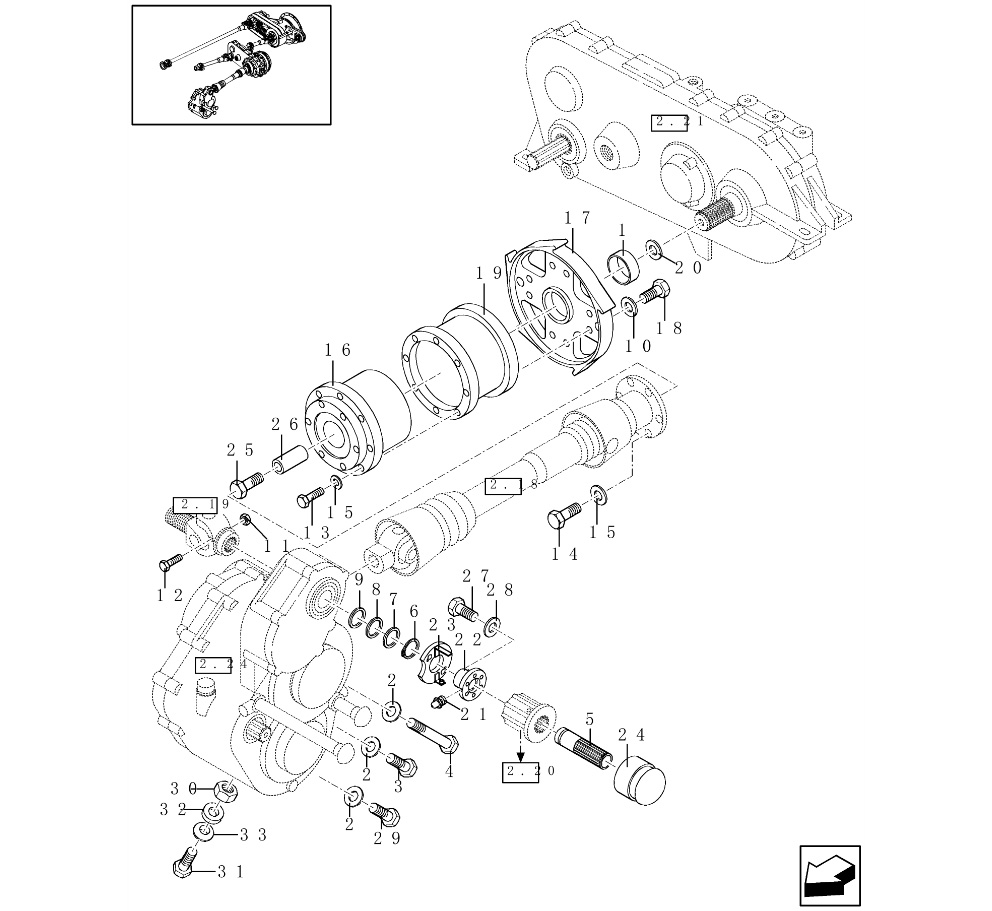

FX58 - (9/98-) Drive Line

Key

Ref	Description
1	BUSHING
2	WASHER,M17 x 34 x 4, HT
3	BOLT,Hex, M16 x 140, 8.8
3	BOLT,Hex, M16 x 150, 8.8
4	BOLT,Hex, M16 x 190, 8.8
5	SHAFT
5	SHAFT
6	SNAP RING,M35, Ext x 1.5 Thk
7	WASHER,M35 x 42 x 1 Thk
8	ADJUSTING PLATE
9	WASHER,.0299" Thk
10	WASHER,M13 x 28 x 4, HT
10	WASHER
11	NUT-M8 NYLOC
11	NUT,M8 x 1.25, Cl 8
12	BOLT,Hex, M8 x 70, 8.8
12	BOLT,Hex, M8 x 70, 8.8
13	BOLT,Hex, M12 x 40, 8.8, Full Thd
14	BOLT,Hex, M12 x 30, 8.8, Full Thd
15	BELLEVILLE WASHER,Belleville, M12
16	CLUTCH
17	RATCHET
18	BOLT,Hex, M12 x 35, 10.9, Full Thd
18	BOLT,Hex, M12 x 35, 10.9, Full Thd
19	HUB
20	RING
21	LUBE NIPPLE,M6 x 1, 16mm lg
22	HUB
23	PLATE
24	COVER
25	SCREW,Hex, M12 x 90, 8.8
26	BUSHING
27	SCREW
28	BELLEVILLE WASHER,M8
29	BOLT,Hex, M16 x 130, 8.8
29	SCREW
30	NUT,M16, Cl 8
31	SCREW,Hex, M16 x 90, 8.8, Full Thd
32	RING
33	WASHER

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84005391 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	394631 WASHER,M17 x 34 x 4, HT for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	10
3	334967 BOLT,Hex, M16 x 140, 8.8 for all New Holland FX Forager Harvesters models , Serial Range: -C213 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	362573 BOLT,Hex, M16 x 150, 8.8 for FX28/30/38/40/48/50/58/60 , Start Serial: D214 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86508585 BOLT,Hex, M16 x 190, 8.8 for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84032461 SHAFT for FX28/300/375/38/450/48/58 , Serial Range: -C151 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84320190 SHAFT for FX28/38/48/58 , Start Serial: D152 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	11068376 SNAP RING,M35, Ext x 1.5 Thk for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	140119 WASHER,M35 x 42 x 1 Thk for FX28/300/375/38/450/48/58 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	80922593 ADJUSTING PLATE for FX28/300/375/38/450/48/58 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
9	58630 WASHER,.0299" Thk for FX28/300/375/38/450/48/58 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	394630 WASHER,M13 x 28 x 4, HT - this part has been superceded by 86625256 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	86625256 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	1
11	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
12	120062 BOLT,Hex, M8 x 70, 8.8 - this part has been superceded by 7120024 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	7120024 BOLT,Hex, M8 x 70, 8.8 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
13	86629541 BOLT,Hex, M12 x 40, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	5
14	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
15	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 14) In Stock Shipping Costs...	Call Ex VAT	10
16	84021378 CLUTCH for FX28/300/375/38/450/48/58 SUBPARTS NOT SERVICED (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84039377 RATCHET for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	379753 BOLT,Hex, M12 x 35, 10.9, Full Thd - this part has been superceded by 626-12035 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	626-12035 BOLT,Hex, M12 x 35, 10.9, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 8) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	1
19	84019941 HUB for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84032576 RING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
22	84032460 HUB for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84039428 PLATE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84039430 COVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	86508581 SCREW,Hex, M12 x 90, 8.8 for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
26	84038406 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84053582 SCREW for FX28/300/375/38/450/48/58 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
28	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	1
29	354360 BOLT,Hex, M16 x 130, 8.8 - this part has been superceded by 190003800784 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	190003800784 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
31	412587 SCREW,Hex, M16 x 90, 8.8, Full Thd for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	84053239 RING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
33	84053238 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
