FX58 - (9/98-) Drive Line

Key

Ref	Description
1	NUT,M20 x 1.5, Cl 8
2	NUT,M12, Cl 10
3	THREADED ROD
4	SHAFT
5	WASHER
6	SPRING
6	SPRING
7	BOLT,Hex, M12 x 80, 10.9
8	BELLEVILLE WASHER,Belleville, M12
9	LUBE NIPPLE,M6 x 1, 16mm lg
10	NUT,M12, Cl 10
11	WASHER
12	CIRCLIP,M20, Ext
13	RING
14	RING
15	BUSHING
16	SCREW,Hex, M12 x 90, 8.8
17	SUPPORT
18	BUSHING
19	BUSHING
20	SUPPORT
21	PIN
22	BELLEVILLE WASHER,M8
24	PIN
25	CIRCLIP,M30, Int
26	LUBE NIPPLE,M6 x 1, 16mm lg
27	PAWL
28	GUIDE
28	GUIDE
29	BOLT,Hex, M10 x 40, 8.8
30	WASHER
30	WASHER,M13 x 28 x 4, HT
31	SPRING
32	SHAFT
33	LUBE NIPPLE
34	LOCKING PLATE
34	LOCKING PLATE
35	NUT,M6 x 1, Cl 8
35	NUT
36	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2)
36	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND
36	BOLT
36	SCREW
37	NUT,M12 x 1.75, Cl 8
23	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

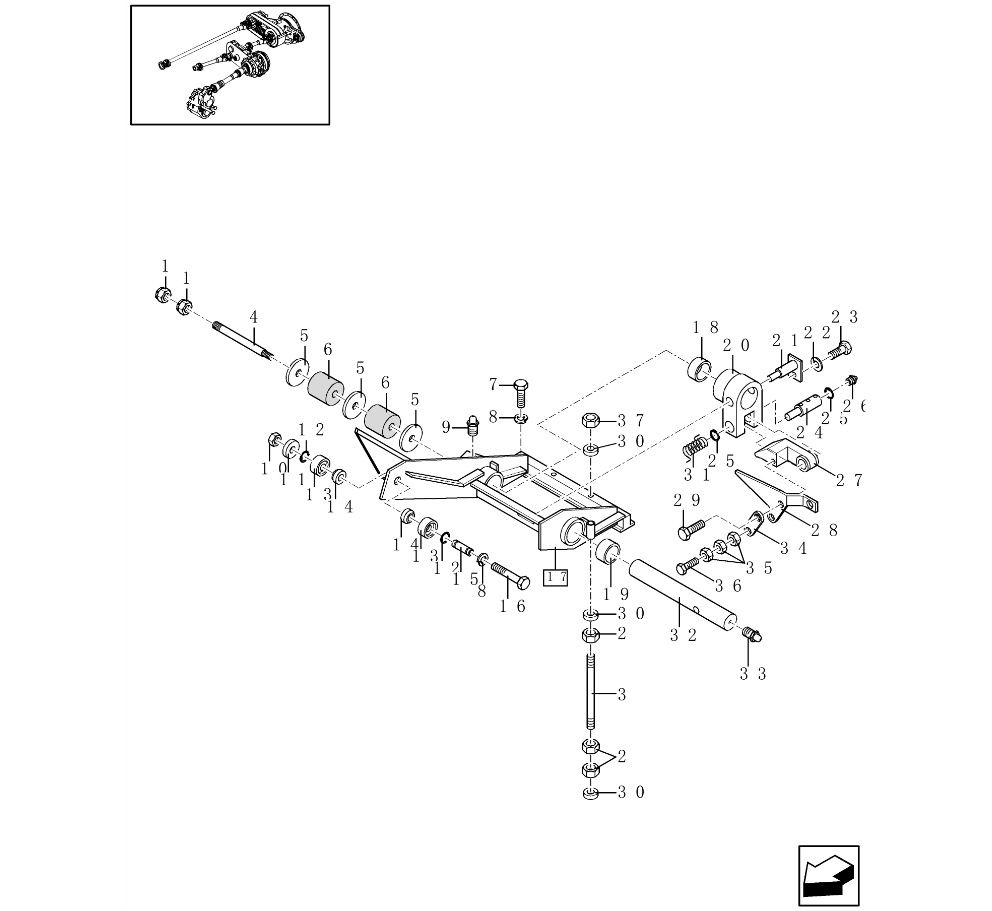

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	100085 NUT,M20 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	337475 NUT,M12, Cl 10 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	84039467 THREADED ROD for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84039376 SHAFT for FX28/300/375/38/450/48/58 M20 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84018062 WASHER for FX28/300/375/38/450/48/58 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	80612764 SPRING (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	612764 SPRING - this part has been superceded by 80612764 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	412085 BOLT,Hex, M12 x 80, 10.9 for FX28/38/48/58 (Job Qty: 3) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	2
8	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
9	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
10	337475 NUT,M12, Cl 10 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
11	80748068 WASHER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	370024 CIRCLIP,M20, Ext for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
13	84023168 RING for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84023169 RING for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84023167 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	86508581 SCREW,Hex, M12 x 90, 8.8 for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
17	84429903 SUPPORT for FX28/38/48/58 (18, 19) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84007329 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84007330 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84023310 SUPPORT for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84023333 PIN for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
24	84026851 PIN for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	301644 CIRCLIP,M30, Int for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
27	84041108 PAWL for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84036821 GUIDE for FX28/300/375/38/450/48/58 , Serial Range: -C127 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84071117 GUIDE for FX28/38/48/58 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84039516 BOLT,Hex, M10 x 40, 8.8 for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
30	86625256 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	1
30	394630 WASHER,M13 x 28 x 4, HT - this part has been superceded by 86625256 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84036950 SPRING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	84037316 SHAFT for FX28/300/375/38/450/48/58 M20 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	323713 LUBE NIPPLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
34	84038821 LOCKING PLATE for FX28/300/375/38/450/48/58 , Serial Range: -C127 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84071076 LOCKING PLATE for FX28/38/48/58 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models , Serial Range: -C127 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
35	89837227 NUT for FX28/300/375/38/450/48/58 , Start Serial: D128 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
36	87317695 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2) , Serial Range: -C127 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	43117 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND - this part has been superceded by 87317695 , Serial Range: -C127 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	412160 BOLT for FX28/300/375/38/450/48/58 M10x30, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	80412160 SCREW - this part has been superceded by 412160 M10x30, Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	100038 NUT,M12 x 1.75, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
