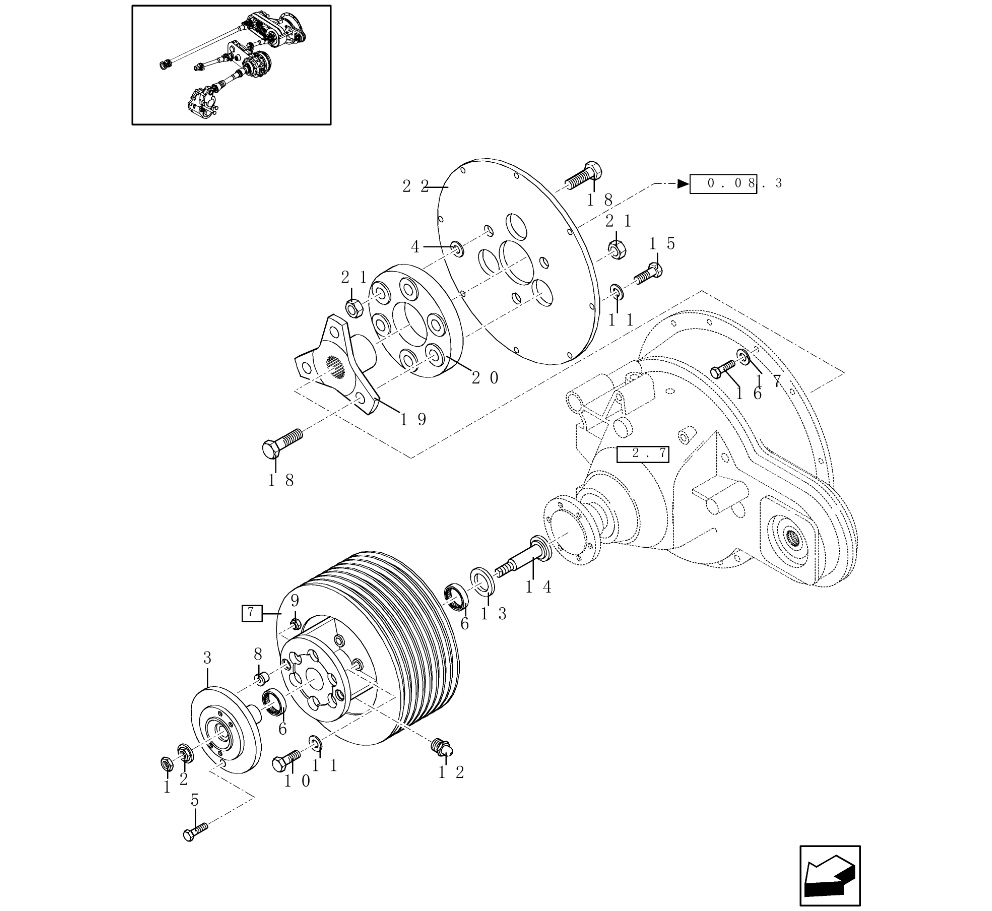

FX58 - (9/98-) Drive Line

Key

Ref	Description
1	NUT
1	THIN NUT,Thin, M16 x 1.5, Cl 04
2	NUT
3	FLANGE
4	WASHER
4	WASHER
5	SCREW
6	NEEDLE BEARING
6	BEARING, NEEDLE
7	PULLEY
7	PULLEY
8	BUSHING
8	BUSHING
8	BUSHING
9	NUT M6 HEX
9	NUT,M6, Cl 10
10	BOLT,Hex, M12 x 40, 8.8, Full Thd
11	BELLEVILLE WASHER,Belleville, M12
12	LUBE NIPPLE,M6 x 1, 16mm lg
13	WASHER,M41 x 60 x 1.52, HDN
14	SHAFT
15	BOLT,Hex, M12 x 1.25 x 30, 8.8, Full Thd
15	BOLT,Hex, M12 x 1.25 x 30, 8.8, Full Thd
16	CARRIAGE BOLT,Short NK, M20 x 120, Cl8.8
16	CARRIAGE BOLT,Short NK, M20 x 120, Cl8.8
17	BELLEVILLE WASHER,M10
18	SCREW
18	BOLT,Hex, M24 x 2 x 80, 8.8
19	HUB
19	HUB
20	QUICK FEMALE COUPLING
20	QUICK FEMALE COUPLING
21	NUT
21	NUT,M24 x 2, Cl 8
22	PLATE
22	PLATE

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX58 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	10791411 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	364164 THIN NUT,Thin, M16 x 1.5, Cl 04 - this part has been superceded by 10791411 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84014953 NUT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84056604 FLANGE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84023555 WASHER for all New Holland FX Forager Harvesters models 22 MM,FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84061017 WASHER for FX28/30/38/40/48/50/58/60 24 MM,FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	80536887 SCREW for all New Holland FX Forager Harvesters models M6x40 - Shear (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
6	84015464 NEEDLE BEARING - this part has been superceded by 3057318R91 MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	3057318R91 BEARING, NEEDLE for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84043362 PULLEY for FX28/300/375/38/450/48/58 (6, 8) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84043361 PULLEY - this part has been superceded by 84446105 (6, 8), LOW SPEED,FOR FX28 NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84256692 BUSHING for all New Holland FX Forager Harvesters models , Serial Range: -C185 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84004370 BUSHING - this part has been superceded by 84256692 , Serial Range: -C185 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84434534 BUSHING for FX28/30/38/40/48/50/58/60 , Start Serial: D186 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
9	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	86629541 BOLT,Hex, M12 x 40, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	5
11	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 14) In Stock Shipping Costs...	Call Ex VAT	10
12	321204 LUBE NIPPLE,M6 x 1, 16mm lg for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
13	140061 WASHER,M41 x 60 x 1.52, HDN for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84012444 SHAFT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84021571 BOLT,Hex, M12 x 1.25 x 30, 8.8, Full Thd - this part has been superceded by 15540434 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	15540424 BOLT,Hex, M12 x 1.25 x 30, 8.8, Full Thd (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
16	412460 CARRIAGE BOLT,Short NK, M20 x 120, Cl8.8 - this part has been superceded by 80412460 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	80412460 CARRIAGE BOLT,Short NK, M20 x 120, Cl8.8 for FX28/300/375/38/450/48/58 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 12) In Stock Shipping Costs...	Call Ex VAT	25
18	89833397 SCREW for all New Holland FX Forager Harvesters models M22x75,FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	84061021 BOLT,Hex, M24 x 2 x 80, 8.8 for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	89514951 HUB - this part has been superceded by 9514951 FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84057909 HUB for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84023585 QUICK FEMALE COUPLING for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84057788 QUICK FEMALE COUPLING for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	89833396 NUT for all New Holland FX Forager Harvesters models M22,FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
21	300355 NUT,M24 x 2, Cl 8 for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	84023586 PLATE for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY,FOR IVECO-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84057912 PLATE for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR CAT-ENGINE ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
