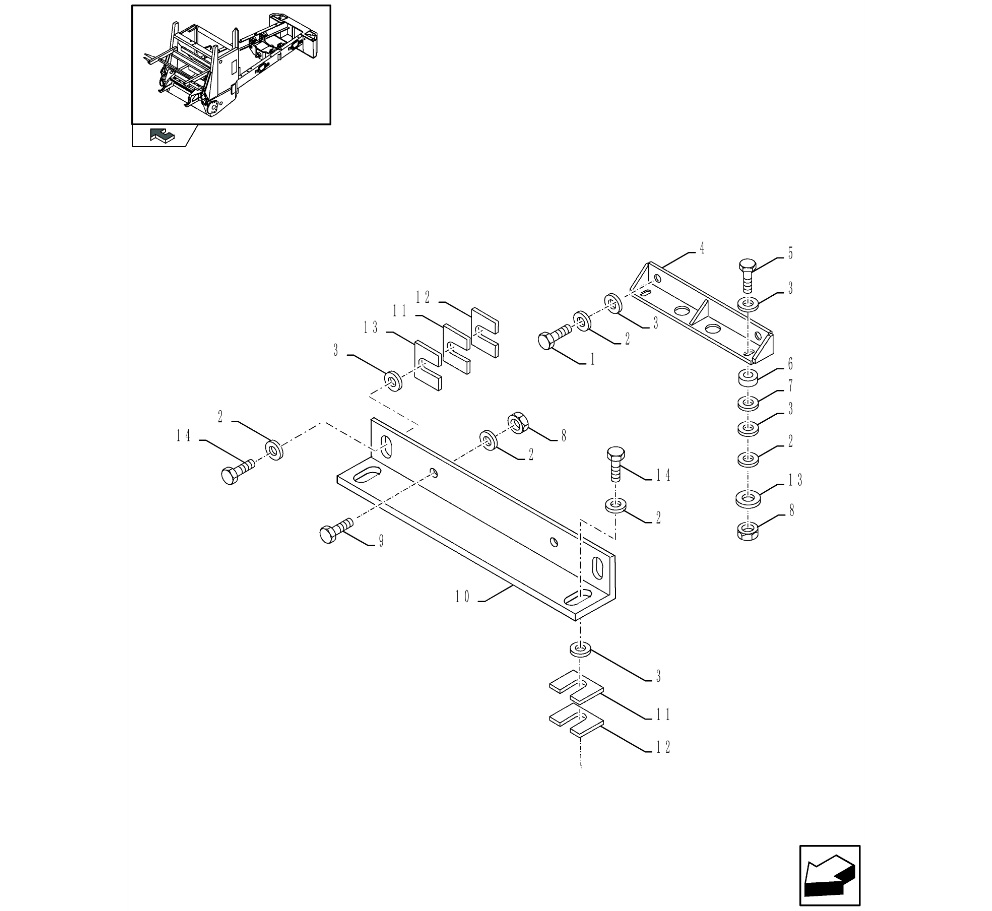

FX50 - (1/02-) Main Frame

Key

Ref	Description
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
2	BELLEVILLE WASHER,M16
3	WASHER,M17 x 40 x 5 Thk
4	SUPPORT
4	SUPPORT
5	BOLT,Hex, M16 x 80, 8.8
6	RING
7	WASHER
8	NUT,M16, Cl 8
9	SCREW,Hex, M16 x 60, 8.8
9	SCREW,Hex, M16 x 60, 8.8
10	ANGLE BAR
10	ANGLE BAR
11	SHIM,.060" Thk
12	SHIM,.036" Thk
13	SHIM
14	BOLT,Hex, M16 x 50, 8.8

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX50 - (1/02-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
1	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	325594 WASHER,M17 x 40 x 5 Thk for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
4	89812474 SUPPORT - this part has been superceded by 84437232 , Serial Range: -C291 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84437232 SUPPORT for FX30/40/50/60 , Start Serial: D292 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	120093 BOLT,Hex, M16 x 80, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	80456972 RING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	47407 WASHER for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	120091 SCREW,Hex, M16 x 60, 8.8 - this part has been superceded by 323866 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	323866 SCREW,Hex, M16 x 60, 8.8 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	89594631 ANGLE BAR - this part has been superceded by 84437233 , Serial Range: -C291 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84437233 ANGLE BAR for FX30/40/50/60 , Start Serial: D292 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	86900823 SHIM,.060" Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	66271 SHIM,.036" Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
13	84023895 SHIM for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
14	120090 BOLT,Hex, M16 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
				Add
