FX50 - (1/02-) Engine Equipment

Key

Ref	Description
1	TUBE,17.2 mm OD, 51 mm Length
2	ELBOW
3	HYD CONNECTOR
4	HOSE,15.70 mm ID x 4850.00 mm
5	HOSE,15.70 mm ID x 4400.00 mm
6	NOT SERVICED SEPARATELY
7	HOSE,19.00 mm ID x 1250.00 mm
8	NOT SERVICED SEPARATELY
9	HYD CONNECTOR
10	3 WAY CONNECTION
11	HOSE,15.70 mm ID x 680.00 mm
12	NOT SERVICED SEPARATELY
13	STRAP
14	CLAMP
15	BELLEVILLE WASHER,M8
16	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
17	HOSE CLAMP,#10, 0.50/1.38 Type F Worm
18	BELLEVILLE WASHER,M6
19	SCREW
20	NUT,M8, Cl 8
20	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
21	CLAMP
22	CLAMP

MalpasDirect - Replacement Tractors Parts

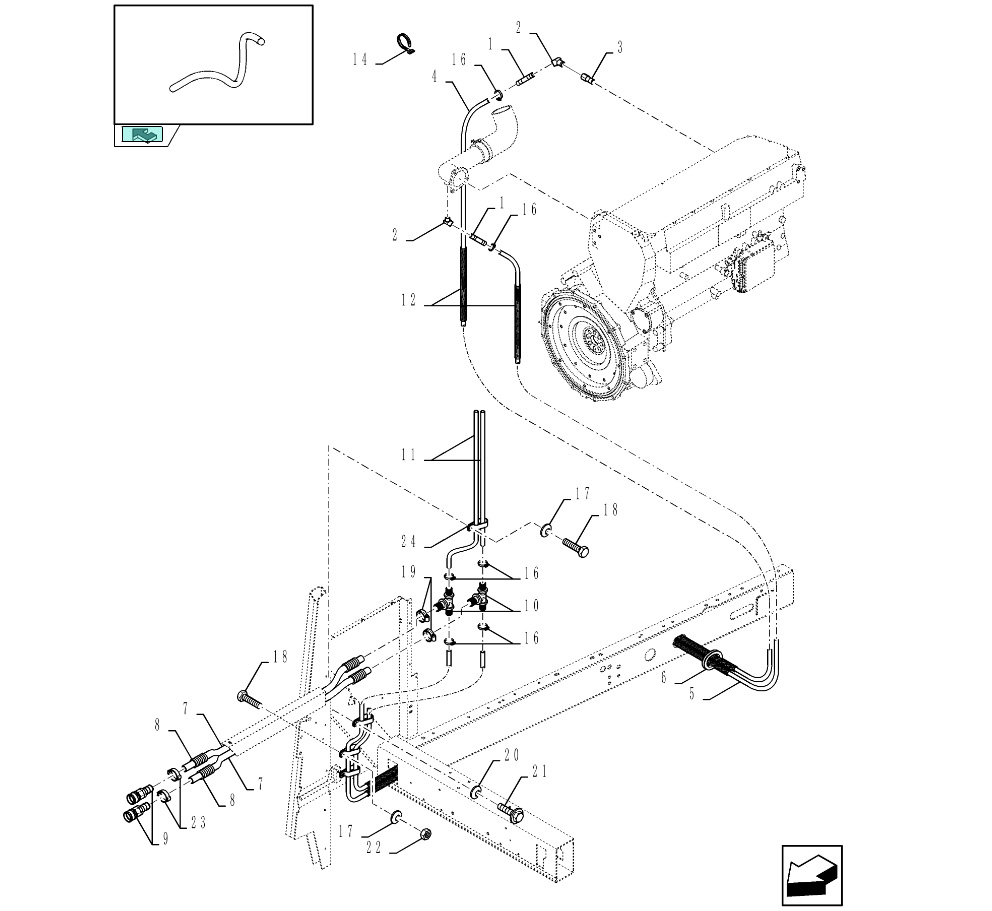

Diagram

Located in:

FX Series Parts / FX50 - (1/02-) / Engine Equipment /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84021074 TUBE,17.2 mm OD, 51 mm Length for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	353779S ELBOW for FX28/30/38/40/48/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	446806 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84434404 HOSE,15.70 mm ID x 4850.00 mm for FX28/30/38/40/48/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84434399 HOSE,15.70 mm ID x 4400.00 mm for FX28/30/38/40/48/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	NSS NOT SERVICED SEPARATELY PROTECTION, L= 0.23 M (Job Qty: AR)	-	-	-
7	84058174 HOSE,19.00 mm ID x 1250.00 mm for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	NSS NOT SERVICED SEPARATELY PROTECTION, L= 2.3 M (Job Qty: AR)	-	-	-
9	84607508 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84057136 3 WAY CONNECTION for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84043021 HOSE,15.70 mm ID x 680.00 mm - this part has been superceded by 84052958 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	NSS NOT SERVICED SEPARATELY PROTECTION, L= 7 M (Job Qty: AR)	-	-	-
13	84449335 STRAP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	326082 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
16	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
17	9706921 HOSE CLAMP,#10, 0.50/1.38 Type F Worm for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
18	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
19	80412357 SCREW for FX28/30/38/40/48/50/58/60 M6 x 25 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 , Serial Range: -C329 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 , Start Serial: D330 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84607087 CLAMP for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	9513271 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
