FX50 - (1/02-) Electrical System

Key

Ref	Description
1	ELEC CONNECTOR,Female, 2 Pole
1	ELEC CONNECTOR,Female, 2 Pole
1	WIRE CONNECTOR,3 Pole
1	WIRE CONNECTOR,4 Pole
2	TERMINAL
2	TERMINAL
2	TERMINAL,1 - 2.5 mm2
3	WIRE CONNECTOR,Male, 3 Pin
3	WIRE CONNECTOR,Male, 3 Pin
3	ELEC CONNECTOR
3	WIRE CONNECTOR,Male, 16 Pole
3	WIRE CONNECTOR,Male, 16 Pole
3	WIRE CONNECTOR,Male, 22 Pole
3	WIRE CONNECTOR,Male, 22 Pole
3	ELEC CONNECTOR
3	ELEC CONNECTOR
4	TERMINAL,1.5 - 4 mm2
4	TERMINAL
5	SPECIAL TOOL
6	SPECIAL TOOL
7	SPECIAL TOOL
8	WIRE CONNECTOR,Male, 2 Pole
8	ELEC CONNECTOR,3 Pole
8	WIRE CONNECTOR,4 Pole
9	TERMINAL,1 - 2.5 mm2
9	TERMINAL,0.5 - 1.5 mm2
10	WIRE CONNECTOR
10	WIRE CONNECTOR
10	ELEC CONNECTOR
10	WIRE CONNECTOR
10	WIRE CONNECTOR
10	WIRE CONNECTOR
10	WIRE CONNECTOR
10	WIRE CONNECTOR
10	ELEC CONNECTOR
10	ELEC CONNECTOR
11	TERMINAL
11	TERMINAL,5 - 8 mm2
11	TERMINAL,5 - 8 mm2
12	COLLAR
12	COLLAR
12	COLLAR
13	ELEC CONNECTOR
14	WIRE CONNECTOR
15	WIRE CONNECTOR
16	TERMINAL,0.5 - 1 mm2

MalpasDirect - Replacement Tractors Parts

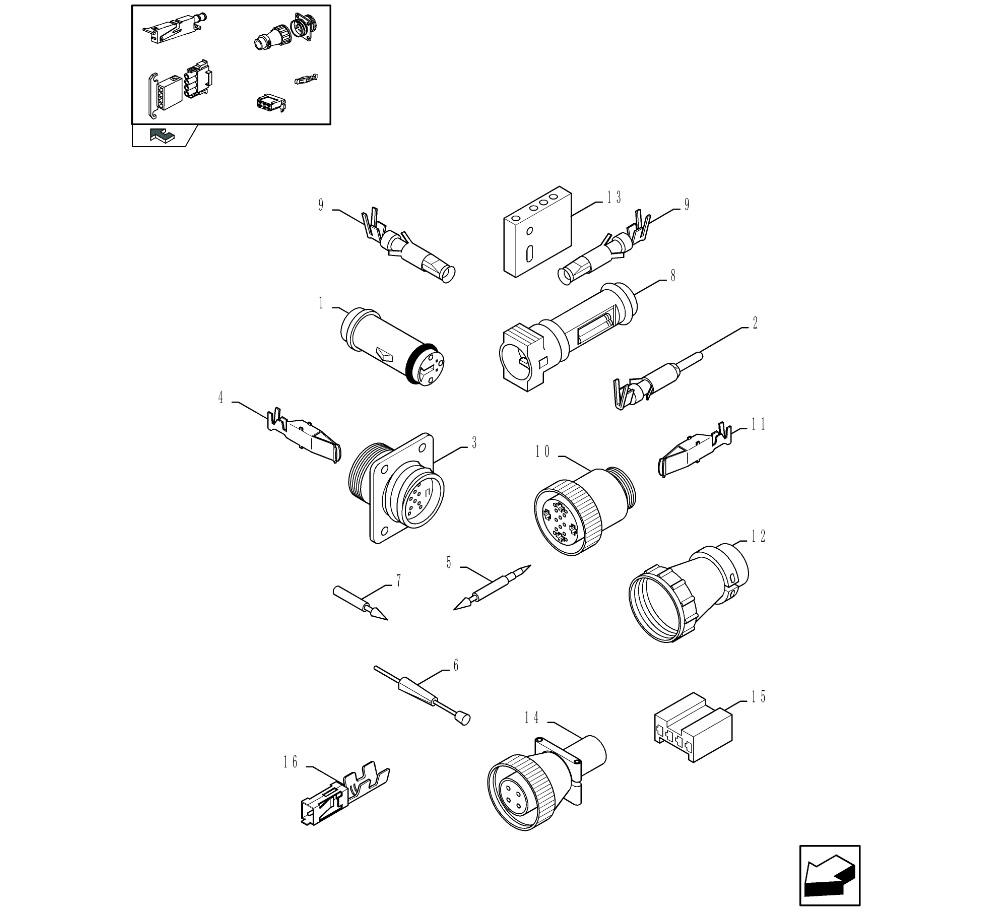

Diagram

Located in:

FX Series Parts / FX50 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	80916785 ELEC CONNECTOR,Female, 2 Pole for all New Holland FX Forager Harvesters models 2-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	916785 ELEC CONNECTOR,Female, 2 Pole - this part has been superceded by 80916785 2-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	9510662 WIRE CONNECTOR,3 Pole for all New Holland FX Forager Harvesters models 3-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	916790 WIRE CONNECTOR,4 Pole for all New Holland FX Forager Harvesters models 4-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	87695468 TERMINAL M 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9516242 TERMINAL - this part has been superceded by 87695468 M 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	445521 TERMINAL,1 - 2.5 mm2 for all New Holland FX Forager Harvesters models M 1-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	82015694 WIRE CONNECTOR,Male, 3 Pin 3-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	445746 WIRE CONNECTOR,Male, 3 Pin - this part has been superceded by 82015694 3-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9504366 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 7-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	87687234 WIRE CONNECTOR,Male, 16 Pole 16-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	447569 WIRE CONNECTOR,Male, 16 Pole - this part has been superceded by 87687234 16-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	87687231 WIRE CONNECTOR,Male, 22 Pole 22-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9818033 WIRE CONNECTOR,Male, 22 Pole - this part has been superceded by 87687231 22-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9504364 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 24-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9814978 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 37-BK-M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	445517 TERMINAL,1.5 - 4 mm2 for all New Holland FX Forager Harvesters models M 1.5-4 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	445520 TERMINAL for all New Holland FX Forager Harvesters models M 5-8 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	80916795 SPECIAL TOOL for all New Holland FX Forager Harvesters models Mounting (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
6	679968 SPECIAL TOOL for all New Holland FX Forager Harvesters models Dismounting (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	916794 SPECIAL TOOL for all New Holland FX Forager Harvesters models Mounting (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	916786 WIRE CONNECTOR,Male, 2 Pole for all New Holland FX Forager Harvesters models 2-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	9510663 ELEC CONNECTOR,3 Pole for all New Holland FX Forager Harvesters models 3-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	916791 WIRE CONNECTOR,4 Pole for all New Holland FX Forager Harvesters models 4-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	445522 TERMINAL,1 - 2.5 mm2 for all New Holland FX Forager Harvesters models F 1.5-2.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	9513123 TERMINAL,0.5 - 1.5 mm2 for all New Holland FX Forager Harvesters models F 0.5-1.5 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	80445745 WIRE CONNECTOR - this part has been superceded by 87675194 3-BF-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87675194 WIRE CONNECTOR 3-BF-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9504367 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 7-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9504361 WIRE CONNECTOR for all New Holland FX Forager Harvesters models 9-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87687246 WIRE CONNECTOR 16-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	445516 WIRE CONNECTOR - this part has been superceded by 87687246 16-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87687245 WIRE CONNECTOR 22-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9818031 WIRE CONNECTOR - this part has been superceded by 87687245 22-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9504362 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 24-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9814979 ELEC CONNECTOR - this part has been superceded by 9620124 37-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	445519 TERMINAL for all New Holland FX Forager Harvesters models F 1.5-4 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
11	445518 TERMINAL,5 - 8 mm2 - this part has been superceded by 87680653 F 5-8 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	87680653 TERMINAL,5 - 8 mm2 F 5-8 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	445525 COLLAR for all New Holland FX Forager Harvesters models 7 & 16 TO 37 POL. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9511904 COLLAR for all New Holland FX Forager Harvesters models 6 & 9 POL. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	80445526 COLLAR for all New Holland FX Forager Harvesters models 3 POL. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9504961 ELEC CONNECTOR for all New Holland FX Forager Harvesters models 4-BK-F (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84004080 WIRE CONNECTOR for all New Holland FX Forager Harvesters models 4 POL (Incl.term.) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84038471 WIRE CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84038470 TERMINAL,0.5 - 1 mm2 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
