FX50 - (1/02-) Electrical System

Key

Ref	Description
1	WIRE HARNESS
2	LAMP
2	LAMP
3	WINDSHIELD WIPER SWITCH
4	LAMP
4	LAMP
5	TOGGLE SWITCH
5	TOGGLE SWITCH
5	TOGGLE SWITCH
6	BULB
6	BULB
7	SET
8	WIRE HARNESS
9	HEADLAMP
10	BULB,H4, 12V, 60/55W
10	BULB
10	BULB,H4, 12V, 60/55W
11	CLIP
12	CLOCK
13	PLATE
14	MIRROR ADJUSTMENT SWITCH
15	MIRROR ADJUSTMENT SWITCH
16	PLUG
16	PLUG
16	SWITCH ASSY
17	SCREW
18	CLIP
19	ANTENNA
20	RELAY
20	SWITCH, REMOTE CONTROL
21	WASHER
22	SWITCH ASSY
23	WIRE HARNESS
24	CABLE,1840mm L

MalpasDirect - Replacement Tractors Parts

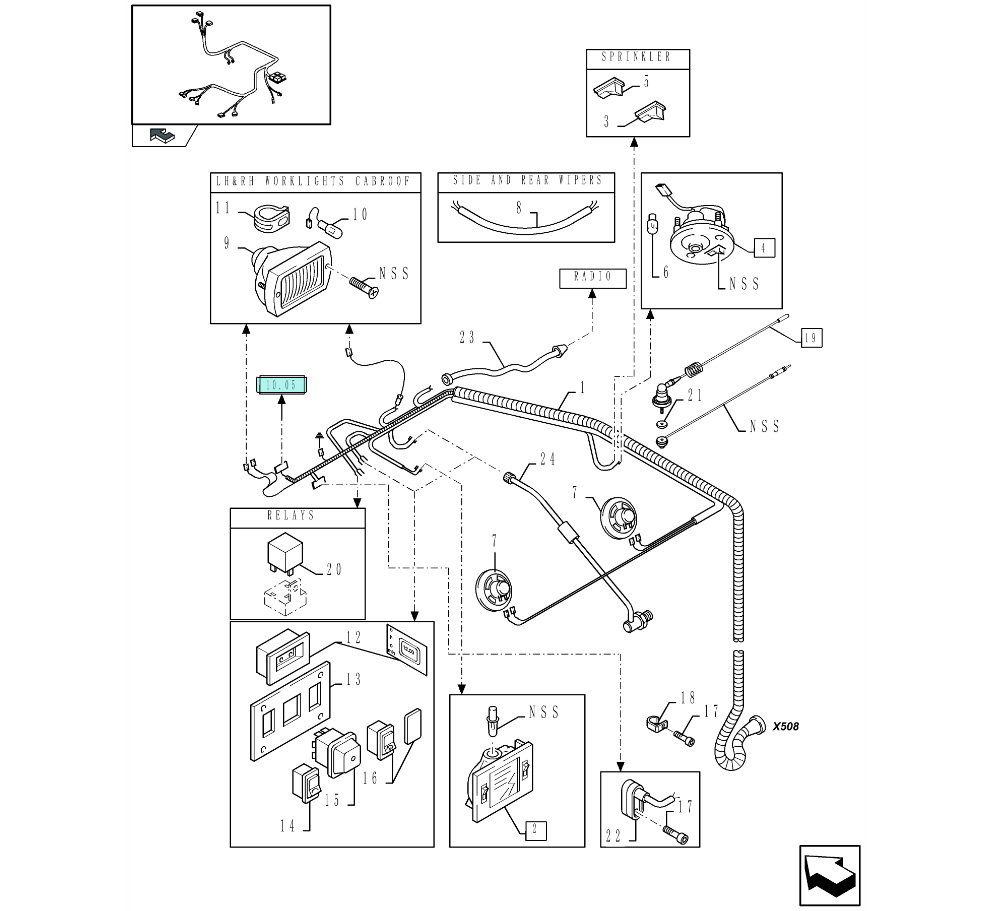

Diagram

Located in:

FX Series Parts / FX50 - (1/02-) / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84817687 WIRE HARNESS for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84818453 LAMP (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9504225 LAMP - this part has been superceded by 84818453 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84007080 WINDSHIELD WIPER SWITCH for all New Holland FX Forager Harvesters models Wiper (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9504222 LAMP - this part has been superceded by 84818452 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84818452 LAMP (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84037501 TOGGLE SWITCH for all New Holland FX Forager Harvesters models Sprinkler,front (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84037502 TOGGLE SWITCH for all New Holland FX Forager Harvesters models Sprinkler (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84037503 TOGGLE SWITCH for all New Holland FX Forager Harvesters models Sprinkler (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	353078 BULB - this part has been superceded by 14142390 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	14142390 BULB (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	9815968 SET for all New Holland FX Forager Harvesters models (Set of 2) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84035378 WIRE HARNESS for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9837139 HEADLAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87283179 BULB,H4, 12V, 60/55W - this part has been superceded by 14152090 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	14152090 BULB - this part has been superceded by 14152090 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	446592 BULB,H4, 12V, 60/55W - this part has been superceded by 14152090 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	9819712 CLIP for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84429897 CLOCK for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9812398 PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84037499 MIRROR ADJUSTMENT SWITCH for all New Holland FX Forager Harvesters models Mirror (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9501006 MIRROR ADJUSTMENT SWITCH for all New Holland FX Forager Harvesters models Mirror (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9504368 PLUG - this part has been superceded by 5151033 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	5151033 PLUG (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
16	84037500 SWITCH ASSY for all New Holland FX Forager Harvesters models Mirror,FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9835804 SCREW - this part has been superceded by 15690607 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	84005699 CLIP for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84026763 ANTENNA - this part has been superceded by 9846820 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84000651 RELAY - this part has been superceded by 86529089 MIRRORS + REAR WINDSHIELD HEATING,MAINTENANCE PART (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	86529089 SWITCH, REMOTE CONTROL for all New Holland FX Forager Harvesters models MIRRORS + REAR WINDSHIELD HEATING,MAINTENANCE PART (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84002421 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	83961521 SWITCH ASSY for all New Holland FX Forager Harvesters models Interior Lamp, Door (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84015251 WIRE HARNESS for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84017502 CABLE,1840mm L for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
				Add
