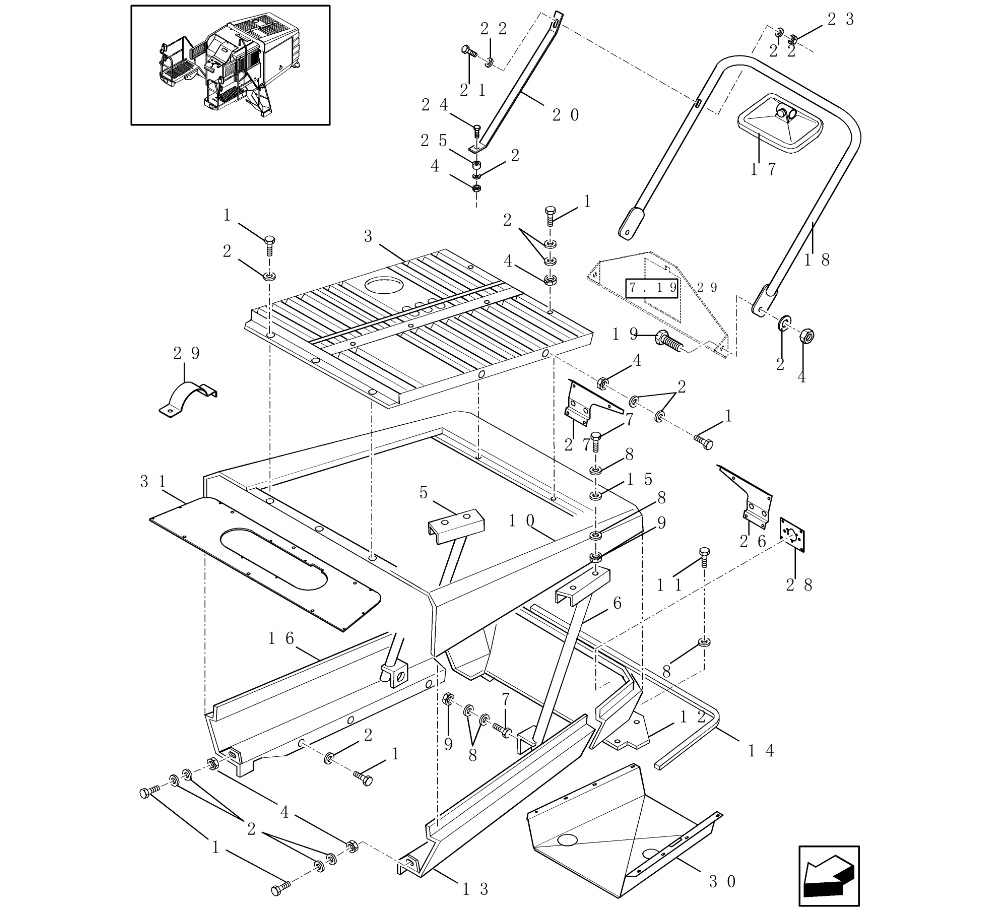

FX48 - (9/98-) Main Frame

Key

Ref	Description
1	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
2	BELLEVILLE WASHER,M8
3	COVER
3	GRILLE
3	GRILLE
3	GRILLE
4	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
5	SUPPORT
5	SUPPORT
5	SUPPORT
6	SUPPORT
6	SUPPORT
6	SUPPORT
7	BOLT,Hex, M10 x 30, 8.8, Full Thd
8	BELLEVILLE WASHER,M10
9	NUT,M10, Cl 8
10	COVER
10	COVER
10	COVER
10	PLATE
11	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
12	GUARD
12	GUARD
12	GUARD
12	GUARD
13	PROFILE
14	SEAL PROTECTION
15	WASHER,M10 x 24 x 2 Thk
16	PROFILE
17	REAR VIEW MIRROR
18	SUPPORT
20	SUPPORT
21	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2)
21	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND
22	BELLEVILLE WASHER,M10
23	NUT,M6 x 1, Cl 8
24	BOLT,Hex, M8 x 50, 8.8
25	BUSHING
26	PLATE
27	PLATE
28	PLATE
29	CLAMP
29	CLAMP
30	GUARD
30	GUARD
31	PLATE
19	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX48 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 21) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
2	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 33) In Stock Shipping Costs...	Call Ex VAT	1
3	84061378 COVER - this part is no longer serviced , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84432133 GRILLE for FX28/38/48/58 , Serial Range: -F174217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84432133 GRILLE for FX28/38/48/58 , Start Serial: D218,FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84076176 GRILLE for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89812796 SUPPORT for FX28/300/375/38/450/48/58 , Serial Range: -C217,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84434029 SUPPORT for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84052841 SUPPORT for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	89812797 SUPPORT for FX28/300/375/38/450/48/58 , Serial Range: -C217,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84434013 SUPPORT for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84052835 SUPPORT for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
8	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 20) In Stock Shipping Costs...	Call Ex VAT	25
9	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
10	84061302 COVER - this part has been superceded by 84432135 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84432135 COVER for FX28/38/48/58 , Serial Range: -F174217 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84432135 COVER for FX28/38/48/58 , Start Serial: D218,FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84073284 PLATE for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	84052953 GUARD for FX28/38/48/58 , Serial Range: -C217,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84434033 GUARD for FX28/30/38/40/48/50/58/60 , Start Serial: D218,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84052951 GUARD for FX28/38/48/58 , Serial Range: -C217,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84434034 GUARD for FX28/38/48/58 , Start Serial: D218,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84001904 PROFILE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84056062 SEAL PROTECTION for all New Holland FX Forager Harvesters models L= 6000 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
16	84001905 PROFILE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	437650 REAR VIEW MIRROR for all New Holland FX Forager Harvesters models FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	447006 SUPPORT for FX28/30/38/40/48/50/58/60 FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84989435 SUPPORT for FX28/30/38/40/48/50/58/60 , Start Serial: D148 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	87317695 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	43117 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND - this part has been superceded by 87317695 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	25
23	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
24	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
25	84064463 BUSHING for FX28/30/38/40/48/50/58/60 , Start Serial: D148 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84434015 PLATE for FX28/30/38/40/48/50/58/60 LH, Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84434012 PLATE for FX28/30/38/40/48/50/58/60 RH, Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84434010 PLATE for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84076174 CLAMP , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84435832 CLAMP - this part has been superceded by 84076174 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84434269 GUARD for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	84434832 GUARD for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84073308 PLATE for FX28/30/38/40/48/50/58/60 , Start Serial: D218,FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
