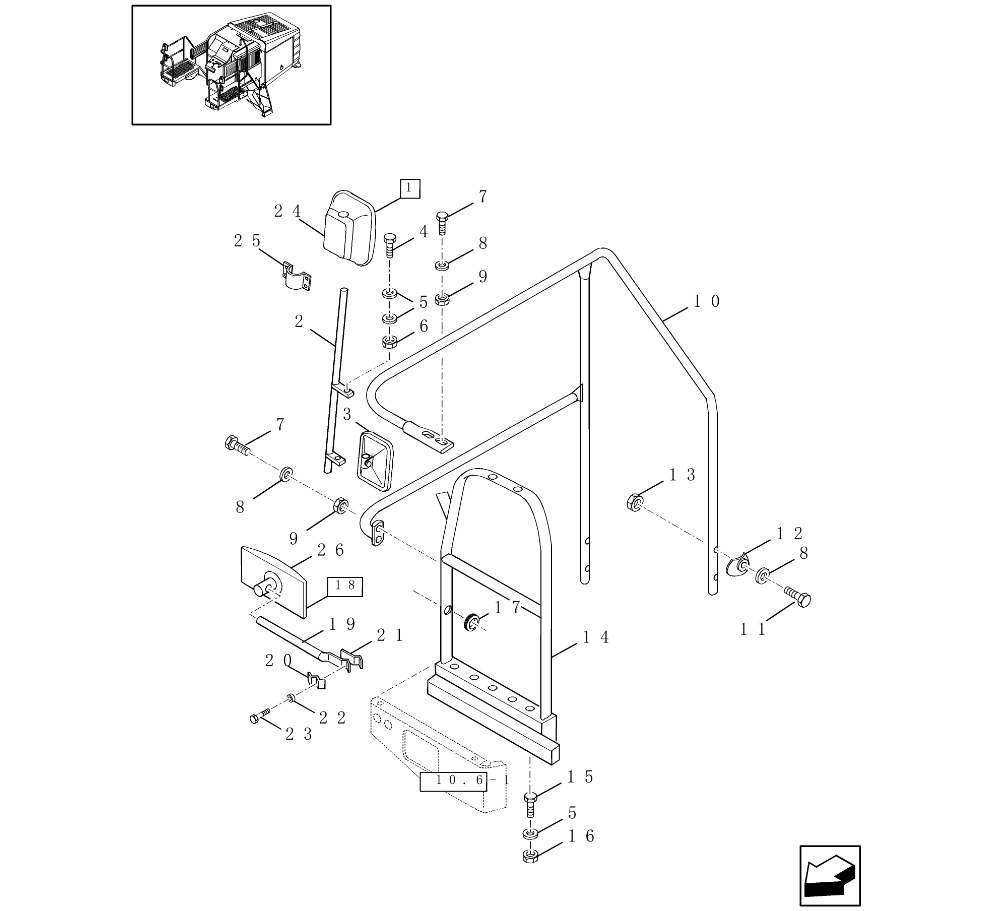

FX48 - (9/98-) Main Frame

Key

Ref	Description
1	REAR VIEW MIRROR
2	SUPPORT
3	REAR VIEW MIRROR
4	BOLT,Hex, M10 x 30, 8.8, Full Thd
5	BELLEVILLE WASHER,M10
6	NUT,M10 x 1.5, Cl 8
7	BOLT,Hex, M8 x 50, 8.8
8	BELLEVILLE WASHER,M8
9	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
10	HANDRAIL
11	BOLT,Hex, M8 x 40, 8.8, Full Thd
12	CLAMP
13	NUT-M8 NYLOC
13	NUT,M8 x 1.25, Cl 8
14	HANDRAIL
14	HANDRAIL
15	CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd
16	NUT,M10, Cl 8
17	RUBBER BUSHING
18	REAR VIEW MIRROR
19	RIGID TUBE
20	CLAMP
21	CLAMP
22	BELLEVILLE WASHER,M6
23	BOLT,Hex, M6 x 1 x 25.00mm, Cl 8.8, ZND
24	COVER
25	CLAMP
26	REPLACEMENT MIRROR

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX48 - (9/98-) / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	9501005 REAR VIEW MIRROR for all New Holland FX Forager Harvesters models (24, 25) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84019723 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	437650 REAR VIEW MIRROR for all New Holland FX Forager Harvesters models LH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models FOR NA ONLY (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
5	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	25
6	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
7	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
9	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84001727 HANDRAIL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	120106 BOLT,Hex, M8 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	333962 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
13	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
14	9818337 HANDRAIL (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	89818337 HANDRAIL - this part has been superceded by 9818337 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	86512446 CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	5
16	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	10
17	190067 RUBBER BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84011599 REAR VIEW MIRROR for all New Holland FX Forager Harvesters models (26),FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84021090 RIGID TUBE for all New Holland FX Forager Harvesters models FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84007508 CLAMP for all New Holland FX Forager Harvesters models FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84007510 CLAMP for all New Holland FX Forager Harvesters models FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
23	86977786 BOLT,Hex, M6 x 1 x 25.00mm, Cl 8.8, ZND - this part has been superceded by 47919720 FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	84036577 COVER for all New Holland FX Forager Harvesters models Back (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84037250 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84036693 REPLACEMENT MIRROR for all New Holland FX Forager Harvesters models FOR GERMANY ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
