FX48 - (9/98-) Drive Line

Key

Ref	Description
1	SUPPORT
2	ELECTROMAGNET
3	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
4	BELLEVILLE WASHER,M8
5	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
6	CLAMP
7	NUT-M8 NYLOC
7	NUT,M8 x 1.25, Cl 8
8	SHAFT
9	ROLLER
10	NUT,M10 x 1.5, Cl 8
11	SCREW,Hex, M8 x 45, 8.8
11	BOLT,Hex, M8 x 35, 10.9
11	BOLT,Hex, M8 x 35, 10.9
12	BOLT,Hex, M10 x 80, 8.8
12	BOLT,Hex, M10 x 80, 8.8
12	BOLT,Hex, M10 x 90, 8.8
13	WASHER,M10 x 24 x 2 Thk
14	SPRING
15	BUSHING
16	NUT,M10, Cl 8
17	BOLT,Hex, M10 x 40, 8.8, Full Thd
18	BELLEVILLE WASHER,M10
19	WIRE HARNESS
20	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2)
20	BOLT,Hex, M6 x 30, 8.8, Full Thd
21	BRACKET
22	NUT M6 HEX
22	NUT,M6, Cl 10
23	BELLEVILLE WASHER,M6
24	BOLT,Hex, M6 x 20, 8.8
25	WASHER,M6
25	WASHER,M6
26	NUT-M8 NYLOC
26	NUT,M8 x 1.25, Cl 8
26	NUT,Hex, M8, Cl 10, ZND
27	PLATE

MalpasDirect - Replacement Tractors Parts

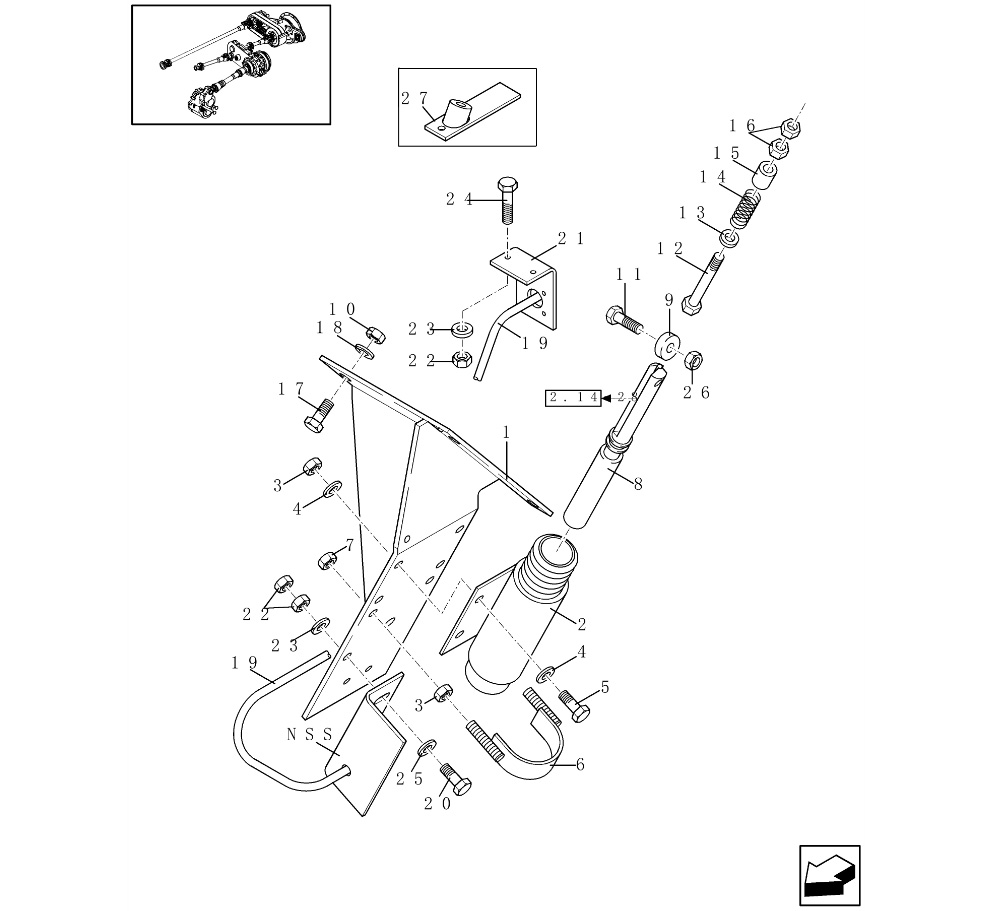

Diagram

Located in:

FX Series Parts / FX48 - (9/98-) / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84036823 SUPPORT for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
2	84038194 ELECTROMAGNET for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
3	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
4	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Inc VAT	1
5	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Inc VAT	10
6	84039226 CLAMP for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
7	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
7	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	50
8	84036999 SHAFT for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
9	84037173 ROLLER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
10	100037 NUT,M10 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Inc VAT	25
11	386045 SCREW,Hex, M8 x 45, 8.8 - this part has been superceded by 16044124 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
11	385772 BOLT,Hex, M8 x 35, 10.9 - this part has been superceded by 80385772 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
11	80385772 BOLT,Hex, M8 x 35, 10.9 for FX28/38/48/58 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
12	120073 BOLT,Hex, M10 x 80, 8.8 - this part has been superceded by 129796A1 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
12	129796A1 BOLT,Hex, M10 x 80, 8.8 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
12	120074 BOLT,Hex, M10 x 90, 8.8 for FX28/38/48/58 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	10
13	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	5
14	320502 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
15	9514390 BUSHING for all New Holland FX Forager Harvesters models , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
16	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Inc VAT	10
17	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Inc VAT	5
18	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Inc VAT	25
19	84035132 WIRE HARNESS for FX28/300/375/38/450/48/58 (NSS) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
20	87317695 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
20	120101 BOLT,Hex, M6 x 30, 8.8, Full Thd - this part has been superceded by 87317695 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
21	84039350 BRACKET for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
22	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Inc VAT	1
22	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
23	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	25
24	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Inc VAT	25
25	140015 WASHER,M6 - this part has been superceded by 9824259 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
25	9824259 WASHER,M6 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Inc VAT	25
26	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
26	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	50
26	43362 NUT,Hex, M8, Cl 10, ZND for FX28/38/48/58 , Start Serial: D174 (Job Qty: 2) In Stock Shipping Costs...	Call Inc VAT	10
27	84432089 PLATE for FX28/38/48/58 , Serial Range: -C163 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Inc VAT	1
