FX450 - YELLOW Main Frame

Key

Ref	Description
1	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
2	BELLEVILLE WASHER,M8
3	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
4	SUPPORT
6	BELLEVILLE WASHER,M10
7	NUT,M10, Cl 8
9	PLATFORM
10	ANTI-SKID STRIP
11	COVER
12	SUPPORT
13	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
14	COVER PLATE
15	SCREW
16	SCREW,Hex, M6 x 40, 8.8, Full Thd
17	WASHER,M6 x 22 x 2
17	WASHER
18	BELLEVILLE WASHER,M6
19	NUT,M6, Cl 10
19	NUT M6 HEX
20	BRACKET
21	BOLT,Hex, M6 x 20, 8.8
5	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND
8	BOLT,Hex, M10 x 30, 8.8, Full Thd

MalpasDirect - Replacement Tractors Parts

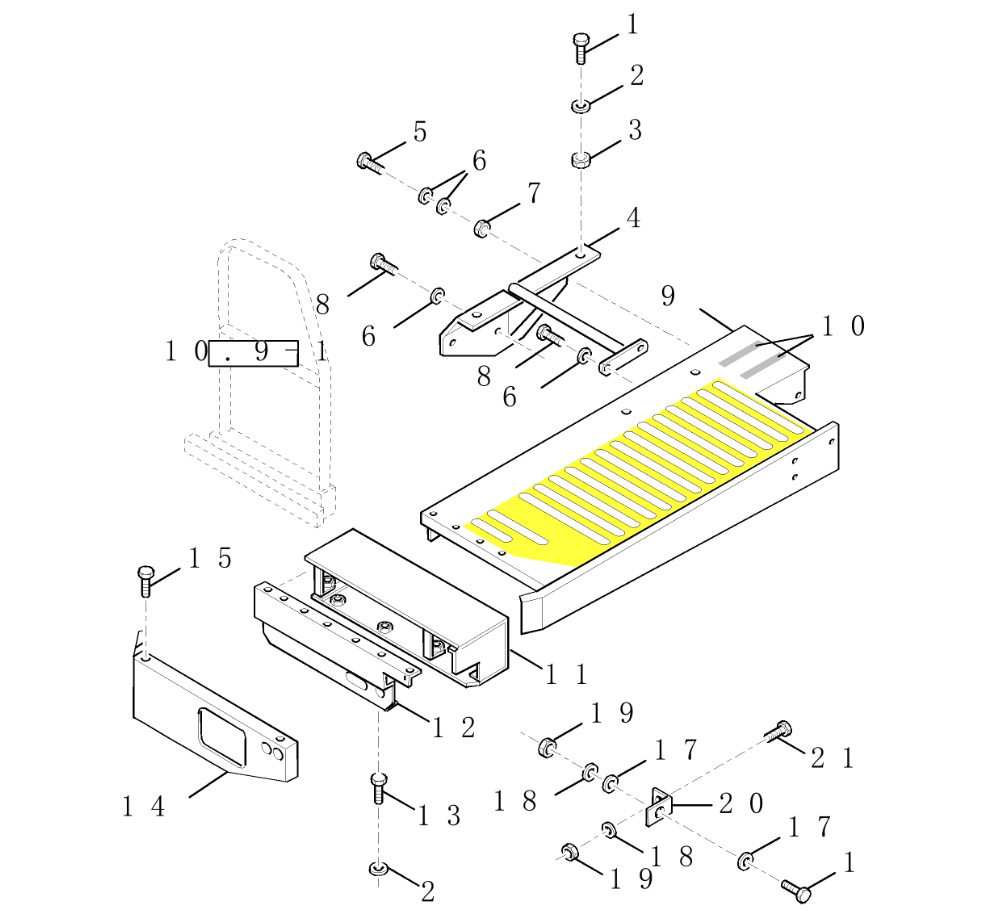

Diagram

Located in:

FX Series Parts / FX450 - YELLOW / Main Frame /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
2	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	1
3	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	89594946 SUPPORT - this part is no longer serviced (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	25
7	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
9	89594952 PLATFORM - this part has been superceded by 84432130 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	401502 ANTI-SKID STRIP for all New Holland FX Forager Harvesters models 51mm x 18.3 Roll -, Serial Range: Cut-Size (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84001882 COVER - this part has been superceded by 84432354 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84001222 SUPPORT - this part has been superceded by 84432465 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
14	84001236 COVER PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	N605772S36 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	120102 SCREW,Hex, M6 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models , Start Serial: D0900 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
17	140040 WASHER,M6 x 22 x 2 for all New Holland FX Forager Harvesters models , Start Serial: D1000 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
17	213137 WASHER for FX300/375/450 , Serial Range: -C0909 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models , Start Serial: D0900 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
19	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 , Start Serial: D0900 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models , Start Serial: D0900 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
20	84022402 BRACKET for FX28/300/375/38/450/48/58 , Start Serial: D0900 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	120100 BOLT,Hex, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models , Start Serial: D0900 (Job Qty: 1) Satellite warehouse stock (delivery 2-3 days) Shipping Costs...	Call Ex VAT	25
5	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
