FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	FERRULE
2	TUBE NUT,M24 x 1.5
3	FERRULE
4	TUBE NUT
5	HYD. TUBE,18 mm OD
5	HYD. TUBE,18 mm OD
6	NIPPLE,M24 x 1.5
7	FERRULE
8	TUBE NUT
9	UNION
9	HYD CONNECTOR
10	HYD CONNECTOR
11	HYD. TUBE,16 mm DIA
11	HYD. TUBE
12	HYD. TUBE
12	HYD. TUBE
13	HYD CONNECTOR

MalpasDirect - Replacement Tractors Parts

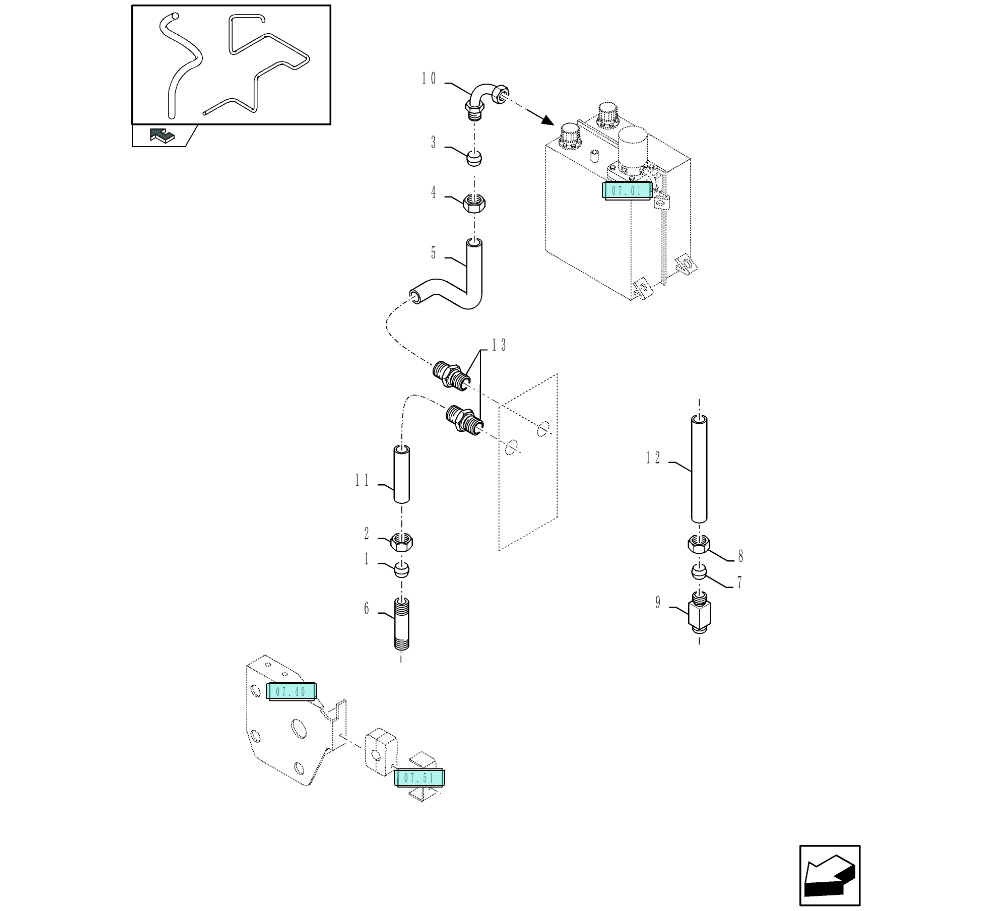

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	335169 FERRULE for all New Holland FX Forager Harvesters models 16 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
2	335171 TUBE NUT,M24 x 1.5 for all New Holland FX Forager Harvesters models 16mm Tube O.D. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	335168 FERRULE for all New Holland FX Forager Harvesters models 18 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
4	335170 TUBE NUT for all New Holland FX Forager Harvesters models M18 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84435144 HYD. TUBE,18 mm OD for FX30/40/50/60 , Serial Range: -C357 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84435056 HYD. TUBE,18 mm OD for FX30/40/50/60 , Start Serial: D358 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	335174 NIPPLE,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	150014 FERRULE for all New Holland FX Forager Harvesters models 10 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
8	86548975 TUBE NUT for all New Holland FX Forager Harvesters models M10 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
9	47499003 UNION - this part has been superceded by 47499003 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	150017 HYD CONNECTOR - this part has been superceded by 47499003 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	447770 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84429997 HYD. TUBE,16 mm DIA for FX30/40/50/60 , Serial Range: -C357 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84018457 HYD. TUBE for FX30/40/50/60 , Start Serial: D358 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84432318 HYD. TUBE for FX30/40/50/60 , Serial Range: -C357 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84064885 HYD. TUBE for FX30/40/50/60 , Start Serial: D358 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	394373 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
