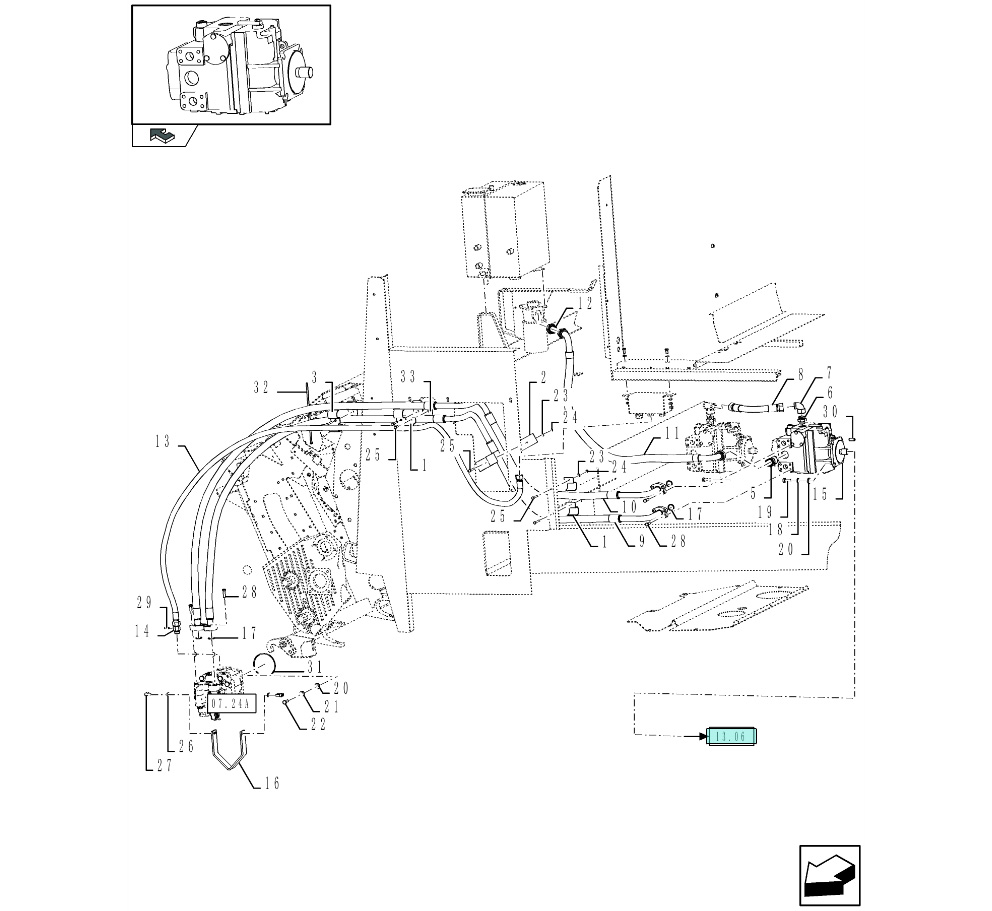

FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	CLAMP
2	PLATE
3	CLAMP
5	HYD CONNECTOR
6	HYD CONNECTOR
7	ELBOW
8	HOSE
9	HYDRAULIC HOSE
9	HYDRAULIC HOSE
10	HYDRAULIC HOSE
10	HYDRAULIC HOSE
11	HOSE
12	HYD CONNECTOR
13	HOSE
14	HYD CONNECTOR
15	HYDROSTATIC PUMP
16	COVER
16	COVER
17	O-RING,1.3" ID x 0.14" Width
18	LOCK WASHER,M14
18	LOCK WASHER,M14
19	BOLT,Hex, M14 x 35, 8.8, Full Thd
20	WASHER
21	BELLEVILLE WASHER,Belleville, M12
22	BOLT,Hex, M12 x 35, 8.8, Full Thd
22	NUT,M12, Cl 8
23	BELLEVILLE WASHER,M8
24	NUT,M8, Cl 8
25	SCREW,Hex, M8 x 60, Cl 8.8, Full Thd
26	LOCK WASHER,M10
27	HEX SOC SCREW,Hex Soc Hd, M10 x 25, 12.9
27	SCREW,Hex Soc Hd, M10 x 25, 8.8
28	BOLT,Hex, 7/16"-14 x 1/2", 12.9
29	PLUG,Sq Hd, 3/8"-18
29	PLUG
30	SCREW
31	O-RING,124mm ID x 4mm Width
32	STRAP
33	PLATE

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84442275 CLAMP for FX30/40/50/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84442285 PLATE for FX30/40/50/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84435979 CLAMP for FX30/40/50/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84100797 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	9511910 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	457573 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84442358 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84442288 HYDRAULIC HOSE for FX30/40/50/60 , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84442289 HYDRAULIC HOSE for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84442289 HYDRAULIC HOSE for FX30/40/50/60 , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84442288 HYDRAULIC HOSE for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84442368 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84442700 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84442388 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84442370 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84817134 HYDROSTATIC PUMP for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84443686 COVER - this part has been superceded by 84447455 , Serial Range: -C277 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84447455 COVER for FX30/40/50/60 , Start Serial: D278 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	353108 O-RING,1.3" ID x 0.14" Width for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	6
18	140030 LOCK WASHER,M14 - this part has been superceded by 80140047 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	80140047 LOCK WASHER,M14 for FX30/40/50/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	280854 BOLT,Hex, M14 x 35, 8.8, Full Thd for FX30/40/50/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
20	140086 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
22	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
23	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
24	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	86977784 SCREW,Hex, M8 x 60, Cl 8.8, Full Thd for FX30/40/50/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	140028 LOCK WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
27	86508097 HEX SOC SCREW,Hex Soc Hd, M10 x 25, 12.9 for FX30/40/50/60 , Serial Range: -C305 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
27	120052 SCREW,Hex Soc Hd, M10 x 25, 8.8 for FX30/40/50/58/60 , Start Serial: D306 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
28	84015552 BOLT,Hex, 7/16"-14 x 1/2", 12.9 for all New Holland FX Forager Harvesters models M8 x 60 (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
29	80781 PLUG,Sq Hd, 3/8"-18 for FX30/40/50/60 , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
29	84447187 PLUG for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	89835745 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	9673006 O-RING,124mm ID x 4mm Width for FX30/300/375/40/450/50/60 , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	84449335 STRAP for FX30/40/50/60 , Start Serial: D306 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84446927 PLATE for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
