FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	HYD CONNECTOR
2	ELBOW
3	TUBE
4	SUPPORT
5	RUBBER SEAL
6	THERMOSTAT
6	THERMOSTAT
7	HYD CONNECTOR
8	3 WAY CONNECTION
9	HYDRAULIC HOSE
10	HYDRAULIC HOSE
11	HOSE
12	HYD. TUBE,28 mm DIA x 100 mm L
13	HOSE
14	HOSE
16	HOSE
17	HYD CONNECTOR
18	PLUG
19	FERRULE
20	O-RING,1.3" ID x 0.14" Width
21	WASHER
22	LOCK WASHER
23	BOLT,Hex, 1/2"-13 x 1 1/2", G5, Full Thd
24	BELLEVILLE WASHER,Belleville, M12
25	NUT,M8, Cl 8
26	BOLT,Hex, 7/16"-14 x 1/2", 12.9
27	BELLEVILLE WASHER,M8
28	CARRIAGE BOLT,Short NK, M8 x 80, Cl8.8
28	CARRIAGE BOLT,Short NK, M8 x 80, Cl8.8
29	PLUG,Sq Hd, 3/8"-18
30	HYDROSTATIC PUMP
31	NUT,M12, Cl 8
32	HOSE CLAMP,M25-40, Worm
33	HYDRAULIC OIL FILTER
34	FILTER-HYDRAULIC
34	HYDRAULIC OIL FILTER
35	NUT
36	O-RING
37	RIGID TUBE
38	STRAP

MalpasDirect - Replacement Tractors Parts

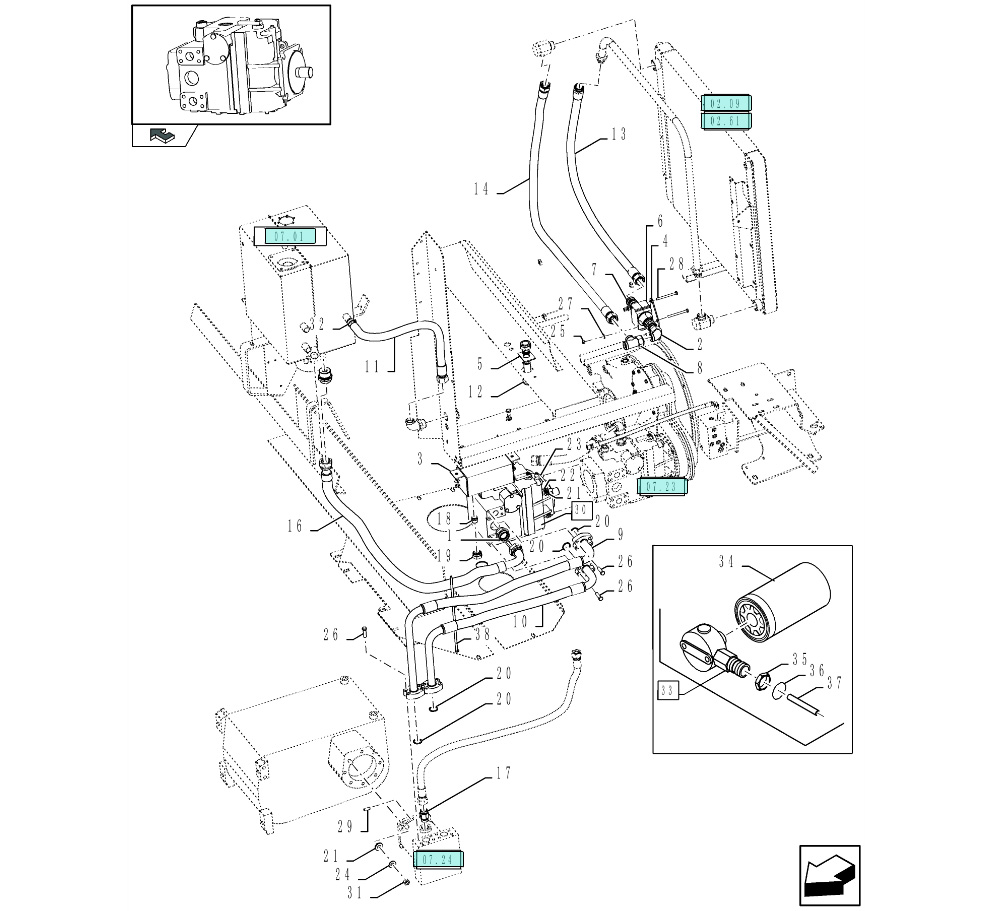

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84442372 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	457573 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84814811 TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84442719 SUPPORT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84442202 RUBBER SEAL for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84074158 THERMOSTAT - this part has been superceded by 87740633 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	87740633 THERMOSTAT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84074173 HYD CONNECTOR for FX30/40/50/60 Includes O-ring 86598104, not illustrated (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	9507672 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84442350 HYDRAULIC HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84442357 HYDRAULIC HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84442365 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84442423 HYD. TUBE,28 mm DIA x 100 mm L for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84442364 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84442366 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84442369 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84442370 HYD CONNECTOR for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84442790 PLUG for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84442792 FERRULE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	353108 O-RING,1.3" ID x 0.14" Width for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	6
21	140086 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	86513238 LOCK WASHER for FX30/40/50/60 1/2" (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	87689 BOLT,Hex, 1/2"-13 x 1 1/2", G5, Full Thd for FX30/40/50/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
25	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84015552 BOLT,Hex, 7/16"-14 x 1/2", 12.9 for all New Holland FX Forager Harvesters models M8 x 60 (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
27	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
28	120040 CARRIAGE BOLT,Short NK, M8 x 80, Cl8.8 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
28	366046 CARRIAGE BOLT,Short NK, M8 x 80, Cl8.8 - this part has been superceded by 120040 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	80781 PLUG,Sq Hd, 3/8"-18 for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
30	84817133 HYDROSTATIC PUMP for FX30/40/50/60 (34) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
32	382527 HOSE CLAMP,M25-40, Worm - this part has been superceded by 514920 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84031879 HYDRAULIC OIL FILTER for FX30/40/50/60 Head Assy., Serial Range: (34-37) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84469093 FILTER-HYDRAULIC for FX30/40/50/60 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84074777 HYDRAULIC OIL FILTER - this part has been superceded by 84469093 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	84037209 NUT for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	84037207 O-RING for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	84037208 RIGID TUBE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	84449335 STRAP for FX30/40/50/60 (Job Qty: 11) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
