FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	TUBE NUT
2	FERRULE
3	HYD. TUBE,2000 mm Length
4	FITTING
5	HOSE
6	FERRULE
7	TUBE NUT,M14 x 1.5
8	HYD. TUBE,2000 mm Length
9	HYD CONNECTOR
10	COLLAR
11	HYD CONNECTOR
12	HYD CONNECTOR
13	FLEXIBLE HOSE
13	HOSE
14	ELBOW
15	HYD CONNECTOR,9/16"-18, 37º x 9/16"-18, O-Ring
16	FLEXIBLE HOSE
17	HYD CONNECTOR
18	HYD CONNECTOR
19	TUBE NUT
20	ELBOW
21	HYDRAULIC HOSE
22	FITTING
23	SEALING WASHER
24	SEALING WASHER
24	SEALING WASHER
25	BANJO BOLT,M10 x 1 x 19.5
26	LUBE NIPPLE
27	HYD CONNECTOR
27	UNION
28	3 WAY CONNECTION
29	HOSE

MalpasDirect - Replacement Tractors Parts

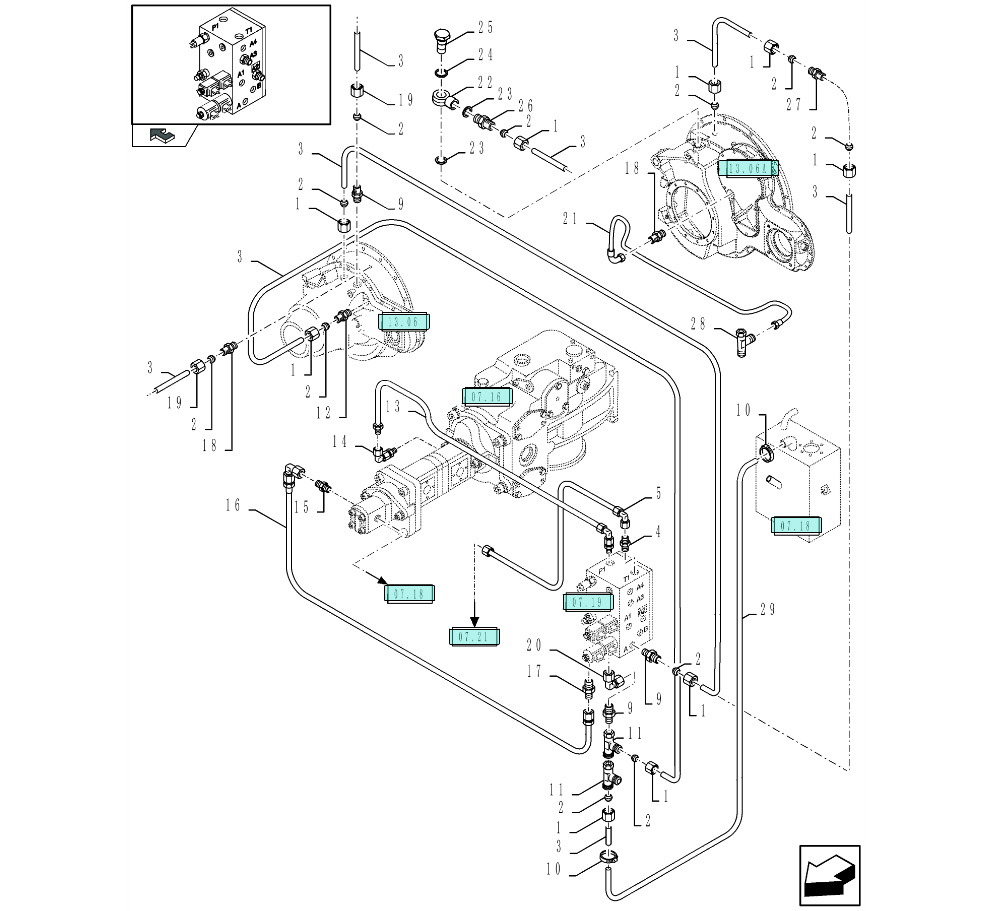

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	86548975 TUBE NUT for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
2	150014 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	371539 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 10 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9513082 FITTING for FX30/300/375/40/450/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84442287 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	335136 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
7	335135 TUBE NUT,M14 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
8	371540 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 8 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	420522 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	82039341 COLLAR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
11	734031 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	395019 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84052145 FLEXIBLE HOSE for all New Holland FX Forager Harvesters models , Serial Range: -C305 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84442287 HOSE for FX30/40/50/60 , Start Serial: D306 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84018535 ELBOW for all New Holland FX Forager Harvesters models , Serial Range: -C297 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	76350 HYD CONNECTOR,9/16"-18, 37º x 9/16"-18, O-Ring for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
16	84045344 FLEXIBLE HOSE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84045343 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	395019 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86548975 TUBE NUT for all New Holland FX Forager Harvesters models M10 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
20	418284 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84818084 HYDRAULIC HOSE for FX30/40/50/60 , Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	9832303 FITTING for all New Holland FX Forager Harvesters models , Start Serial: D298 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84439102 SEALING WASHER for FX28/30/38/40/48/50/58/60 , Start Serial: D298 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
24	87801445 SEALING WASHER for all New Holland FX Forager Harvesters models SEALRING, Start Serial: D298 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	355607 SEALING WASHER - this part has been superceded by 87801445 SEALRING, Start Serial: D298 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	9832304 BANJO BOLT,M10 x 1 x 19.5 for all New Holland FX Forager Harvesters models , Start Serial: D298 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
26	84818553 LUBE NIPPLE for FX30/40/50/60 , Start Serial: D298 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	150017 HYD CONNECTOR - this part has been superceded by 47499003 , Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	47499003 UNION - this part has been superceded by 47499003 , Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	395472 3 WAY CONNECTION for all New Holland FX Forager Harvesters models , Start Serial: D298 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84000314 HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	15
