FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	FERRULE
2	TUBE NUT,M14 x 1.5
3	HYD. TUBE,2000 mm Length
4	FITTING
5	HYD CONNECTOR,M14 x 1.5
6	HYDRAULIC VALVE
7	SEAL KIT
8	HYDRAULIC VALVE
9	SEAL KIT
10	SEAL
11	PRESSURE SWITCH
12	PRESSURE SWITCH
13	ELECTROMAGNET
14	ELECTROMAGNET
15	BELLEVILLE WASHER,M8
17	HYDRAULIC HOSE
18	ELBOW
19	HYD CONNECTOR
20	CYLINDER
21	SEAL KIT
22	WIRE HARNESS
23	HYDRAULIC VALVE
24	HYDRAULIC VALVE
25	HYDRAULIC VALVE
16	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

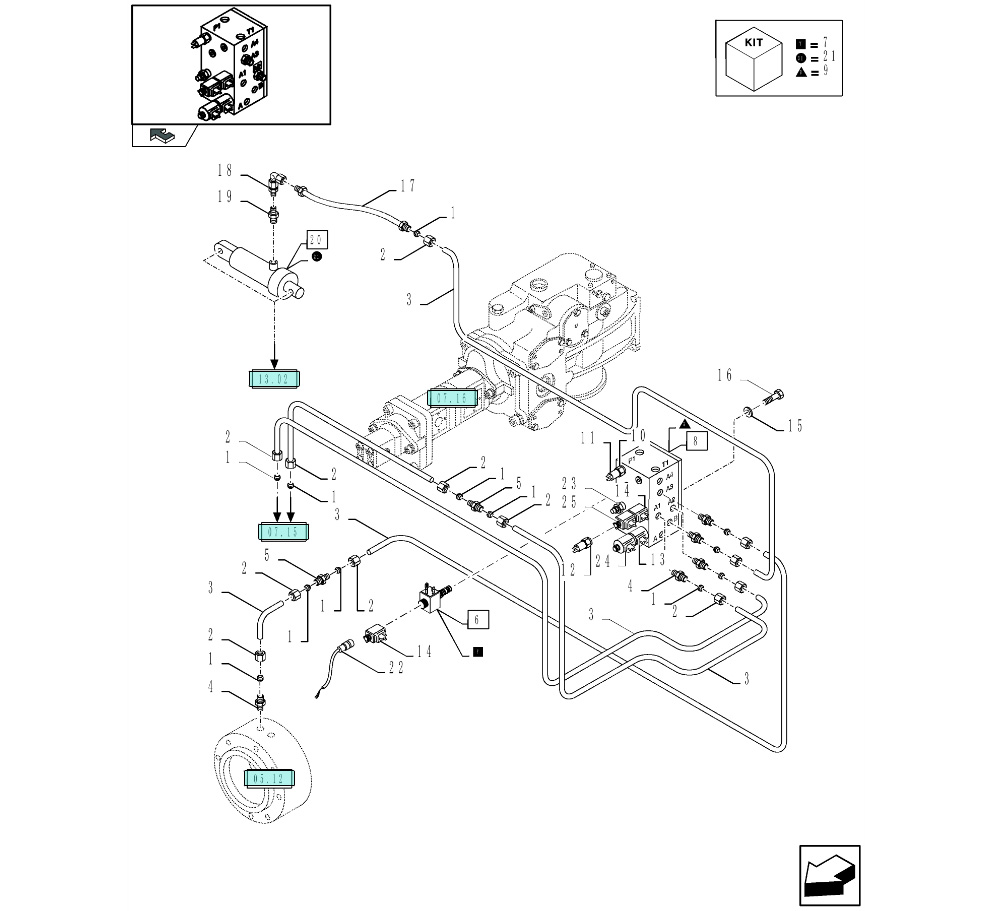

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	335136 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	335135 TUBE NUT,M14 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	371540 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 8 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9513082 FITTING for FX30/300/375/40/450/50/60 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	335172 HYD CONNECTOR,M14 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84038141 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (7, 14),4 WHEEL DRIVE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84038162 SEAL KIT for all New Holland FX Forager Harvesters models 4 WHEEL DRIVE (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84037241 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (9 to 14, 24, 25) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84053805 SEAL KIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84011379 SEAL for all New Holland FX Forager Harvesters models SEALRING (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
11	84021144 PRESSURE SWITCH for all New Holland FX Forager Harvesters models 5 BAR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84004884 PRESSURE SWITCH for all New Holland FX Forager Harvesters models 24 BAR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84053806 ELECTROMAGNET for all New Holland FX Forager Harvesters models 12 V DC (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84015319 ELECTROMAGNET for all New Holland FX Forager Harvesters models 12 V DC (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	1
17	424524 HYDRAULIC HOSE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	418283 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	386215 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84007352 CYLINDER for all New Holland FX Forager Harvesters models (21) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84026516 SEAL KIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84052207 WIRE HARNESS for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84062508 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	84062745 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84062744 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
