FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	HYD CONNECTOR,3/4"-16, 37º x 3/4"-16, O-Ring
2	HOSE
3	HYD CONNECTOR
4	HYDRAULIC OIL FILTER
5	HYDRAULIC OIL FILTER
5	HYDRAULIC OIL FILTER
6	BELLEVILLE WASHER,M8
7	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
8	HYD CONNECTOR
9	HOSE CLAMP,M35-52, Worm
9	HOSE CLAMP,M35-52, Worm (pack of 2)
10	HOSE
11	CAP COVER
12	HOLLOW SCREW
13	BOLT,Hex, M8 x 50, 8.8
14	HYDRAULIC OIL FILTER
15	SEALING WASHER
16	WASHER,M5 x 10 x 1 Thk
17	BOLT,Hex, M5 x 20, 8.8, Full Thd
18	HOSE
19	TANK
22	WASHER,M8 x 16 x 1.6
22	WASHER,M8 x 16 x 1.6 (pack of 5)
24	SEAL
24	SEAL
25	PLUG
26	SEAL
27	HYD CONNECTOR
28	HOSE CLAMP,M25-40, Worm
32	BOLT,Hex, M10 x 45, 8.8
32	BOLT,Hex, M10 x 45, 8.8 (pack of 2)
33	BELLEVILLE WASHER,M10
34	RING

MalpasDirect - Replacement Tractors Parts

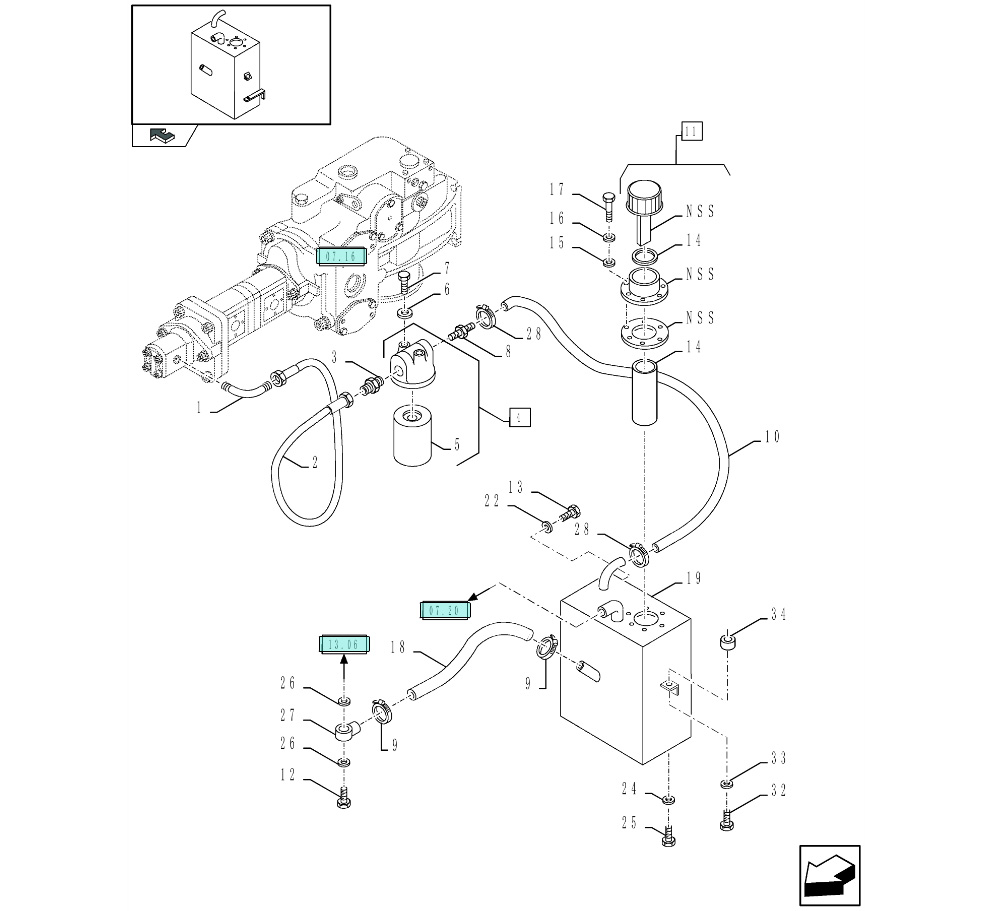

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	128818 HYD CONNECTOR,3/4"-16, 37º x 3/4"-16, O-Ring - this part has been superceded by 81827427 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84400124 HOSE for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	89838173 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	89833456 HYDRAULIC OIL FILTER for all New Holland FX Forager Harvesters models (5) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89811117 HYDRAULIC OIL FILTER - this part has been superceded by 84510478 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84510478 HYDRAULIC OIL FILTER MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	1
7	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
8	89835291 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	382528 HOSE CLAMP,M35-52, Worm - this part has been superceded by 513309 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	513309 HOSE CLAMP,M35-52, Worm (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
10	84036847 HOSE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84807524 CAP COVER for FX28/30/38/40/48/50/58/60 (14) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	89818709 HOLLOW SCREW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	43130 BOLT,Hex, M8 x 50, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
14	456473 HYDRAULIC OIL FILTER for FX28/30/38/40/48/50/58/60 (WHITE SEAL RING),MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	373817 SEALING WASHER for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
16	9824326 WASHER,M5 x 10 x 1 Thk for FX28/30/38/40/48/50/58/60 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	120098 BOLT,Hex, M5 x 20, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
18	84036848 HOSE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84437717 TANK for FX30/40/50/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	140016 WASHER,M8 x 16 x 1.6 - this part has been superceded by 86624184 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	86624184 WASHER,M8 x 16 x 1.6 (pack of 5) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	J912889 SEAL - this part has been superceded by 722441 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	9511034 SEAL - this part has been superceded by 722441 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	150060 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84026508 SEAL for all New Holland FX Forager Harvesters models SEALRING (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	89818710 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	382527 HOSE CLAMP,M25-40, Worm - this part has been superceded by 514920 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	325829 BOLT,Hex, M10 x 45, 8.8 - this part has been superceded by 8900127036 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	8900127036 BOLT,Hex, M10 x 45, 8.8 (pack of 2) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
33	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	25
34	9513106 RING for FX28/30/38/40/48/50/58/60 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
