FX40 - (1/02-) Hydraulic Systems

Key

Ref	Description
1	SCREW,Hex, M6 x 45, 8.8
2	HOSE CLAMP,M25-40, Worm
3	O-RING,0.924" ID x 0.116" Width
4	COUPLING FLANGE
4	COUPLING FLANGE
5	BELLEVILLE WASHER,M6
6	SCREW
7	SCREW,Hex Soc Hd, M6 x 20, 8.8
8	ELBOW
9	FERRULE
10	TUBE NUT,M24 x 1.5
11	HYD. TUBE,2000 mm Length
12	NIPPLE,M24 x 1.5
13	BRACKET
14	COVER PLATE
15	SCREW,Hex Soc Hd, M6 x 20, 8.8
16	SCREW
17	HYDRAULIC HOSE
18	HYDRAULIC HOSE,25.40 mm ID x 2205.00 mm, SAE J517 or SAE 100R4
19	O-RING,M20 ID x 2.5 Thk

MalpasDirect - Replacement Tractors Parts

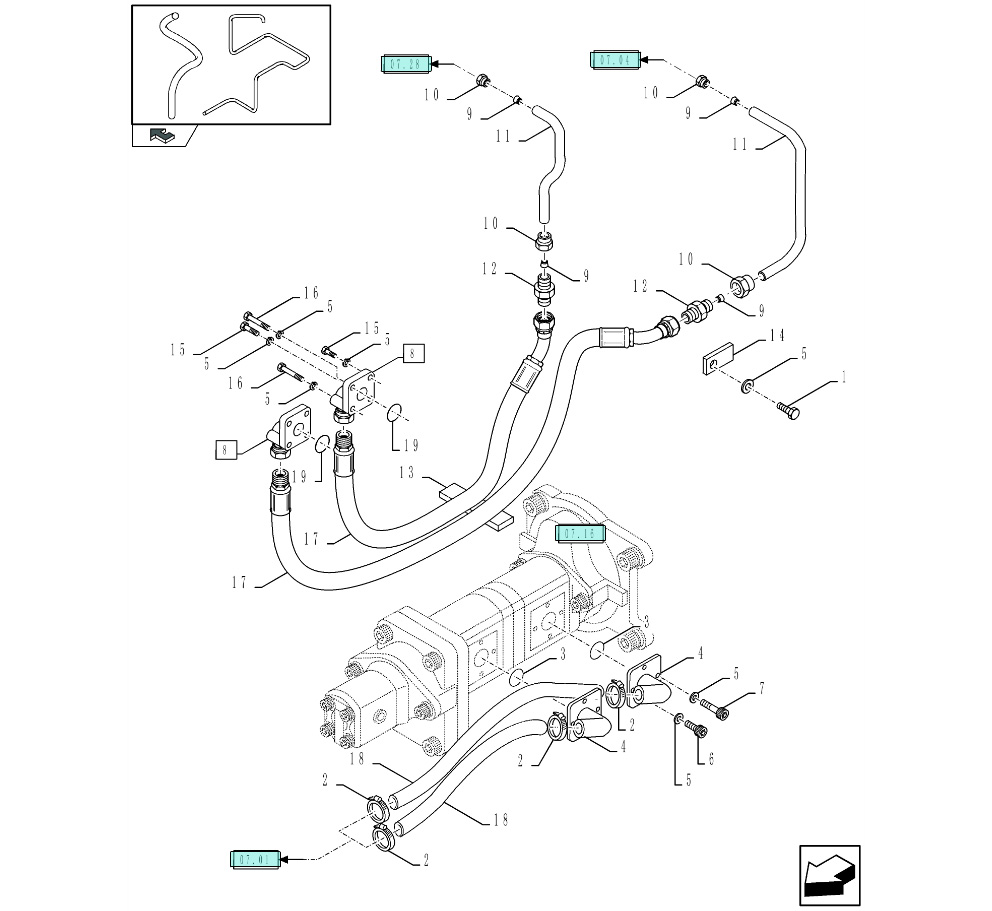

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	86977790 SCREW,Hex, M6 x 45, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	382527 HOSE CLAMP,M25-40, Worm - this part has been superceded by 514920 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	167266 O-RING,0.924" ID x 0.116" Width for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	753432 COUPLING FLANGE - this part has been superceded by 80753432 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	80753432 COUPLING FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
6	356464 SCREW for all New Holland FX Forager Harvesters models M6 x 50 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84089718 SCREW,Hex Soc Hd, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	337208 ELBOW for all New Holland FX Forager Harvesters models (3, 5, 15, 16) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	335169 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
10	335171 TUBE NUT,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	371536 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 16 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	335174 NIPPLE,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84000903 BRACKET for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84031410 COVER PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84089718 SCREW,Hex Soc Hd, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
16	356464 SCREW for all New Holland FX Forager Harvesters models M6 x 50 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9815902 HYDRAULIC HOSE for FX30/40/50/60 27 - 1/2" Long (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84068790 HYDRAULIC HOSE,25.40 mm ID x 2205.00 mm, SAE J517 or SAE 100R4 for FX30/40/50/60 2205 mm Long - Cut to Length (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	304967 O-RING,M20 ID x 2.5 Thk for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
				Add
