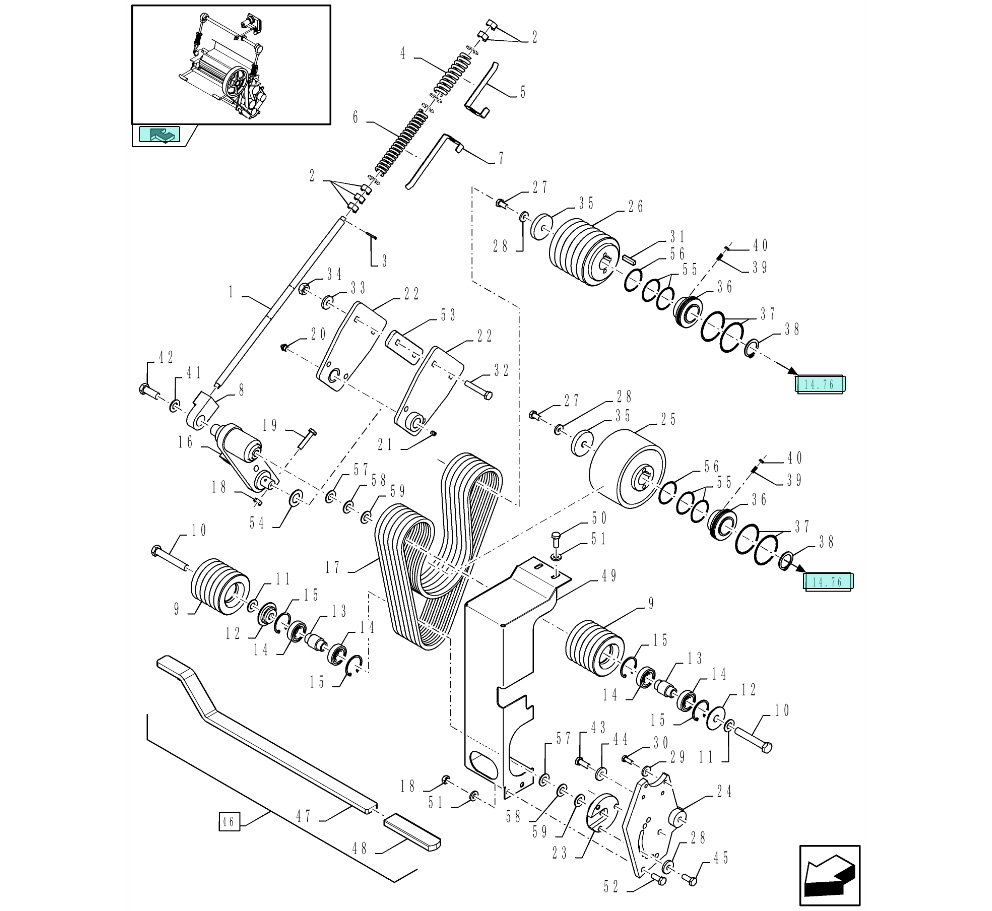

FX40 - (1/02-) Crop Processor

Key

RefDescription
1 ROD
2 NUT,M16, Cl 8
3 COTTER PIN,M2 x 40
3 COTTER PIN
3 COTTER PIN,M2 x 40
3 COTTER PIN
4 SPRING
5 INDICATOR
6 SPRING
6 SPRING
7 INDICATOR
8 PLATE
9 PULLEY
9 PULLEY
10 SCREW,Hex, M16 x 2 x 100.00mm, Cl 8.8, ZND
11 SNAP RING,M35, Ext x 1.5 Thk
11 BELLEVILLE WASHER,M16
12 WASHER
13 SPACER
14 BALL BEARING
14 BALL BEARING,25 mm ID x 52 mm OD x 15 mm
15 CIRCLIP,M52, Int
15 CIRCLIP,M52, Int
16 PIVOTING ARM
17 BELT, TRANSMISSION,12.45 mm W x 1775.00 mm L
17 BELT, TRANSMISSION,12.45 mm W x 1580.00 mm L
17 BELTS-CPP(MAIZE) SP
18 NUT,M10, Cl 8
19 BOLT,Hex, M10 x 50, 8.8, Full Thd
20 LUBE NIPPLE
21 SET SCREW,Hex Soc, M6 x 5
22 PLATE
23 WASHER
24 PLATE
24 PLATE
25 IDLER
25 IDLER
25 IDLER
25 IDLER
26 DRIVEN PULLEY
26 DRIVEN PULLEY
26 DRIVEN PULLEY
26 DRIVEN PULLEY
27 SCREW,Hex Cap, M12 x 1.75 x 45.00mm, Cl 8.8, ZND
28 WASHER,M12 x 35 x 5, HT
29 BELLEVILLE WASHER,M8
30 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
31 KEY
32 CARRIAGE BOLT,Short NK, M12 x 80, Cl8.8
33 BELLEVILLE WASHER,Belleville, M12
34 NUT,M12, Cl 8
35 FLANGE
35A SCREW,Hex Soc Hd, M10 x 25, 8.8
36 FLANGE
37 RING
37 SET OF RINGS
38 SNAP RING,M40, Ext, Hvy
39 SET SCREW,Hex Soc, M8 x 16, Cup Pt
40 NUT,M8, Cl 8
41 WASHER
42 BOLT,Hex, M16 x 30, 8.8, Full Thd
43 BOLT,Hex, M12 x 60, 8.8
43 BOLT,Hex, M12 x 60, 8.8
44 BELLEVILLE WASHER,Belleville, M12
44 BELLEVILLE WASHER,Belleville, M12
45 BOLT,Hex, M12 x 35, 8.8, Full Thd
45 BOLT,Hex, M12 x 35, 8.8, Full Thd
46 ARM
47 ARM
48 HANDLE GRIP
49 PLATE
49 PLATE
50 BOLT,Hex, M10 x 30, 8.8, Full Thd
51 BELLEVILLE WASHER,M10
52 BOLT,Hex, M10 x 40, 8.8, Full Thd
53 PLATE
54 WASHER
55 ADJUSTING PLATE
56 ADJUSTING PLATE
57 SHIM
58 SHIM
59 SHIM
