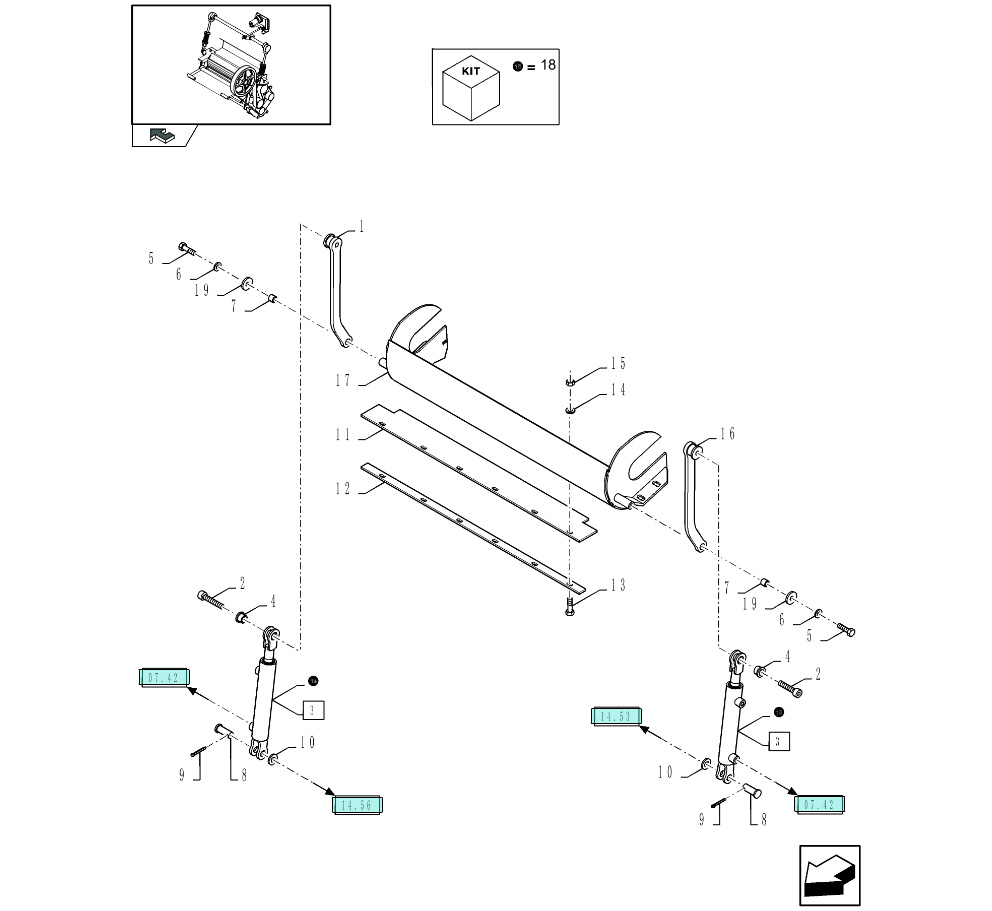

FX40 - (1/02-) Crop Processor

Key

Ref	Description
1	LINK/SHACKLE
2	HEX SOC SCREW,Hex Soc Hd, M12 x 40, 12.9
3	HYDRAULIC CYLINDER
3	HYDRAULIC CYLINDER
3	HYDRAULIC CYLINDER
4	BUSHING
5	BOLT,Hex, M10 x 30, 8.8, Full Thd
6	WASHER,M10 x 24 x 2 Thk
7	BUSHING
8	CLEVIS PIN,M20 x 50
9	COTTER PIN,M5 x 32
10	WASHER,M20
11	CANVAS
12	PLATE
13	CARRIAGE BOLT,Short NK, M8 x 25, Cl8.8, Full Thd
14	BELLEVILLE WASHER,M8
15	NUT-M8 NYLOC
15	NUT,M8 x 1.25, Cl 8
16	LINK/SHACKLE
17	COVER
17	COVER
18	SEAL KIT
19	BELLEVILLE WASHER,M10

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Crop Processor /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84432540 LINK/SHACKLE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	280685 HEX SOC SCREW,Hex Soc Hd, M12 x 40, 12.9 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	84431304 HYDRAULIC CYLINDER - this part has been superceded by 84455840 , Serial Range: -C289 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84448286 HYDRAULIC CYLINDER - this part has been superceded by 84455840 (18), Serial Range: -F290333 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84455840 HYDRAULIC CYLINDER for FX30/40/50/60 (18), Start Serial: D334 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84433199 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
6	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	84433200 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	412131 CLEVIS PIN,M20 x 50 for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	412686 COTTER PIN,M5 x 32 for FX30/40/50/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
10	378247 WASHER,M20 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
11	84073770 CANVAS for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84432543 PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	308761 CARRIAGE BOLT,Short NK, M8 x 25, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
14	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	1
15	86528579 NUT-M8 NYLOC for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	86629542 NUT,M8 x 1.25, Cl 8 (this part has been superseded) (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
16	84432541 LINK/SHACKLE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84434682 COVER - this part has been superceded by 84448855 , Serial Range: -C281 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84448855 COVER for FX30/40/50/60 , Start Serial: D282 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84819752 SEAL KIT for FX30/40/50/60 , Start Serial: D290 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
