FX40 - (1/02-) Crop Processor

Key

Ref	Description
1	PULLEY
1	PULLEY
2	WASHER
3	WASHER,M16
4	BOLT,Hex, M16 x 80, 8.8
5	BELLEVILLE WASHER,M16
6	BALL BEARING,25 mm ID x 52 mm OD x 15 mm
6	BALL BEARING
7	CIRCLIP,M52, Int
7	CIRCLIP,M52, Int
8	BOLT,Hex, M16 x 90, 8.8
9	HUB
10	PULLEY
10	PULLEY
11	BOLT,Hex, M12 x 30, 8.8, Full Thd
12	WASHER
13	FLANGE
13	FLANGE
14	RING
14	SET OF RINGS
15	SNAP RING,M40, Ext, Hvy
16	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
16	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
17	BELLEVILLE WASHER,Belleville, M12
18	PULLEY
18	PULLEY
19	KEY
20	SHAFT
20	RING
20	SHAFT
20	SHAFT
21	SET SCREW,Hex Soc, M8 x 16, Cup Pt
22	NUT,M8, Cl 8
23	HYD CONNECTOR
24	CLAMP,5/8", Insul, 5/16" Bolt

MalpasDirect - Replacement Tractors Parts

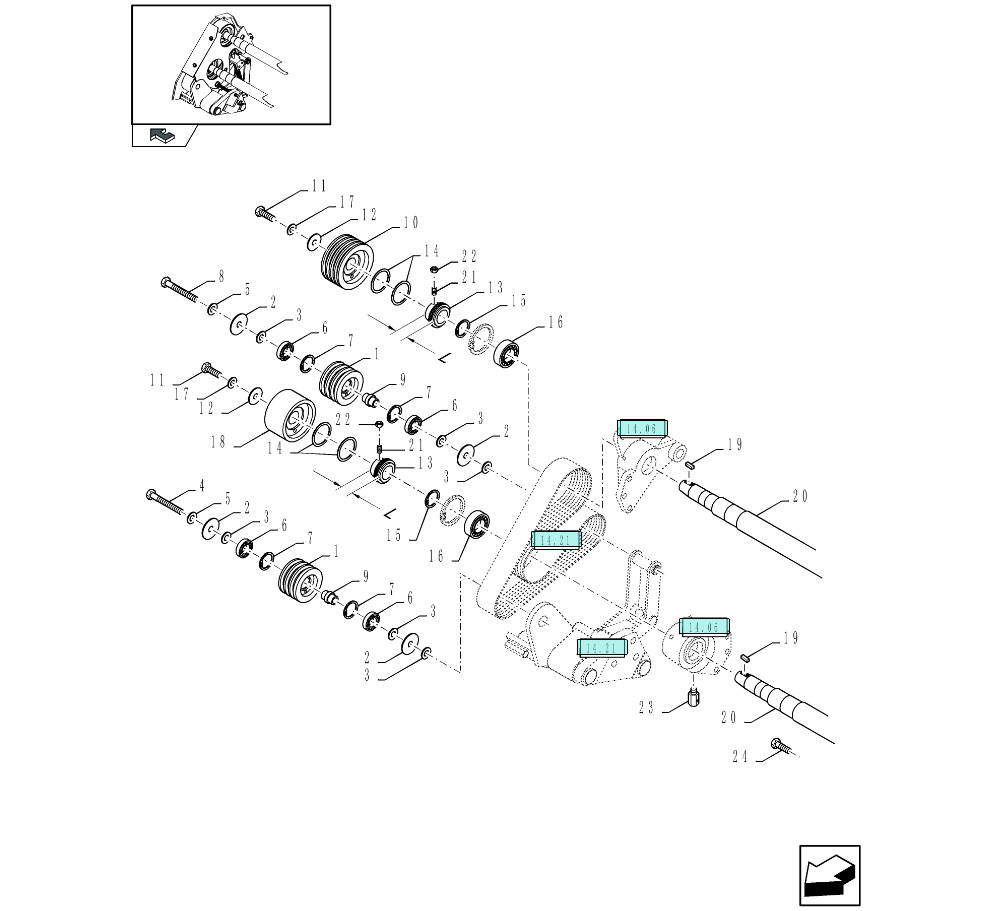

Diagram

Located in:

FX Series Parts / FX40 - (1/02-) / Crop Processor /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84000844 PULLEY for all New Holland FX Forager Harvesters models , Serial Range: -C515 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	87571363 PULLEY for FX30/40/50/60 , Start Serial: D516 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84017220 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	120093 BOLT,Hex, M16 x 80, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
6	443898 BALL BEARING,25 mm ID x 52 mm OD x 15 mm (this part has been superseded) MAINTENANCE PART (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84188095 BALL BEARING for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	33915 CIRCLIP,M52, Int (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	370011 CIRCLIP,M52, Int - this part has been superceded by 33915 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	350616 BOLT,Hex, M16 x 90, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
9	84017221 HUB for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84814180 PULLEY - this part has been superceded by 87571365 , Serial Range: -C515 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	87571365 PULLEY for FX30/40/50/60 , Start Serial: D516 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
12	9801096 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
13	84449346 FLANGE for FX30/40/50/60 L= 38 MM (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84000852 FLANGE for all New Holland FX Forager Harvesters models , Start Serial: D504,L= 45 MM (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9850345 RING for all New Holland FX Forager Harvesters models DIA=80MM (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	89850345 SET OF RINGS - this part has been superceded by 9850345 DIA=80MM (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	800-5140 SNAP RING,M40, Ext, Hvy - this part has been superceded by 370006 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	323327 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for all New Holland FX Forager Harvesters models , Serial Range: -C503,MAINTENANCE PART (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
16	87516228 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for FX30/40/50/60 , Start Serial: D504,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
18	84814181 PULLEY - this part has been superceded by 87571367 , Serial Range: -C515 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	87571367 PULLEY for FX30/40/50/60 , Start Serial: D516 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	360956 KEY for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	84814388 SHAFT - this part has been superceded by 9850345 , Serial Range: -C357,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	9850345 RING for all New Holland FX Forager Harvesters models , Serial Range: -C357,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84455001 SHAFT for FX30/40/50/60 , Serial Range: -F358503,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	87395202 SHAFT for FX30/40/50/60 , Start Serial: D504,MAINTENANCE PART (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	300477 SET SCREW,Hex Soc, M8 x 16, Cup Pt for FX28/30/38/40/48/50/58/60 , Start Serial: D326 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 , Start Serial: D326 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84053211 HYD CONNECTOR for all New Holland FX Forager Harvesters models , Start Serial: D326 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	9706748 CLAMP,5/8", Insul, 5/16" Bolt for FX28/30/300/375/38/40/450/48/50/60 M8 x 25, Start Serial: D326 (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
