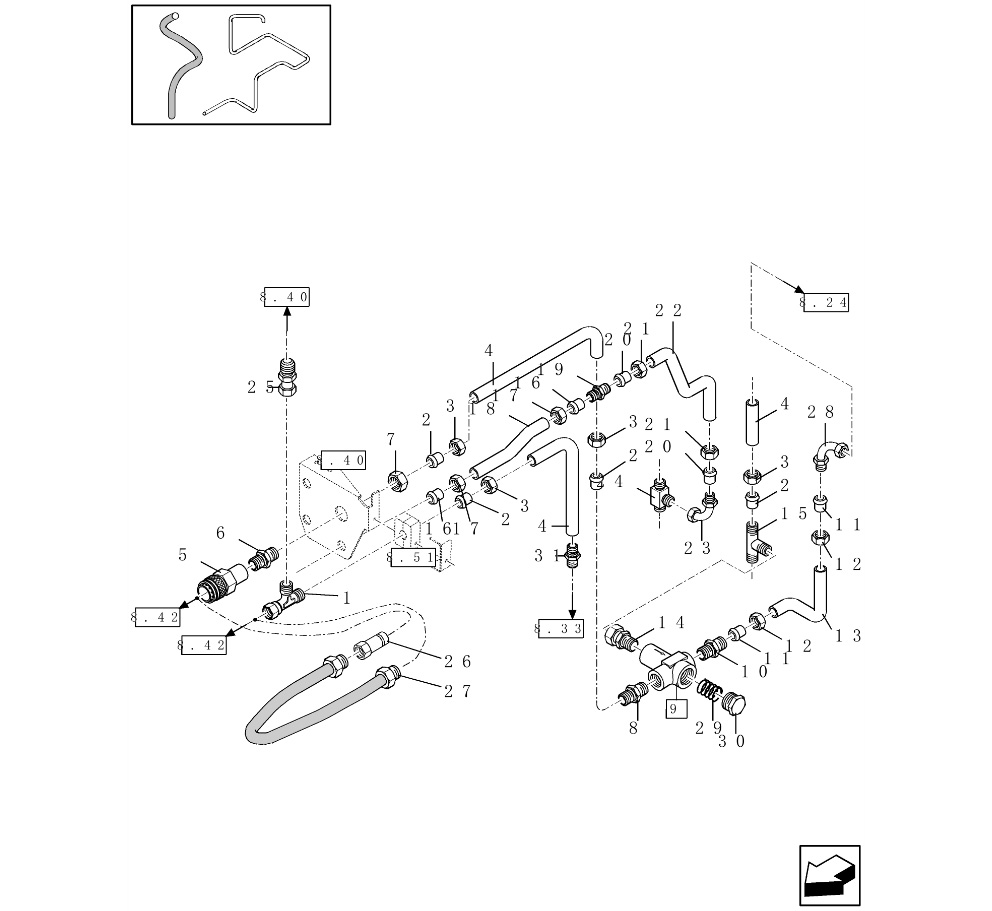

FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
1	HYD CONNECTOR
2	FERRULE
3	TUBE NUT,M24 x 1.5
4	HYD. TUBE,2000 mm Length
5	QUICK FEMALE COUPLING
6	HYD CONNECTOR
7	THIN NUT,Thin, M24 x 1.5, Cl 04
8	HYD CONNECTOR
9	PRESSURE RELIEF VALVE
10	HYD CONNECTOR
11	FERRULE
12	TUBE NUT
13	HYD. TUBE,2000 mm Length
14	HYD CONNECTOR
15	3 WAY CONNECTION
16	FERRULE
17	TUBE NUT,M14 x 1.5
18	HYD. TUBE,2000 mm Length
19	HYD CONNECTOR
19	HYD CONNECTOR
20	FERRULE
21	TUBE NUT
22	HYD. TUBE,2000 mm Length
23	ELBOW
24	3 WAY CONNECTION
25	HYD CONNECTOR
26	QUICK MALE COUPLING
26	QUICK MALE COUPLING
27	FLEXIBLE HOSE
28	HYD CONNECTOR
29	SPRING
30	PLUG
31	HYD CONNECTOR

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84042903 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	335169 FERRULE for all New Holland FX Forager Harvesters models 16 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	335171 TUBE NUT,M24 x 1.5 for all New Holland FX Forager Harvesters models 16 mm Tube O.D. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	371536 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 16 MM, L= 2 M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	772731 QUICK FEMALE COUPLING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	9513143 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	100033 THIN NUT,Thin, M24 x 1.5, Cl 04 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	394372 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9513728 PRESSURE RELIEF VALVE for all New Holland FX Forager Harvesters models (29, 30) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	394373 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	335168 FERRULE for all New Holland FX Forager Harvesters models 18 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	335170 TUBE NUT for all New Holland FX Forager Harvesters models M18 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	371534 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 18 MM ,L= 2 M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84000316 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	444325 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	335136 FERRULE for all New Holland FX Forager Harvesters models 8 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
17	335135 TUBE NUT,M14 x 1.5 for all New Holland FX Forager Harvesters models 8 mm Tube O.D. (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	371540 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 8 MM, L= 2 M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	89509282 HYD CONNECTOR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	9509282 HYD CONNECTOR - this part has been superceded by 89509282 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	150014 FERRULE for all New Holland FX Forager Harvesters models 10 MM (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
21	86548975 TUBE NUT for all New Holland FX Forager Harvesters models M10 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	371539 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D= 10 MM, L= 2 M (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	418284 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	395472 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84431521 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	87506450 QUICK MALE COUPLING FOR DISCONNECTED CROP PROCESSOR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	86544945 QUICK MALE COUPLING - this part has been superceded by 87506450 FOR DISCONNECTED CROP PROCESSOR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84431525 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 FOR DISCONNECTED CROP PROCESSOR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	447770 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 FOR DISCONNECTED CROP PROCESSOR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	9813875 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	417006 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	394372 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
