FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
1	FLANGE
2	HYD CONNECTOR
3	PROFILE
4	HOSE CLAMP,#16, 0.81/1.50 Type F Worm
5	STRAP (pack of 10)
5	STRAP
6	BOLT,Hex, M6 x 50, 8.8, Full Thd
7	NUT,M6, Cl 10
7	NUT M6 HEX
8	WASHER,M6 x 22 x 2
9	CLAMP
10	BELLEVILLE WASHER,M6
11	CLAMP
12	HYD. TUBE
13	3 WAY CONNECTION
14	ELBOW
15	TUBE NUT,M36 x 2
16	FERRULE

MalpasDirect - Replacement Tractors Parts

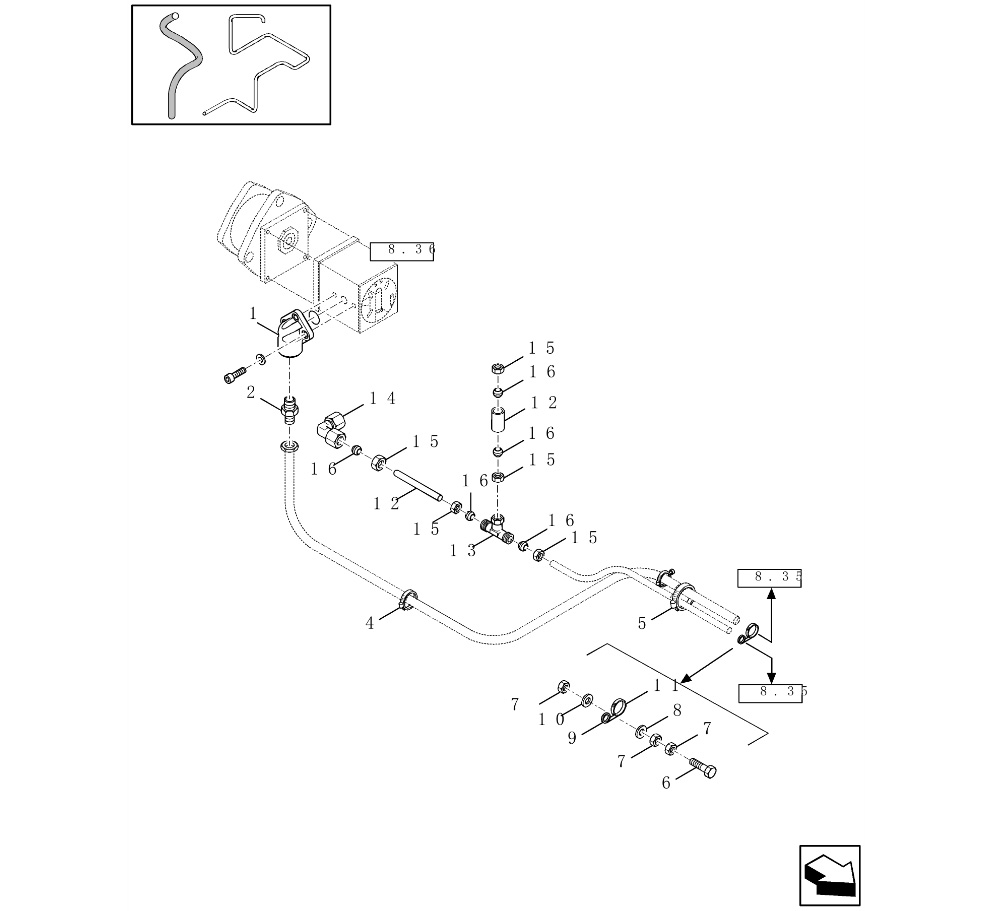

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84031794 FLANGE for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84036282 HYD CONNECTOR for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84035745 PROFILE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	514920 HOSE CLAMP,#16, 0.81/1.50 Type F Worm for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	4
5	529070 STRAP (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	396718 STRAP - this part has been superceded by 86633352 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	412559 BOLT,Hex, M6 x 50, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
7	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
8	140040 WASHER,M6 x 22 x 2 for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
9	9513271 CLAMP for all New Holland FX Forager Harvesters models 1" (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
11	455556 CLAMP for all New Holland FX Forager Harvesters models 1-1/4" (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9811333 HYD. TUBE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9507672 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	457573 ELBOW for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	412527 TUBE NUT,M36 x 2 for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	412528 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
