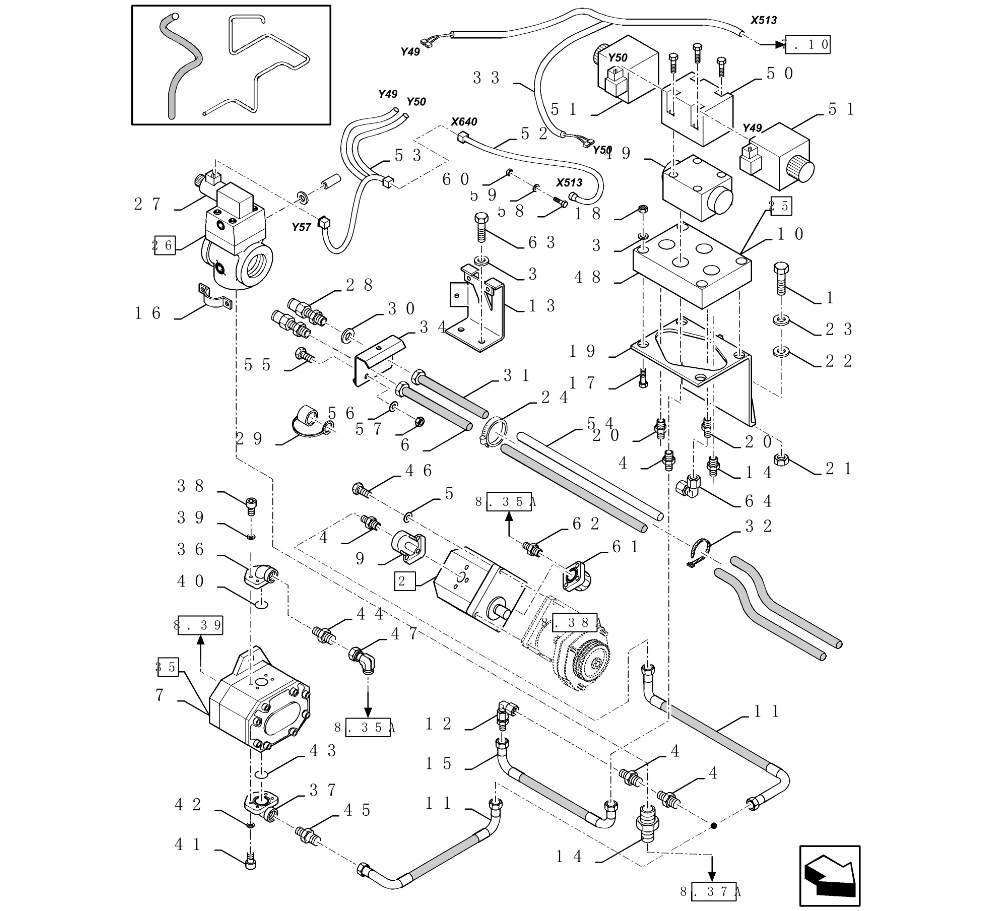

FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
1	BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd
2	HYDRAULIC PUMP
3	BELLEVILLE WASHER,M10
4	HYD CONNECTOR
5	SCREW
6	FLEXIBLE HOSE
7	SEAL KIT
8	SEAL KIT
9	HYD CONNECTOR
10	SEAL KIT
11	FLEXIBLE HOSE
11	FLEXIBLE HOSE
12	ELBOW
12	ELBOW
13	SUPPORT
14	HYD CONNECTOR
15	FLEXIBLE HOSE
16	CLAMP
17	HEX SOC SCREW,M10 x 50
18	NUT,M10, Cl 8
19	SUPPORT
20	HYD CONNECTOR
21	NUT,M16, Cl 8
22	BELLEVILLE WASHER,M16
23	WASHER,M16
24	CLAMP
25	HYDRAULIC VALVE
26	HYDRAULIC VALVE
26	HYDRAULIC VALVE
27	SEAL KIT
28	QUICK MALE COUPLING
29	DUST CAP
30	WASHER
31	FLEXIBLE HOSE
32	STRAP
32	STRAP (pack of 10)
33	WIRE HARNESS
33	WIRE HARNESS
34	BRACKET
35	HYDRAULIC PUMP
35	HYDRAULIC PUMP
36	FLANGE
37	FLANGE
38	SCREW
39	RING
40	O-RING
41	SCREW
42	RING
43	O-RING
44	HYD CONNECTOR
45	HYD CONNECTOR
46	LOCK WASHER,M12.5
46	LOCK WASHER,M12.5 (pack of 10)
46	LOCK WASHER,M12.5
47	HYD CONNECTOR
48	PLATE
49	HYDRAULIC VALVE
50	HYDRAULIC VALVE
51	ELECTROMAGNET
52	WIRE HARNESS
52	WIRE HARNESS
53	WIRE HARNESS
53	WIRE HARNESS
54	NOT SERVICED
55	BOLT,Hex, M8 x 25, 8.8
56	BELLEVILLE WASHER,M8
57	NUT,M8, Cl 8
58	SCREW,Cross Pan Hd, M3 x 16
59	LOCK WASHER,Serr, M3
60	NUT,M3, Cl 8 (pack of 10)
60	NUT,M3, Cl 8
61	FLANGE
62	HYD CONNECTOR
63	BOLT,Hex, M10 x 30, 8.8, Full Thd
64	HYD CONNECTOR

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	43168 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd - this part has been superceded by 86509867 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
1	86509867 BOLT,Hex, M16 x 2 x 40, 8.8, Full Thd (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84432997 HYDRAULIC PUMP - this part has been superceded by 84031793 (8) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	25
4	84036285 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84442155 SCREW for FX28/30/38/40/48/50/58/60 M12x35 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
6	84440644 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84062560 SEAL KIT - this part has been superceded by 87637040 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84036983 SEAL KIT - this part has been superceded by 87343311 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9813318 HYD CONNECTOR for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84037439 SEAL KIT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84440645 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84442059 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	85826815 ELBOW (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84032976 ELBOW - this part has been superceded by 85826815 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84442071 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84036286 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84442351 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84041020 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84015950 HEX SOC SCREW,M10 x 50 - this part has been superceded by 991981 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
18	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
19	84442069 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	89835290 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
23	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
24	9513271 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84069154 HYDRAULIC VALVE - this part has been superceded by 84031799 , Serial Range: (48-51) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84039549 HYDRAULIC VALVE for all New Holland FX Forager Harvesters models (27),NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84031797 HYDRAULIC VALVE for FX28/30/38/40/48/50/58/60 (27),FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84037412 SEAL KIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84032982 QUICK MALE COUPLING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	266220 DUST CAP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	36622 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84440643 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	396718 STRAP - this part has been superceded by 86633352 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	529070 STRAP (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
33	84035515 WIRE HARNESS for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	84057935 WIRE HARNESS for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,NOT FOR NA (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	84442056 BRACKET for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	84056943 HYDRAULIC PUMP for FX28/30/38/40/48/50/58/60 (7),FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	84045760 HYDRAULIC PUMP for FX28/30/38/40/48/50/58/60 (7),FOR FX58 ONLY,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	84045769 FLANGE for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	84045768 FLANGE for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	84062556 SCREW for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	84062558 RING for FX28/30/38/40/48/50/58/60 7/16",FOR FX58 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
40	84062579 O-RING for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	84062557 SCREW for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	84062559 RING for FX28/30/38/40/48/50/58/60 3/8",FOR FX58 ONLY (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
43	84062578 O-RING for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
44	84057528 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
45	84057606 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
46	80300913 LOCK WASHER,M12.5 - this part has been superceded by 12605779 FOR FX28-38-48 ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
46	12605779 LOCK WASHER,M12.5 (pack of 10) FOR FX28-38-48 ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
46	300913 LOCK WASHER,M12.5 - this part has been superceded by 12605779 FOR FX28-38-48 ONLY (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	84045770 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
48	84031800 PLATE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
49	84031799 HYDRAULIC VALVE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
50	84069153 HYDRAULIC VALVE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
51	84037440 ELECTROMAGNET for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
52	84439764 WIRE HARNESS for FX28/30/38/40/48/50/58/60 FOR FX28-38 ONLY,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
52	84057923 WIRE HARNESS for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
53	84057921 WIRE HARNESS for FX28/30/38/40/48/50/58/60 FOR FX58 ONLY,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
53	84002760 WIRE HARNESS for FX28/30/38/40/48/50/58/60 FOR FX28-38 ONLY,FOR NA ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
54	NS NOT SERVICED TUBE (Job Qty: 1)	-	-	-
55	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
56	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
57	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
58	86511816 SCREW,Cross Pan Hd, M3 x 16 for FX28/30/38/40/48/50/58/60 NOT FOR NA (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
59	412547 LOCK WASHER,Serr, M3 for all New Holland FX Forager Harvesters models NOT FOR NA (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
60	1175064 NUT,M3, Cl 8 (pack of 10) NOT FOR NA (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
60	86508812 NUT,M3, Cl 8 - this part has been superceded by 1175064 NOT FOR NA (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
61	84031794 FLANGE for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
62	84036282 HYD CONNECTOR for all New Holland FX Forager Harvesters models FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
63	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	10
64	447770 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
