FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
1	HYDRAULIC OIL RESERVOIR
2	HYDRAULIC OIL FILTER
3	FILTER-HYD
3	HYDRAULIC OIL FILTER
4	BOLT,Hex, M8 x 25, 8.8
5	BELLEVILLE WASHER,M8
6	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
7	HYD CONNECTOR
8	HOSE CLAMP,M25-40, Worm
9	HOSE,25.40 mm ID x 3930.00 mm, SAE J517-100R4
10	DIPSTICK
11	SEAL KIT
11	SEAL KIT
12	BOLT,Hex, M5 x 20, 8.8, Full Thd
13	BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN
14	SEALING WASHER
15	SUPPORT
16	PLUG
17	SEAL
17	SEAL
18	BOLT
19	BELLEVILLE WASHER,M10
20	O-RING,0.924" ID x 0.116" Width
21	FLANGE
22	WASHER
23	SCREW,Hex Soc Hd, M6 x 20, 8.8
24	SCREW
25	HOSE CLAMP,M35-52, Worm
25	HOSE CLAMP,M35-52, Worm (pack of 2)
26	HOSE,31.80 mm ID x 3600.00 mm, SAE 100R4
26	FLEXIBLE HOSE
27	CLAMP
28	CLAMP
29	BOLT,Hex, M8 x 40, 8.8, Full Thd
30	PLATE
31	WASHER,M10 x 34 x 3
32	HYD CONNECTOR
33	SEAL
34	BANJO BOLT,M18 x 1.5 x 32
35	HOSE,16.00 mm ID x 2000.00 mm
36	HYD CONNECTOR
37	CLAMP
38	CLAMP

MalpasDirect - Replacement Tractors Parts

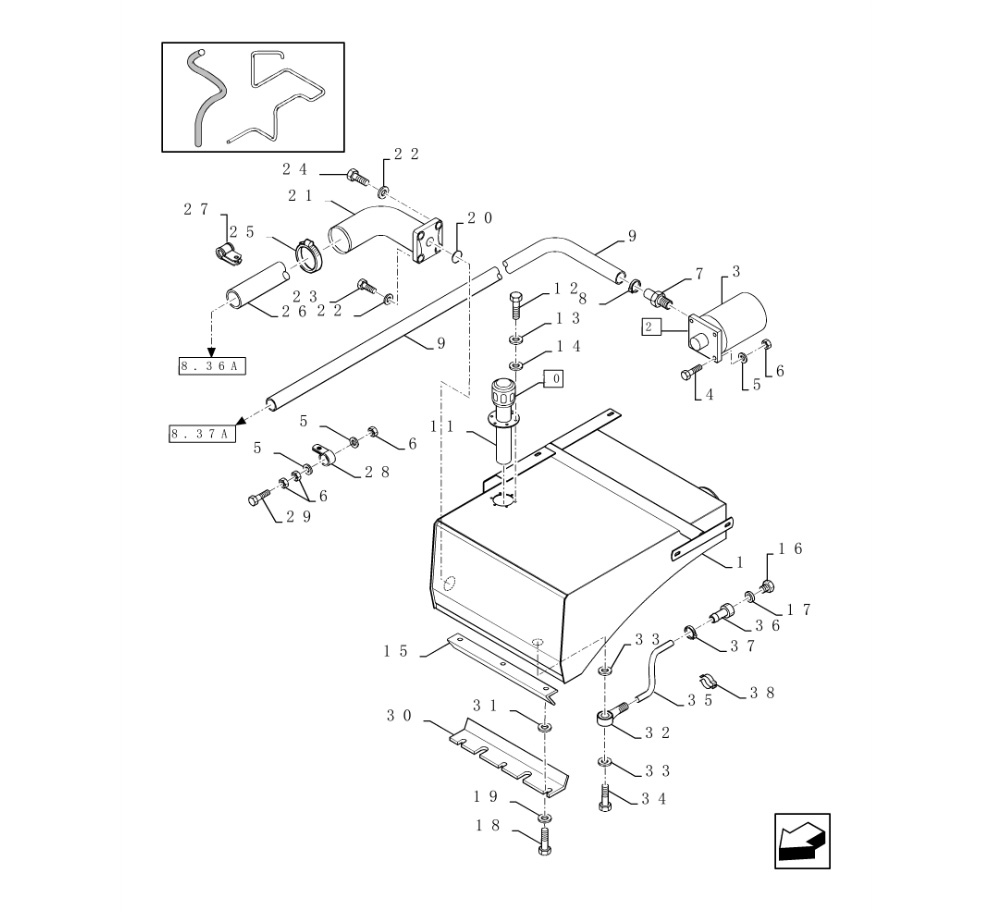

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84817097 HYDRAULIC OIL RESERVOIR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	84038051 HYDRAULIC OIL FILTER for all New Holland FX Forager Harvesters models (3) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84239756 FILTER-HYD for all New Holland FX Forager Harvesters models MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9814477 HYDRAULIC OIL FILTER - this part has been superceded by 84239756 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: AR) In Stock Shipping Costs...	Call Ex VAT	1
6	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	457417 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	382527 HOSE CLAMP,M25-40, Worm - this part has been superceded by 514920 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84036291 HOSE,25.40 mm ID x 3930.00 mm, SAE J517-100R4 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84036281 DIPSTICK for all New Holland FX Forager Harvesters models (11) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84037210 SEAL KIT - this part has been superceded by 87054107 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	87054107 SEAL KIT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	120098 BOLT,Hex, M5 x 20, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
13	322356 BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
14	373817 SEALING WASHER for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	84817096 SUPPORT for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	150060 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9511034 SEAL - this part has been superceded by 722441 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	J912889 SEAL - this part has been superceded by 722441 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	412256 BOLT - this part has been superceded by 11106231 M10x25 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	25
20	167266 O-RING,0.924" ID x 0.116" Width for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
21	9817438 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	140044 WASHER - this part has been superceded by 322357 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84089718 SCREW,Hex Soc Hd, M6 x 20, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
24	356464 SCREW for all New Holland FX Forager Harvesters models M6x50 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	382528 HOSE CLAMP,M35-52, Worm - this part has been superceded by 513309 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	513309 HOSE CLAMP,M35-52, Worm (pack of 2) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
26	84032977 HOSE,31.80 mm ID x 3600.00 mm, SAE 100R4 for all New Holland FX Forager Harvesters models FOR FX58 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84442404 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 FOR FX28-38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	455556 CLAMP for all New Holland FX Forager Harvesters models 1-1/4" (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	9513271 CLAMP for all New Holland FX Forager Harvesters models 1" (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	120106 BOLT,Hex, M8 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
30	84062053 PLATE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	140042 WASHER,M10 x 34 x 3 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	5
32	80326078 HYD CONNECTOR - this part has been superceded by 326078 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	220122 SEAL for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
34	84100235 BANJO BOLT,M18 x 1.5 x 32 for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	9516094 HOSE,16.00 mm ID x 2000.00 mm for FX28/30/38/40/48/50/58/60 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	326079 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	326082 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	9511662 CLAMP for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
