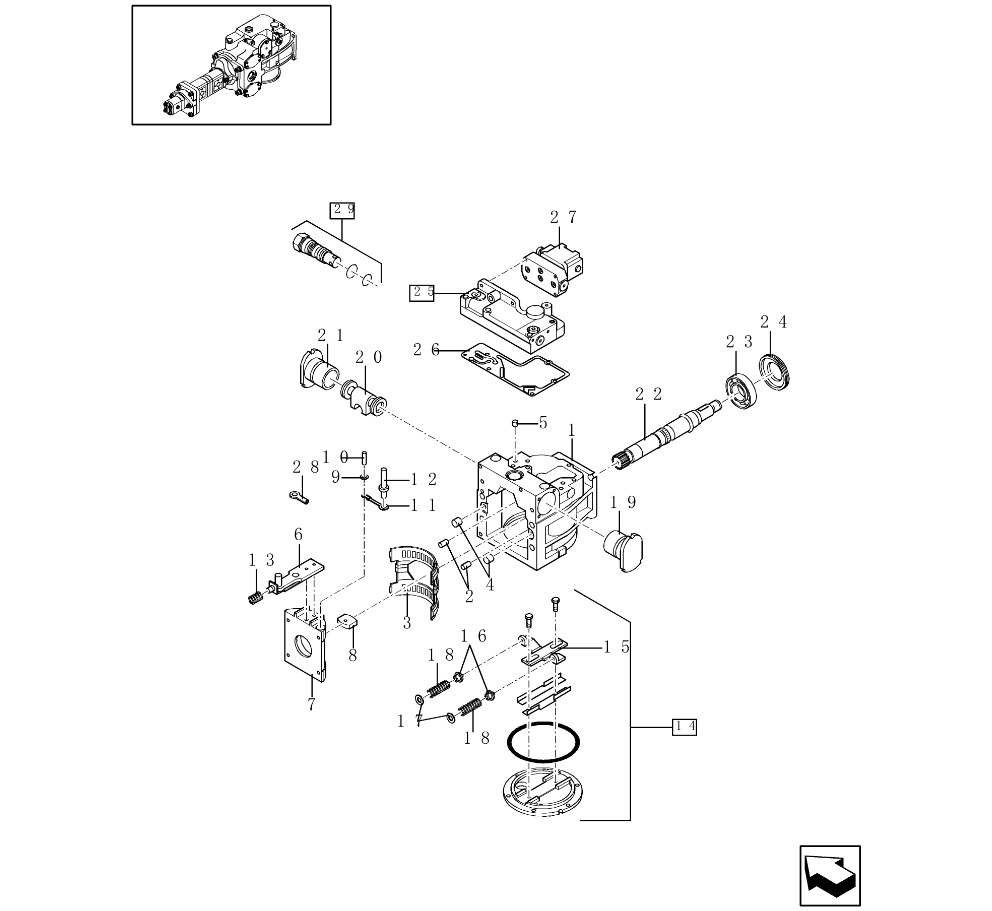

FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
	HYDROSTATIC PUMP
1	SEAL KIT
1	SEAL KIT
	REMAN-HYDROSTATIC PUMP
2	PIN
	CORE-HYDROSTATIC PUMP
3	BEARING ASSY
4	PIN
5	HYDRAULIC OIL FILTER
6	LEVER
7	SUPPORT
8	GUIDE
9	DISC
9	DISC
10	PIN
10	PIN
11	CLIP
11	CLIP
12	PIN
12	PIN
13	SPRING
14	COVER
15	LEVER
16	RETAINER
17	DISC
17	DISC
18	SPRING
19	SHAFT
20	SHAFT
21	GUIDE
22	SHAFT
23	BEARING ASSY
24	RING
25	HYDRAULIC VALVE
26	GASKET
27	ELECTROMAGNET
27	ELECTROMAGNET
28	LEVER
28	LEVER
29	HYDRAULIC VALVE
29	HYDRAULIC VALVE

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
	84814889 HYDROSTATIC PUMP for FX28/300/375/38/450/48/58 100CC, Incl. figs. 8.17 and 8.18 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	89813070 SEAL KIT REMANUFACTURED HYDROSTATIC PUMP - NA Only (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	9813070 SEAL KIT - this part has been superceded by 89813070 REMANUFACTURED HYDROSTATIC PUMP - NA Only (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	87019744 REMAN-HYDROSTATIC PUMP - this part is no longer serviced REMANUFACTURED HYDROSTATIC PUMP - NA Only (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	9813096 PIN for FX28/300/375/38/450/48/58 Return Number, HYDROSTATIC PUMP - NA Only (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
	87019745 CORE-HYDROSTATIC PUMP - this part is no longer serviced Return Number, HYDROSTATIC PUMP - NA Only (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9813036 BEARING ASSY for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	165179 PIN - this part is no longer serviced (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	9813069 HYDRAULIC OIL FILTER for FX28/300/375/38/450/48/58 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84042129 LEVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84042130 SUPPORT for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84042131 GUIDE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	89813094 DISC for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9813094 DISC - this part has been superceded by 89813094 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9813095 PIN - this part has been superceded by 89813095 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	89813095 PIN for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	89813092 CLIP for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	9813092 CLIP - this part has been superceded by 89813092 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9813093 PIN - this part has been superceded by 89813093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	89813093 PIN for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9813048 SPRING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84043592 COVER for FX28/300/375/38/450/48/58 , Serial Range: (15-18) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84043593 LEVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9813034 RETAINER for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	9813038 DISC - this part has been superceded by 89813038 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	89813038 DISC for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	9813039 SPRING for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84042134 SHAFT for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84043594 SHAFT for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	9813044 GUIDE for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84031759 SHAFT for FX28/300/375/38/450/48/58 23T (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	9813010 BEARING ASSY - this part has been superceded by LB00645 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	9811985 RING - this part has been superceded by 47378920 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	84041319 HYDRAULIC VALVE - this part has been superceded by 84019066 (26, 27) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84041983 GASKET - this part has been superceded by 86019296 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84041360 ELECTROMAGNET - this part has been superceded by 84806695 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84806695 ELECTROMAGNET (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	89813045 LEVER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	9813045 LEVER - this part has been superceded by 89813045 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	89832440 HYDRAULIC VALVE for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	9832440 HYDRAULIC VALVE - this part has been superceded by 89832440 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
