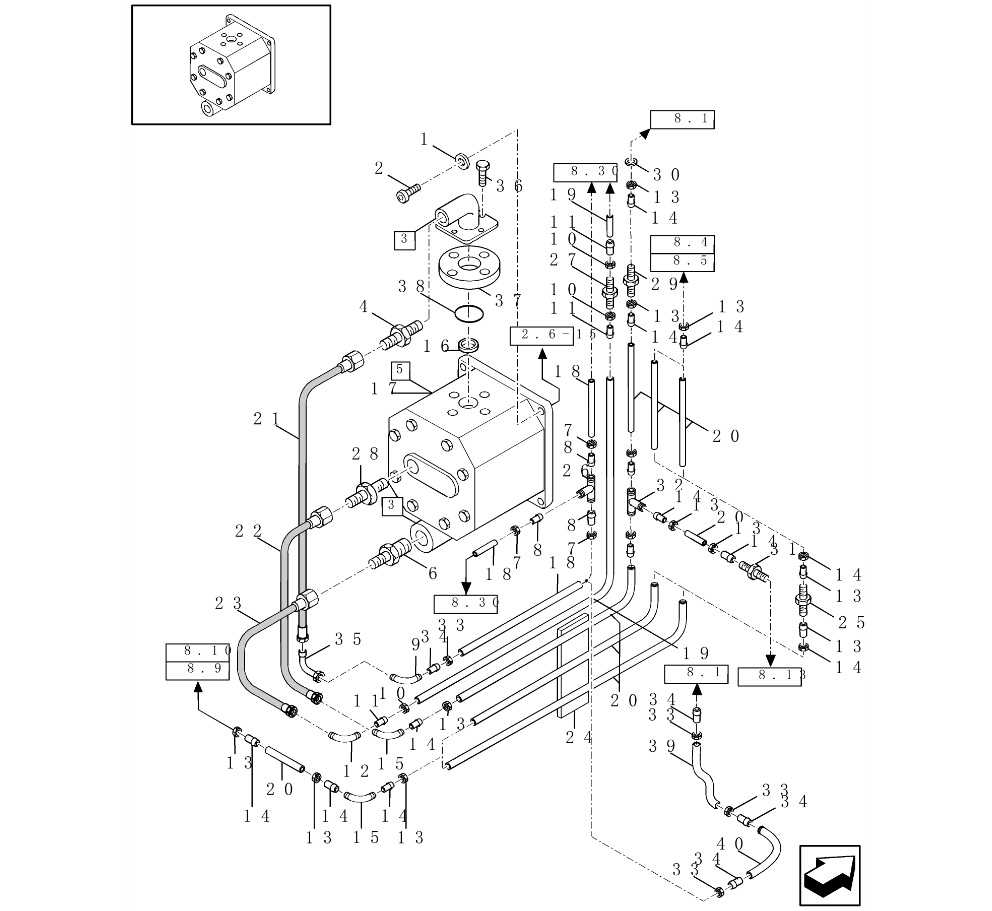

FX38 - (9/98-) Hydraulic Systems

Key

Ref	Description
1	LOCK WASHER,5/16"
1	LOCK WASHER,5/16"
2	BOLT,Hex, M8 x 35, 8.8
3	HYD CONNECTOR
4	HYD CONNECTOR
4	HYD CONNECTOR
5	HYDRAULIC MOTOR
6	HYD CONNECTOR
7	TUBE NUT
8	FERRULE
9	ELBOW
9	HYD CONNECTOR
10	TUBE NUT,M24 x 1.5
11	FERRULE
12	ELBOW
13	TUBE NUT
14	FERRULE
15	ELBOW
16	SEALING RING
17	SEAL KIT
18	HYD. TUBE,2000 mm Length
18	HYD. TUBE
19	HYD. TUBE,2000 mm Length
20	HYD. TUBE,2000 mm Length
21	HYDRAULIC HOSE
21	FLEXIBLE HOSE
22	HYDRAULIC HOSE
23	FLEXIBLE HOSE
23	FLEXIBLE HOSE
24	SUPPORT
25	HYD CONNECTOR
25	UNION
26	3 WAY CONNECTION
27	NIPPLE,M24 x 1.5
28	HYD CONNECTOR
29	HYD CONNECTOR
30	WASHER
31	HYD CONNECTOR
32	3 WAY CONNECTION
33	TUBE NUT
33	TUBE NUT,M36 x 2
34	FERRULE
34	FERRULE
35	ELBOW
36	SCREW,Soc Hd, M8 x 35
36	SCREW,Soc Hd, M8 x 35
37	FLANGE
38	O-RING
39	HYD. TUBE
40	HYD CONNECTOR

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Hydraulic Systems /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	80681 LOCK WASHER,5/16" - this part has been superceded by 83990583 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	83990583 LOCK WASHER,5/16" (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	412479 BOLT,Hex, M8 x 35, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	9813318 HYD CONNECTOR for all New Holland FX Forager Harvesters models (16) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	89835290 HYD CONNECTOR for all New Holland FX Forager Harvesters models , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84036286 HYD CONNECTOR for all New Holland FX Forager Harvesters models , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84043509 HYDRAULIC MOTOR for FX28/30/38/40/48/50/58/60 (17) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	89814768 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	335170 TUBE NUT for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	335168 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
9	84014048 ELBOW for FX28/300/375/38/450/48/58 18MM, Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84431356 HYD CONNECTOR for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	335171 TUBE NUT,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	335169 FERRULE for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	84014047 ELBOW for all New Holland FX Forager Harvesters models 16MM (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	86548975 TUBE NUT for all New Holland FX Forager Harvesters models M10 (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
14	150014 FERRULE for all New Holland FX Forager Harvesters models 10MM (Job Qty: 16) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
15	84007700 ELBOW for all New Holland FX Forager Harvesters models 10MM (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84814915 SEALING RING for all New Holland FX Forager Harvesters models SEALRING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84022558 SEAL KIT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	371534 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D=18, Serial Range: -C173 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	9811333 HYD. TUBE for all New Holland FX Forager Harvesters models D=28, Start Serial: D174 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	371536 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D=16 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	371539 HYD. TUBE,2000 mm Length for all New Holland FX Forager Harvesters models D=10 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84017634 HYDRAULIC HOSE for FX28/300/375/38/450/48/58 , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84989754 FLEXIBLE HOSE for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84017635 HYDRAULIC HOSE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	89815904 FLEXIBLE HOSE (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	9815904 FLEXIBLE HOSE - this part has been superceded by 89815904 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	434097 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
25	150017 HYD CONNECTOR - this part has been superceded by 47499003 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	47499003 UNION - this part has been superceded by 47499003 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	379431 3 WAY CONNECTION for all New Holland FX Forager Harvesters models , Serial Range: -C173 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	335174 NIPPLE,M24 x 1.5 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	420522 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84021159 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	9832305 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
31	84064711 HYD CONNECTOR for FX28/38/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	395472 3 WAY CONNECTION for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	335170 TUBE NUT for all New Holland FX Forager Harvesters models M18, Serial Range: -C173 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	412527 TUBE NUT,M36 x 2 for all New Holland FX Forager Harvesters models M28 Tube OD, Start Serial: D174 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	335168 FERRULE for all New Holland FX Forager Harvesters models 18MM, Serial Range: -C173 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
34	412528 FERRULE for all New Holland FX Forager Harvesters models 28MM, Start Serial: D174 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	457573 ELBOW for all New Holland FX Forager Harvesters models , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	14306624 SCREW,Soc Hd, M8 x 35 for all New Holland FX Forager Harvesters models , Start Serial: D174 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
36	84000811 SCREW,Soc Hd, M8 x 35 - this part has been superceded by 14306624 , Start Serial: D174 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	84989886 FLANGE for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	84022706 O-RING for FX28/30/38/40/48/50/58/60 , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	9811333 HYD. TUBE for all New Holland FX Forager Harvesters models , Start Serial: D174 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	84004868 HYD CONNECTOR for all New Holland FX Forager Harvesters models , Start Serial: D174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
