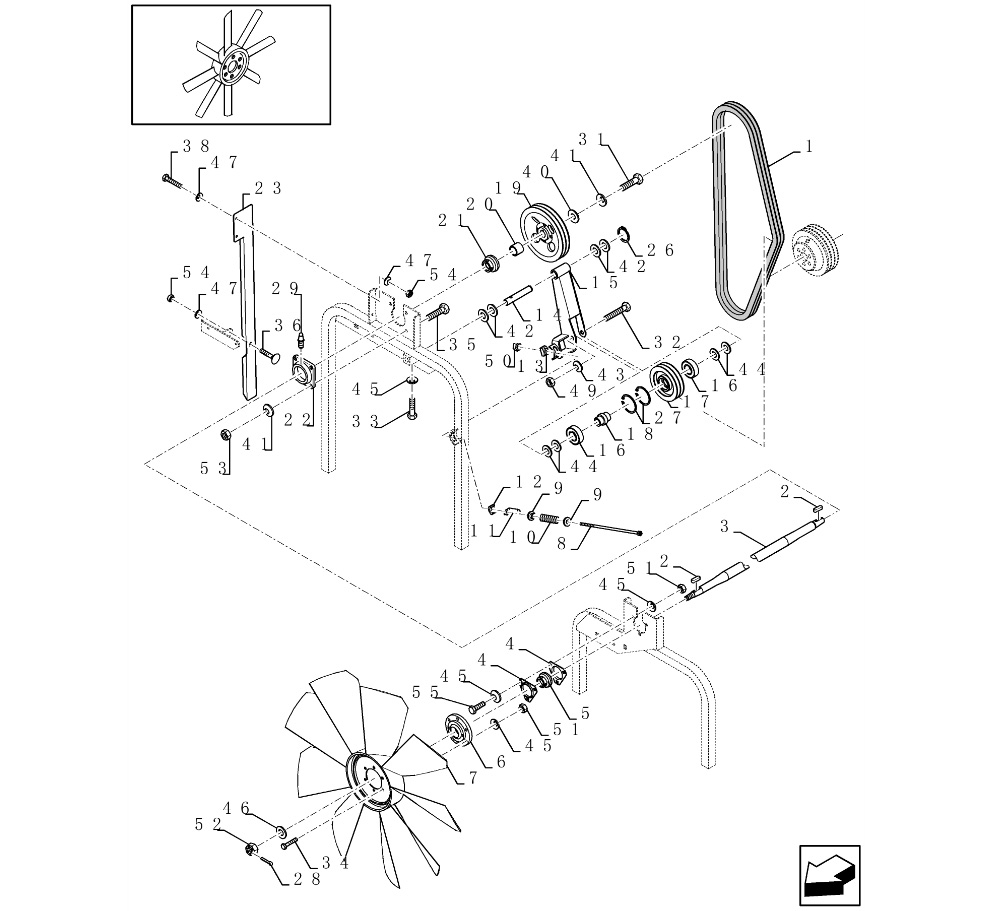

FX38 - (9/98-) Engine

Key

Ref	Description
1	SET OF 2 BELTS,2460.00 mm L, 3 Ribs
2	KEY,M8 x 7 x 40, Par
3	SHAFT
3	SHAFT
4	FLANGE
4	HALF-FLANGE
5	BEARING, BALL
5	BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm
6	FLANGE
7	FAN
8	BOLT,Hex, M10 x 370, 8.8, Full Thd
9	BUSHING
10	SPRING
11	INDICATOR
12	GUIDE
13	GUIDE
14	PIN
15	ARM
16	BALL BEARING
16	BALL BEARING,25 mm ID x 52 mm OD x 15 mm
17	PULLEY
18	HUB
19	PULLEY
20	BUSHING
21	BEARING ASSY
21	BALL BEARING
22	BEARING HOUSING
23	SUPPORT
26	CIRCLIP,M25, Ext
27	CIRCLIP,M52, Int
27	CIRCLIP,M52, Int
28	COTTER PIN,M4 x 40
28	COTTER PIN,M4 x 40 (pack of 10)
29	LUBE NIPPLE
31	BOLT,Hex, M12 x 35, 8.8, Full Thd
32	BOLT,Hex, M16 x 80, 8.8
33	BOLT,Hex, M10 x 30, 8.8, Full Thd
34	BOLT,Hex, M10 x 40, 8.8, Full Thd
35	BOLT,Hex, M12 x 40, 8.8, Full Thd
36	CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd
38	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND
40	WASHER,M13 x 38 x 6 Thk
41	BELLEVILLE WASHER,Belleville, M12
42	WASHER,M26 x 38 x 1 Thk
43	BELLEVILLE WASHER,M16
44	WASHER,M16
45	BELLEVILLE WASHER,M10
46	WASHER
47	BELLEVILLE WASHER,M8
49	NUT,M16, Cl 8
50	LOCK NUT
50	NUT
51	NUT,M10, Cl 8
52	SLOTTED NUT,M20 x 1.5, Cl 8
53	NUT,M12, Cl 8
54	NUT,M8, Cl 8
55	CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84073615 SET OF 2 BELTS,2460.00 mm L, 3 Ribs for FX28/30/38/40/48/50/58/60 V-Belt,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	170008 KEY,M8 x 7 x 40, Par for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	84077497 SHAFT for FX28/30/38/40/48/50 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84077490 SHAFT for FX28/30/38/40/48/50 FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86548970 FLANGE - this part has been superceded by 84320112 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	84320112 HALF-FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	87044350 BEARING, BALL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84069440 BALL BEARING,30 mm ID x 62 mm OD x 48.4 mm - this part has been superceded by 87044350 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84806885 FLANGE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84077270 FAN for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84072445 BOLT,Hex, M10 x 370, 8.8, Full Thd for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84076699 BUSHING for FX28/30/38/40/48/50/58/60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	66317 SPRING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84439578 INDICATOR for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	442398 GUIDE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	754131 GUIDE for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84077726 PIN for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84434388 ARM for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84188095 BALL BEARING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	443898 BALL BEARING,25 mm ID x 52 mm OD x 15 mm (this part has been superseded) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84437137 PULLEY for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84017221 HUB for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	84075109 PULLEY for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84075290 BUSHING for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84069410 BEARING ASSY - this part has been superceded by 756965 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	756965 BALL BEARING - this part has been superceded by 756965 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84437150 BEARING HOUSING for FX28/30/38/40/48/50/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84433245 SUPPORT for FX28/30/38/40/48/50 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	370002 CIRCLIP,M25, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	370011 CIRCLIP,M52, Int - this part has been superceded by 33915 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	33915 CIRCLIP,M52, Int (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
28	300595 COTTER PIN,M4 x 40 - this part has been superceded by 10733901 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	10733901 COTTER PIN,M4 x 40 (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	9838669 LUBE NIPPLE - this part has been superceded by 84062065 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
32	120093 BOLT,Hex, M16 x 80, 8.8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	43140 BOLT,Hex, M10 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
34	120112 BOLT,Hex, M10 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
35	86629541 BOLT,Hex, M12 x 40, 8.8, Full Thd for FX28/30/38/40/48/50/58/60 (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	5
36	86507486 CARRIAGE BOLT,Short NK, M8 x 20, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
38	43128 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
40	140085 WASHER,M13 x 38 x 6 Thk for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
41	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	10
42	140103 WASHER,M26 x 38 x 1 Thk - this part has been superceded by 140229 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
43	140048 BELLEVILLE WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
44	378246 WASHER,M16 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
45	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 10) In Stock Shipping Costs...	Call Ex VAT	25
46	9506874 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
47	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 5) In Stock Shipping Costs...	Call Ex VAT	1
49	100020 NUT,M16, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
50	190003888452 LOCK NUT - this part has been superceded by 190003888452 M10 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
50	86514720 NUT - this part has been superceded by 190003888452 M10 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
51	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 9) In Stock Shipping Costs...	Call Ex VAT	10
52	412144 SLOTTED NUT,M20 x 1.5, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
53	9706685 NUT,M12, Cl 8 for FX28/30/38/40/48/50/58/60 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
54	89706690 NUT,M8, Cl 8 - this part has been superceded by 43362 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
55	86512446 CARRIAGE BOLT,Short NK, M10 x 30, Cl8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	5
