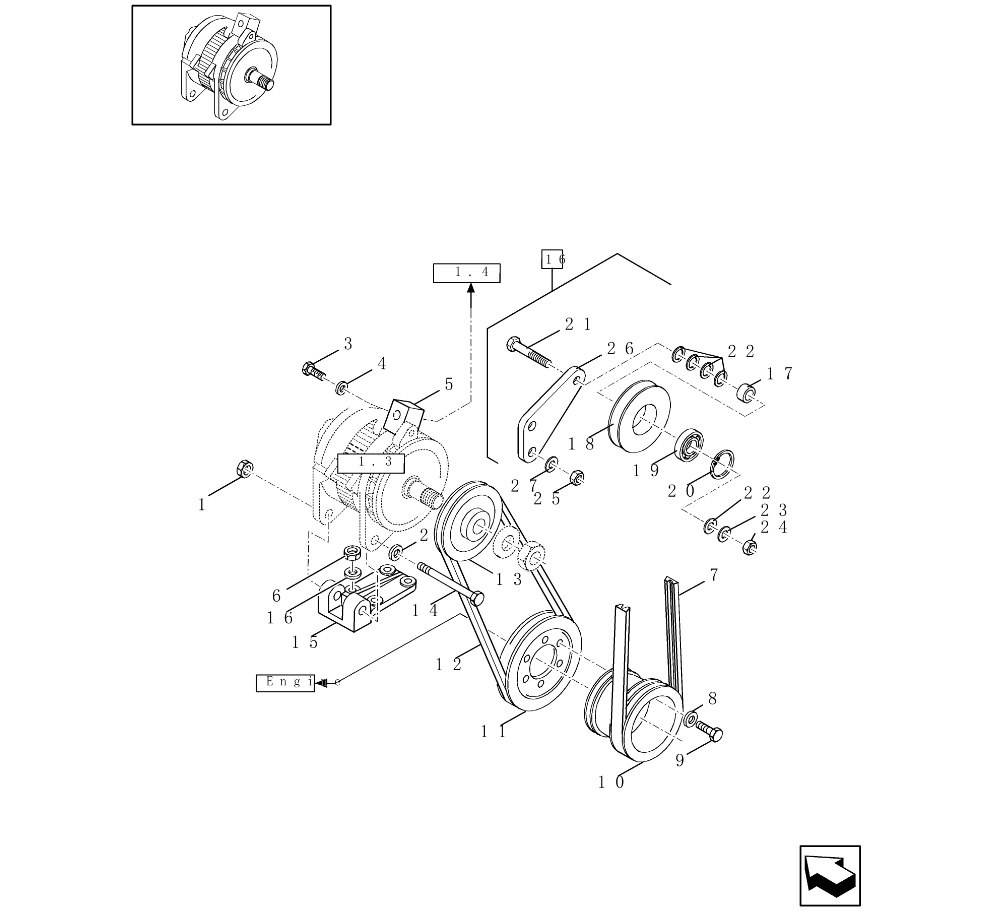

FX38 - (9/98-) Engine

Key

Ref	Description
1	NUT,1/2"-13, GC (pack of 10)
1	NUT,1/2"-13, GC
2	WASHER
2	WASHER,M13 x 28 x 4, HT
3	SCREW,Hex, 1/2"-13 x 1 3/4", G5
4	LOCK WASHER,1/2"
5	BLOCK
6	NUT
7	SET OF 2 BELTS,2335.00 mm L
7	BELT SET-FAN FX40/50
8	BELLEVILLE WASHER,Belleville, M12
9	BOLT,Hex, M12 x 1.25 x 60, 8.8
10	PULLEY
11	PULLEY
12	BELT,13.00 mm W x 1875.00 mm L
13	PULLEY
14	BOLT,Hex, 1/2"-13 x 6", G5
15	SUPPORT
15	SUPPORT
16	CONVERSION KIT
17	SHAFT
18	PULLEY
19	BALL BEARING,17 mm ID x 47 mm OD x 14 mm
20	SNAP RING,M47, Int
21	BOLT,Hex, M10 x 60, 8.8
22	WASHER,M10 x 24 x 2 Thk
23	BELLEVILLE WASHER,M10
24	NUT,M10, Cl 8
25	NUT,M12 x 1.25, Cl 10
25	NUT,M12 x 1.25, Cl 10
26	SUPPORT
27	BELLEVILLE WASHER,Belleville, M12

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	86992215 NUT,1/2"-13, GC (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
1	88871 NUT,1/2"-13, GC - this part has been superceded by 86992215 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	86625256 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
2	394630 WASHER,M13 x 28 x 4, HT - this part has been superceded by 86625256 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	9707516 SCREW,Hex, 1/2"-13 x 1 3/4", G5 for FX28/300/375/38/450/48/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	80679 LOCK WASHER,1/2" for FX28/38/48/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
5	84005658 BLOCK for FX28/300/375/38/450/48/58/60 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	89837227 NUT for FX28/300/375/38/450/48/58 M10x1.25 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
7	84043106 SET OF 2 BELTS,2335.00 mm L for FX28/300/375/38/450/48/58 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84057609 BELT SET-FAN FX40/50 for FX28/30/38/40/48/50/58/60 V-Belt,FOR GERMANY ONLY,FOR FX48 ONLY,MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 6) In Stock Shipping Costs...	Call Ex VAT	10
9	84011757 BOLT,Hex, M12 x 1.25 x 60, 8.8 - this part is no longer serviced M12x1.25x60 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84045159 PULLEY for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84022808 PULLEY for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84022807 BELT,13.00 mm W x 1875.00 mm L for FX28/300/375/38/450/48/58 MAINTENANCE PART (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84005585 PULLEY - this part has been superceded by 84806891 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	86000020 BOLT,Hex, 1/2"-13 x 6", G5 for FX28/300/375/38/450/48/58/60 .50"x6.0" (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	89833678 SUPPORT - this part has been superceded by 9833678 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9833678 SUPPORT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84076597 CONVERSION KIT for FX28/38/48 , Serial Range: (17-27),KIT TO AVOID EXCESSIVE VIBRATIONS OF ALTERNATOR BELT.FOR REBUILDING MACHINES BEFORE ---128001 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84071567 SHAFT for FX28/38/48 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	922046 PULLEY for FX28/38/48 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	727874 BALL BEARING,17 mm ID x 47 mm OD x 14 mm for FX28/38/48 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	300647 SNAP RING,M47, Int for FX28/38/48 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
21	120070 BOLT,Hex, M10 x 60, 8.8 for FX28/30/38/40/48/50/60 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
22	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models , Start Serial: D128 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
23	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models , Start Serial: D128 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	25
24	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models , Start Serial: D128 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	10
25	16101524 NUT,M12 x 1.25, Cl 10 M12, Start Serial: D128 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	379752 NUT,M12 x 1.25, Cl 10 - this part has been superceded by 16101524 M12, Start Serial: D128 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84076566 SUPPORT for FX28/38/48 , Start Serial: D128 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models , Start Serial: D128 (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
