FX38 - (9/98-) Engine

Key

Ref	Description
1	ACTUATOR
1	ACTUATOR
2	BOLT,Hex, M8 x 25, 8.8
3	BELLEVILLE WASHER,M8
4	NUT,M6, Cl 10
4	NUT M6 HEX
5	SCREW,Hex, M6 x 60, 8.8
6	BOLT
6	SCREW
7	BELLEVILLE WASHER,M10
8	SUPPORT
8	SUPPORT
9	BOLT,Hex, M8 x 60, 8.8
9	BOLT,Hex, M8 x 70, 8.8
9	BOLT,Hex, M8 x 70, 8.8
10	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
11	SCREW,Hex, M6 x 40, 8.8, Full Thd
12	LEVER
13	NUT,M10, Cl 8
14	SPRING
15	SPRING
15	SPRING
16	WASHER,M10 x 24 x 2 Thk
17	THREADED TIE-ROD
18	BOLT,Hex, M6 x 16, 8.8
19	BELLEVILLE WASHER,M6
20	LINK
20	LINK
21	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2)
21	SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND
22	STRAP (pack of 10)
22	STRAP
23	SCREW,Hex, M6 x 40, 8.8, Full Thd
24	SLEEVE
25	NUT,M6 x 1, Cl 8
26	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
27	DAMPER
28	BELLEVILLE WASHER,M8

MalpasDirect - Replacement Tractors Parts

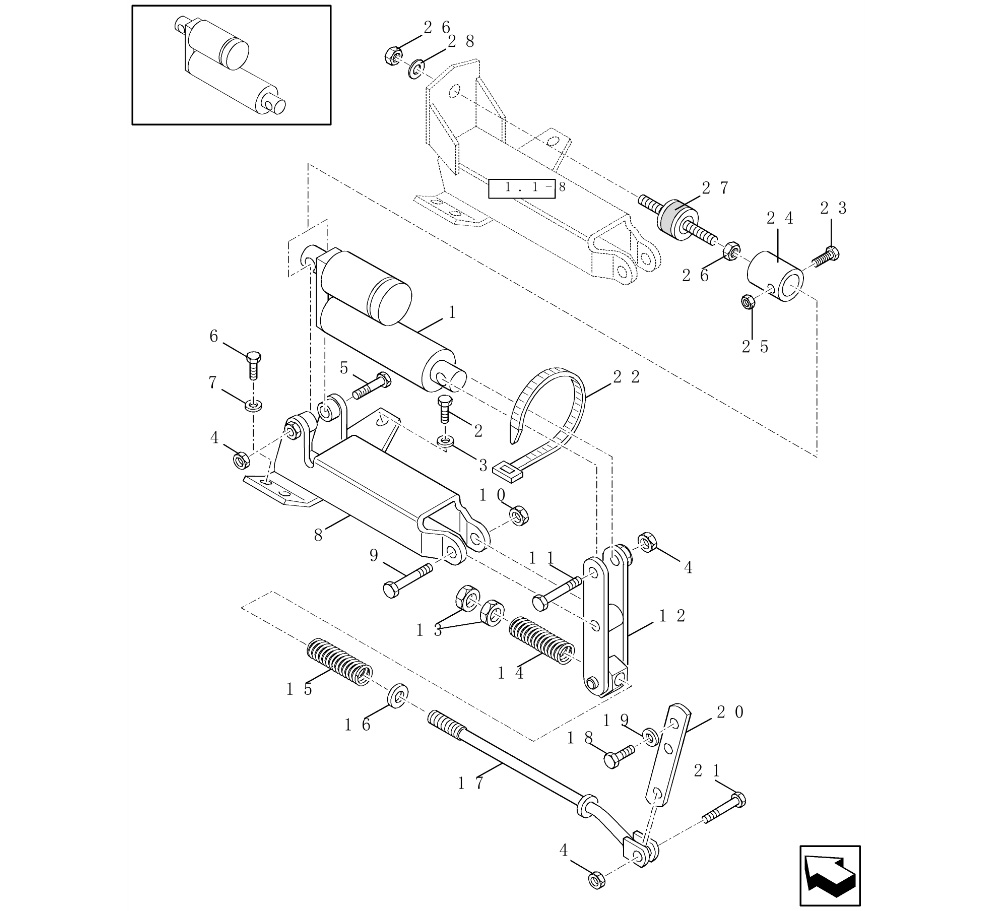

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84056423 ACTUATOR for FX28/38/48/58 , Serial Range: -C135 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	84077509 ACTUATOR for FX28/38/48/58 , Start Serial: D136 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	43127 BOLT,Hex, M8 x 25, 8.8 - superseded to 16043624 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
4	15896221 NUT,M6, Cl 10 - this part has been superceded by 86500688 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86500688 NUT M6 HEX for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
5	338413 SCREW,Hex, M6 x 60, 8.8 for FX28/30/300/375/38/40/450/48/50/60 , Serial Range: -C092 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
6	412160 BOLT for FX28/300/375/38/450/48/58 M10x1,25x30 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	80412160 SCREW - this part has been superceded by 412160 M10x1,25x30 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	25
8	84019792 SUPPORT for FX28/300/375/38/450/48 , Serial Range: -C092 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84043931 SUPPORT for FX28/38/48 , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	120061 BOLT,Hex, M8 x 60, 8.8 for all New Holland FX Forager Harvesters models , Serial Range: -C092 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	120062 BOLT,Hex, M8 x 70, 8.8 - this part has been superceded by 7120024 , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	7120024 BOLT,Hex, M8 x 70, 8.8 , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	120102 SCREW,Hex, M6 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	84019830 LEVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	100016 NUT,M10, Cl 8 for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
14	355988 SPRING for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	80918027 SPRING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	918027 SPRING - this part has been superceded by 80918027 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	378244 WASHER,M10 x 24 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
17	84026232 THREADED TIE-ROD for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	120099 BOLT,Hex, M6 x 16, 8.8 - this part has been superceded by 86508568 M6x15 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	322357 BELLEVILLE WASHER,M6 for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
20	84026823 LINK for FX28/300/375/38/450/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84026824 LINK for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	87317695 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND (pack of 2) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	43117 SCREW,Hex, M6 x 1 x 30.00mm, Cl 8.8, ZND - this part has been superceded by 87317695 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	529070 STRAP (pack of 10) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	396718 STRAP - this part has been superceded by 86633352 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	120102 SCREW,Hex, M6 x 40, 8.8, Full Thd for all New Holland FX Forager Harvesters models , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
24	84069448 SLEEVE for FX28/38/48 , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	353308 NUT,M6 x 1, Cl 8 for all New Holland FX Forager Harvesters models , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
26	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 , Start Serial: D093 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	393802 DAMPER for FX28/300/375/38/450/48/58 , Start Serial: D093 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models , Start Serial: D093 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
