FX38 - (9/98-) Engine

Key

Ref	Description
1	TURBOCHARGER
1	TURBOCHARGER
1	TURBOCHARGER
2	SEAL
2	SEAL
3	SCREW
4	WASHER
5	NUT,M10 x 1.25, Cl 10
6	STUD
6	STUD
7	RIGID TUBE
7	RIGID TUBE
8	GASKET
8	GASKET
9	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, DAC
9	SCREW
10	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
10	WASHER
10	WASHER
10	WASHER
11	RIGID TUBE
11	RIGID TUBE
12	KIT
12	KIT
13	HOSE
14	HOSE CLAMP
15	PLATE
16	GASKET
17	SEAL
18	NUT
19	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
20	SCREW,Hex, M8 x 25.00mm, Cl 8.8, DAC
21	HOSE CLIP
21	HOSE CLIP
22	ELBOW
23	NUT
24	GASKET
25	GASKET
26	SCREW
27	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
27	WASHER
27	WASHER
27	WASHER
28	HYD CONNECTOR
29	SEAL,28.40mm ID x 36.00mm OD x 1.50mm, Copper
30	HYD CONNECTOR
31	GASKET
32	BANJO BOLT
33	RUBBER RING
34	COLLAR
35	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
36	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, DAC
37	SUPPORT
38	COLLAR
38	COLLAR
39	O-RING,61.6mm ID x 2.62" Width
39	GASKET
40	ELBOW
41	SPACER
42	RING

MalpasDirect - Replacement Tractors Parts

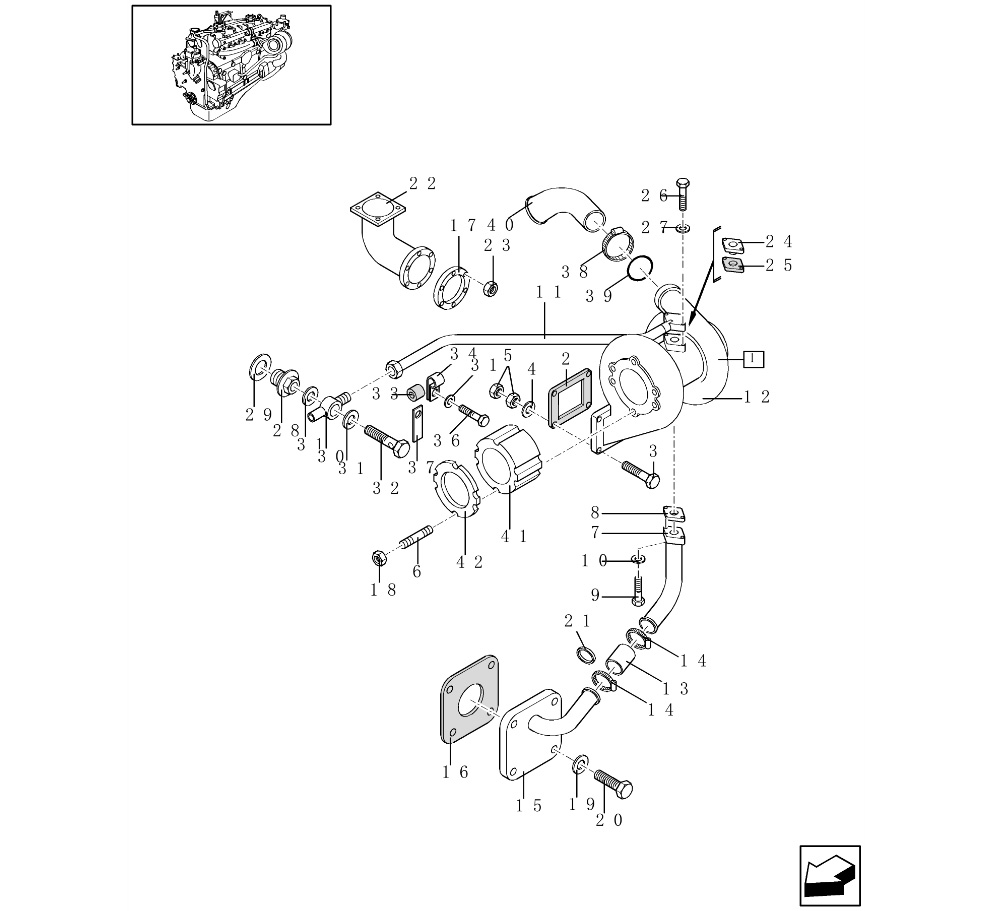

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	500373233 TURBOCHARGER for FX28/38/48 (12),FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	99481116 TURBOCHARGER - this part has been superceded by 500373233 (12),FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	99462919 TURBOCHARGER for FX28/300/375/38/450/48 (12),FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	4874100 SEAL (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	4512366 SEAL - this part has been superceded by 4874100 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	98480687 SCREW for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	14499521 WASHER for FX28/38/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	12164721 NUT,M10 x 1.25, Cl 10 for FX28/300/375/38/450/48 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
6	500314985 STUD for FX28/38/48 FOR FX28 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	4731721 STUD - this part has been superceded by 500314985 FOR FX38-48 ONLY (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	99462922 RIGID TUBE for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	99462923 RIGID TUBE for FX28/300/375/38/450/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	98412509 GASKET for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	4863965 GASKET for FX28/300/375/38/450/48 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
9	16043424 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, DAC for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	4873305 SCREW for FX28/300/375/38/450/48 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	10516871 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	10516879 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	17798374 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	500346382 RIGID TUBE for FX28/38/48 FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	99462920 RIGID TUBE - this part is no longer serviced FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	93161271 KIT for FX28/38/48 FOR FX28 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9967836 KIT for FX28/300/375/38/450/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	4865231 HOSE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	13000690 HOSE CLAMP for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	99462924 PLATE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	4863963 GASKET for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	42075987 SEAL for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	8100961 NUT - superseded to 500336442 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
19	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 (Job Qty: 5) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	16043624 SCREW,Hex, M8 x 25.00mm, Cl 8.8, DAC for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	18088692 HOSE CLIP (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	98463349 HOSE CLIP - this part has been superceded by 18088692 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	500336568 ELBOW for FX28/38/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	500336442 NUT - this part has been superceded by 8100961 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	4864038 GASKET for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	4863967 GASKET for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	16690924 SCREW for FX28/38/48 M8x40 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 FOR FX28 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
27	10516879 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	10516871 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	17798374 WASHER - this part has been superceded by 10571873 FOR FX38-48 ONLY (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	4682418 HYD CONNECTOR for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	10296260 SEAL,28.40mm ID x 36.00mm OD x 1.50mm, Copper for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
30	98442202 HYD CONNECTOR for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	98429280 GASKET for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	20
32	98429224 BANJO BOLT for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	4626901 RUBBER RING for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	4621091 COLLAR for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
36	16043424 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, DAC for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
37	99462893 SUPPORT for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	5801612480 COLLAR (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	4800661 COLLAR - this part has been superceded by 5801612480 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	14460181 O-RING,61.6mm ID x 2.62" Width - this part has been superceded by 17284681 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
39	17284681 GASKET - this part has been superceded by 17284681 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	61318365 ELBOW for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	8105248 SPACER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	8105249 RING for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
