FX38 - (9/98-) Engine

Key

Ref	Description
1	INSULATOR BLOCK
2	SHAFT
4	BELLEVILLE WASHER,Belleville, M10.5
5	WASHER,M10 x 22 x 3
6	NUT
7	BELLEVILLE WASHER,Conical, 19.00mm ID x 36.00mm OD x 3.60mm, 4.80mm, DAC
7	BELLEVILLE WASHER,Conical, 19.00mm ID x 36.00mm OD x 3.60mm, 4.80mm, DAC
8	ADVANCE DEVICE WEIGHT
9	WASHER
10	BUSHING
11	SCREW
12	ENGINE FLYWHEEL
13	CAM
14	WASHER
15	SCREW
16	CONTROL UNIT
17	NUT
18	LOCK WASHER (pack of 10)
18	LOCK WASHER
19	SCREW,Hex, M6 x 16, 8.8, Full Thd
20	SCREW
21	WASHER
3	SCREW,Hex, M10 x 1.25 x 30, 8.8, Full Thd

MalpasDirect - Replacement Tractors Parts

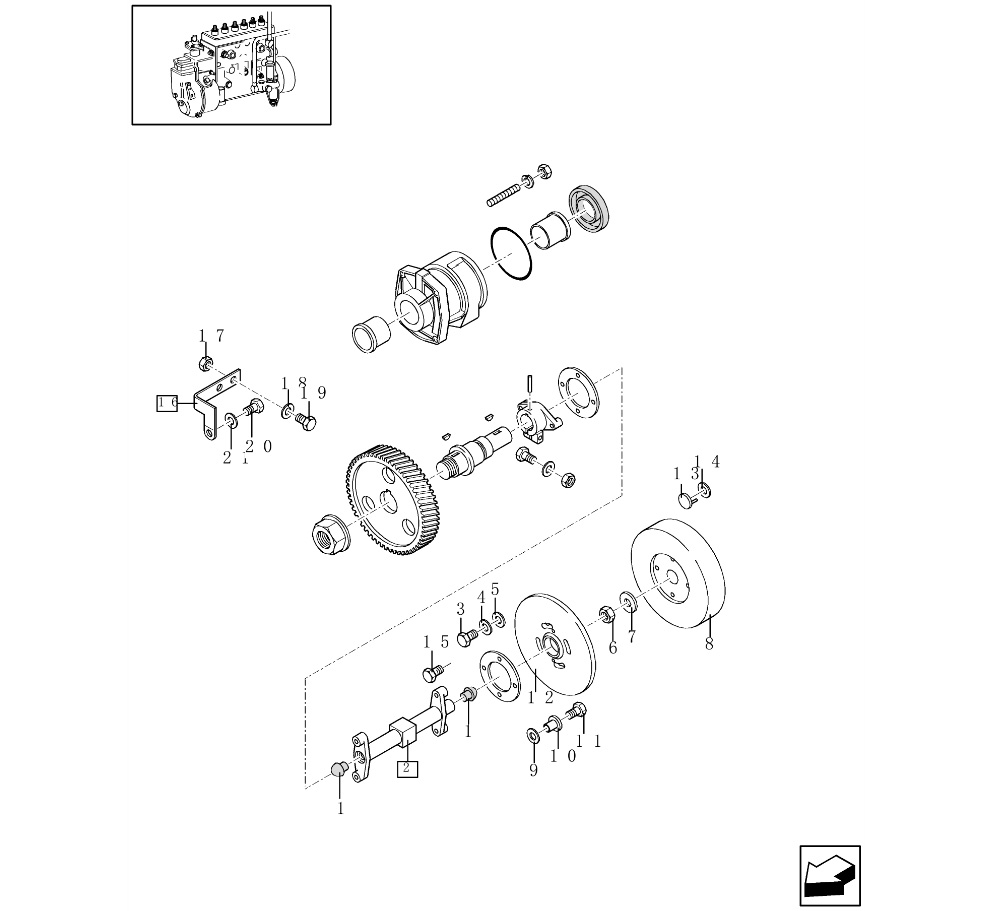

Diagram

Located in:

FX Series Parts / FX38 - (9/98-) / Engine /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	98469608 INSULATOR BLOCK for FX28/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	98469619 SHAFT for FX28/38/450/48 (1) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	11190574 BELLEVILLE WASHER,Belleville, M10.5 - this part has been superceded by 17090174 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	12626021 WASHER,M10 x 22 x 3 for FX28/38/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
6	17039221 NUT - this part has been superceded by 12164224 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	11191674 BELLEVILLE WASHER,Conical, 19.00mm ID x 36.00mm OD x 3.60mm, 4.80mm, DAC - this part has been superceded by 82827154 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	82827154 BELLEVILLE WASHER,Conical, 19.00mm ID x 36.00mm OD x 3.60mm, 4.80mm, DAC (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	99439042 ADVANCE DEVICE WEIGHT for FX28/38/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	4882441 WASHER for FX28/300/375/38/450/48 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	99447927 BUSHING for FX28/300/375/38/450/48 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	99462519 SCREW for FX28/38/48 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	500304324 ENGINE FLYWHEEL for FX28/38/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	98425632 CAM for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	61316640 WASHER for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	500330982 SCREW for FX28/38/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	4756612 CONTROL UNIT for FX28/38/450/48 , Serial Range: (17-21),FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	4756616 NUT for FX28/38/450/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	10516471 LOCK WASHER (pack of 10) FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	10516474 LOCK WASHER - this part has been superceded by 10516471 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	10902224 SCREW,Hex, M6 x 16, 8.8, Full Thd - this part has been superceded by 16603625 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	4756615 SCREW for FX28/38/450/48 FOR FX38-48 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	4799685 WASHER - this part has been superceded by 17094716 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	11306924 SCREW,Hex, M10 x 1.25 x 30, 8.8, Full Thd for FX28/38/48 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
				Add
