FX375 - YELLOW VERSION Electrical System

Key

Ref	Description
1	NUT,M4, Cl 8
1	NUT,M4, Cl 8 (pack of 25)
2	BELLEVILLE WASHER,Belleville, M4
3	POWER SOCKET,7 Pin
3	POWER SOCKET,7 Pin
4	SCREW,Cross Pan Hd, M4 x 40 (pack of 10)
4	SCREW,Cross Pan Hd, M4 x 40
5	WASHER,M4
5	WASHER,M4
6	SCREW,Cross Pan Hd, M4 x 30
6	SCREW,Cross Pan Hd, M4 x 30
7	REVERSING LAMP ASSY
8	BULB
8	BULB (pack of 2)
9	COVER
10	SEAL
11	HYD CONNECTOR
12	PLUG
13	PLUG
14	HOUSING
15	PLUG
16	STOP
17	WIRE HARNESS
17	WIRE HARNESS
18	WIRE HARNESS
18	WIRE HARNESS
19	SCREW,Cross Pan Hd, M6 x 20
20	BELLEVILLE WASHER,M10
21	BUSHING
23	BELLEVILLE WASHER,M8
24	SUPPORT
25	WASHER
26	PIN
26	PIN
27	PIN
28	SUPPORT
28	SUPPORT
28	SUPPORT
28	SUPPORT
29	BULB
29	BULB (pack of 2)
30	BULB,12V, 21W (pack of 2)
30	BULB,12V, 21W
31	LAMP
31	LAMP
31	LAMP
31	LAMP
31	TAIL LAMP
32	REFLECTOR
38	NUT,M5, Cl 8 (pack of 5)
38	NUT,M5, Cl 8
33	REFLECTOR
34	SPRING
35	SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd (pack of 5)
35	SCREW,Cross Pan Hd, M4 x 16
35	SCREW
36	GROMMET
37	WASHER,M4
37	WASHER,M4
37	BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN
38	NUT,M4, Cl 8
38	NUT,M4, Cl 8 (pack of 25)
39	BUSHING
40	BUSHING
41	SCREW
42	WASHER,M4 x 15 x 2 Thk
43	BELLEVILLE WASHER,Belleville, M4
22	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

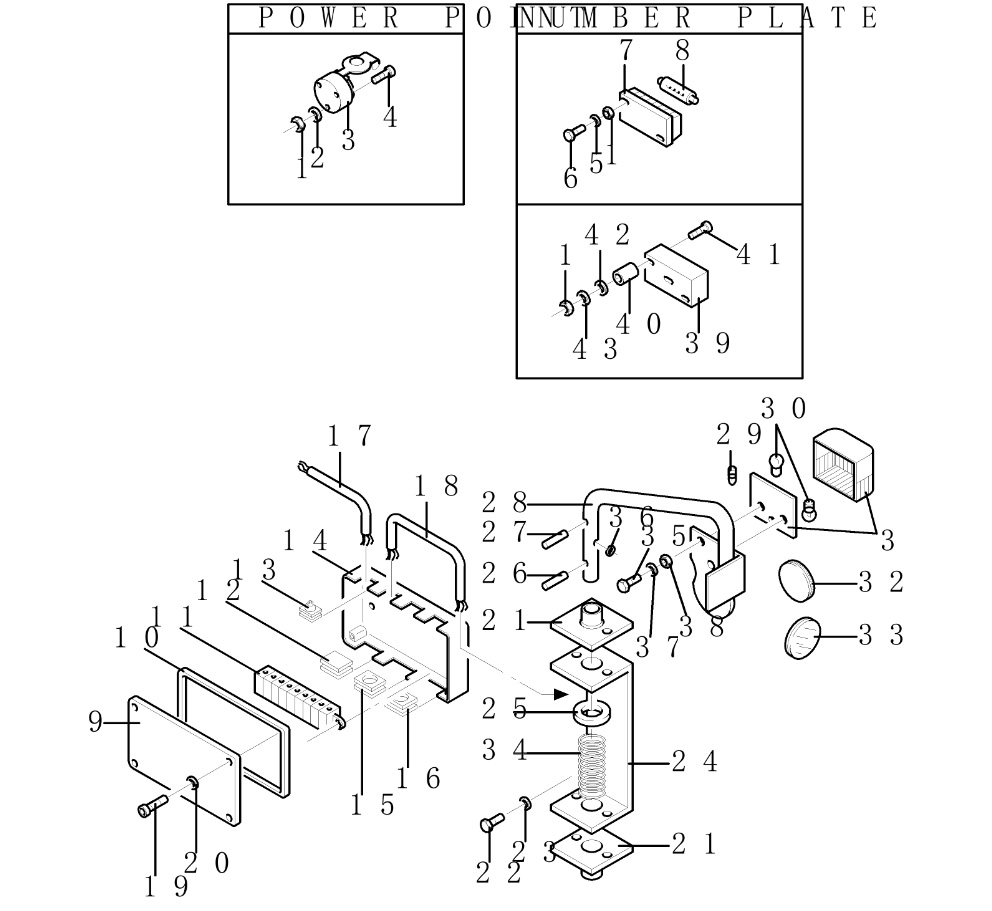

Diagram

Located in:

FX Series Parts / FX375 - YELLOW VERSION / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	57121 NUT,M4, Cl 8 (pack of 25) (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
2	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
3	398224 POWER SOCKET,7 Pin - this part has been superceded by 83959716 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	83959716 POWER SOCKET,7 Pin (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	86585707 SCREW,Cross Pan Hd, M4 x 40 (pack of 10) M4X40 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	412658 SCREW,Cross Pan Hd, M4 x 40 - this part has been superceded by 86585707 M4X40 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	140013 WASHER,M4 - this part has been superceded by 89824840 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	89824840 WASHER,M4 for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	86511825 SCREW,Cross Pan Hd, M4 x 30 for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	120202 SCREW,Cross Pan Hd, M4 x 30 - this part has been superceded by 86511825 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	445502 REVERSING LAMP ASSY for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	470017 BULB - this part has been superceded by 10863090 12V/5W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	10863090 BULB (pack of 2) 12V/5W (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	9506872 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	9506873 SEAL for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	433132 HYD CONNECTOR for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9508323 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	9504337 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	9507881 HOUSING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	9504343 PLUG for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	9504340 STOP for FX300/375/450 , Serial Range: -C0404 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84001792 WIRE HARNESS for FX300/375/450 LH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	84002981 WIRE HARNESS - this part has been superceded by 84035446 LH, Start Serial: D1000 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84001793 WIRE HARNESS for FX300/375/450 RH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	84002982 WIRE HARNESS - this part has been superceded by 84035447 RH, Start Serial: D1000 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	86511830 SCREW,Cross Pan Hd, M6 x 20 for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
20	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 4) In Stock Shipping Costs...	Call Ex VAT	25
21	921928 BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 8) In Stock Shipping Costs...	Call Ex VAT	1
24	9814947 SUPPORT for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	378248 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
26	412689 PIN (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
26	84022829 PIN - this part has been superceded by 412689 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	9503523 PIN - this part has been superceded by 412660 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84018942 SUPPORT - this part has been superceded by 84042647 LH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84018943 SUPPORT for FX300/375/450 RH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84038043 SUPPORT - this part has been superceded by 84042647 LH, Start Serial: D1000 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84038045 SUPPORT - this part has been superceded by 84455205 RH, Start Serial: D1000 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	418870 BULB - this part has been superceded by 14149590 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	14149590 BULB (pack of 2) (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	14148190 BULB,12V, 21W (pack of 2) (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	398877 BULB,12V, 21W - this part has been superceded by 14148190 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	434928 LAMP - this part has been superceded by 80434928 RH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	80434928 LAMP RH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	445631 LAMP - this part has been superceded by 434927 LH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	434927 LAMP for FX300/375/450 LH, Serial Range: -C0409 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	84037090 TAIL LAMP for all New Holland FX Forager Harvesters models , Start Serial: D1000 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	437024 REFLECTOR for all New Holland FX Forager Harvesters models RED (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	10788811 NUT,M5, Cl 8 (pack of 5) , Start Serial: D1000 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	86508813 NUT,M5, Cl 8 - this part has been superceded by 10788811 , Start Serial: D1000 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	435895 REFLECTOR for all New Holland FX Forager Harvesters models YELLOW (Job Qty: AR) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
34	435967 SPRING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	13272214 SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd (pack of 5) , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	86511042 SCREW,Cross Pan Hd, M4 x 16 - this part has been superceded by 13272214 , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
35	120010 SCREW for all New Holland FX Forager Harvesters models M4X16, Start Serial: D1000 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
36	411809 GROMMET for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	140013 WASHER,M4 - this part has been superceded by 89824840 , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	89824840 WASHER,M4 for FX28/300/375/38/450/48/58 , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
37	322356 BELLEVILLE WASHER,M5.1 x 12 x 1.85, HDN for all New Holland FX Forager Harvesters models , Start Serial: D1000 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
38	100012 NUT,M4, Cl 8 - this part has been superceded by 57121 , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
38	57121 NUT,M4, Cl 8 (pack of 25) , Serial Range: -C0409 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	25
39	84039003 BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
40	441370 BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
41	412473 SCREW for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
42	335872 WASHER,M4 x 15 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
43	322355 BELLEVILLE WASHER,Belleville, M4 for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
22	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
