FX375 - YELLOW VERSION Drive Line

Key

Ref	Description
1	SHAFT
1	SHAFT
2	BUSHING
3	SEALING ELEMENT
3	SEALING RING
3	SEALING RING
4	SNAP RING,M90, Int
5	BALL BEARING
6	CIRCLIP,M55, Ext
7	SEAL
7	SEALING RING
8	STUD
8	STUD
9	CIRCLIP,M20, Ext
10	WASHER
11	GEAR
12	BUSHING
12	SLEEVE
13	SEALING RING
13	SEALING RING
13	SEAL
14	BUSHING
15	BEARING ASSY
15	BEARING ASSY
16	GEAR
17	BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm
17	BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm
18	BELLEVILLE WASHER,M8
19	SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND
20	SNAP RING,M40, Ext
20	RING
21	GEAR
21	GEAR
22	RING
22	RING
23	NEEDLE BEARING CAGE
24	RING GEAR
25	RING
26	SNAP RING
27	RING
28	FLANGE COVER CAP
29	SCREW,Hex Soc Flat Hd, M12 x 25, 8.8
30	BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm
30	BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm
30	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
31	CIRCLIP

MalpasDirect - Replacement Tractors Parts

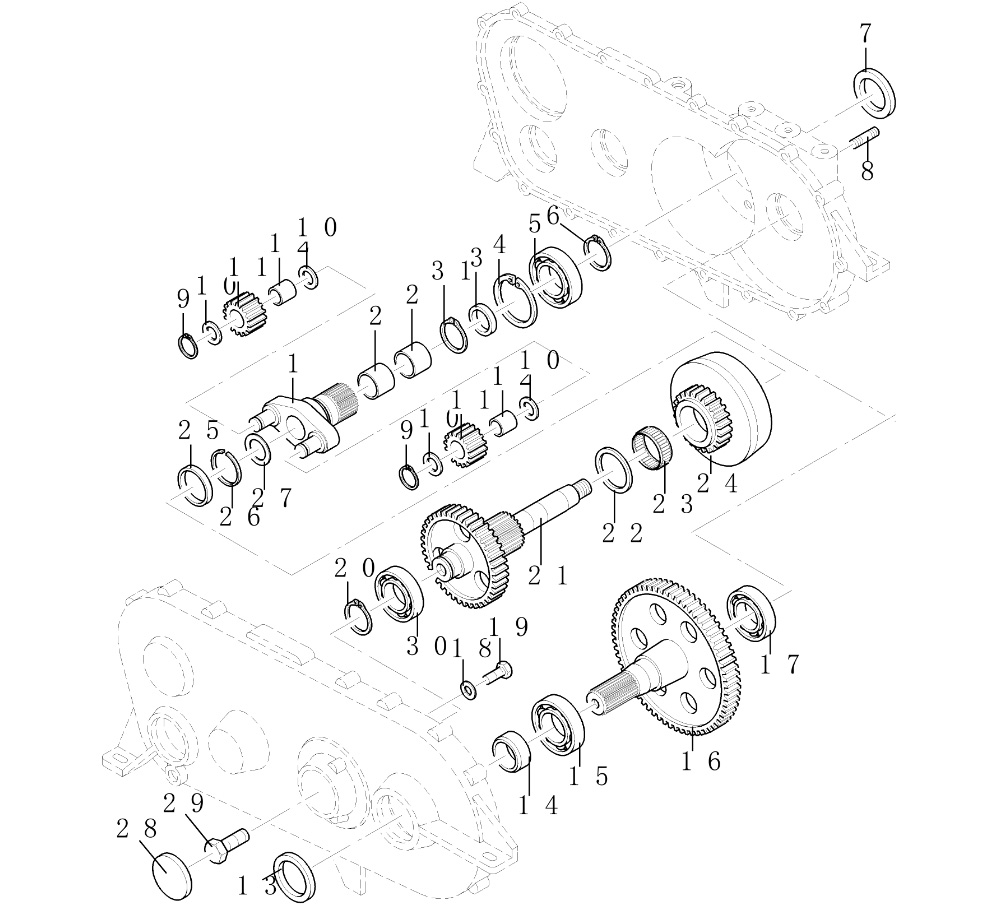

Diagram

Located in:

FX Series Parts / FX375 - YELLOW VERSION / Drive Line /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84005627 SHAFT - this part has been superceded by 84037973 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
1	84037973 SHAFT for FX28/300/375/38/450/48/58 , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	80535318 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84041902 SEALING ELEMENT for FX28/300/375/38/450/48/58 45 x 35 x 7 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	80444355 SEALING RING for FX28/300/375/38/450/48/58 43 x 35 x 4 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	444355 SEALING RING - this part has been superceded by 80444355 43 x 35 x 4 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	370013 SNAP RING,M90, Int for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
5	84037967 BALL BEARING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	327911 CIRCLIP,M55, Ext for all New Holland FX Forager Harvesters models (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	2
7	84005604 SEAL - this part has been superceded by 47721305 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84041900 SEALING RING for FX28/300/375/38/450/48/58 SEALRING, Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
8	430945 STUD - this part has been superceded by 80430945 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	80430945 STUD for FX28/300/375/38/450/48/58 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	370024 CIRCLIP,M20, Ext for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
10	84005625 WASHER - this part has been superceded by 84381305 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	89833775 GEAR - this part has been superceded by 84058624 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84058613 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84005674 SLEEVE - this part has been superceded by 84058613 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	412442 SEALING RING - this part has been superceded by 80412442 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	80412442 SEALING RING for FX300/375/450 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84017986 SEAL for all New Holland FX Forager Harvesters models , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84005677 BUSHING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	440395 BEARING ASSY - this part has been superceded by 84330059 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	210058 BEARING ASSY - this part has been superceded by 84330059 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	89833776 GEAR for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	114085 BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm - this part has been superceded by 84312857 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	20915780 BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm - this part has been superceded by 84312857 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	322358 BELLEVILLE WASHER,M8 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	1
19	120104 SCREW,Hex, M8 x 1.25 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	50
20	370006 SNAP RING,M40, Ext for all New Holland FX Forager Harvesters models , Serial Range: -C0412 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	5
20	84037972 RING for FX28/300/375/38/450/48/58 , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84005678 GEAR for FX300/375/450 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84037970 GEAR for FX28/300/375/38/450/48/58 , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84005660 RING - this part has been superceded by 84400924 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	84400924 RING (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	84005624 NEEDLE BEARING CAGE - this part has been superceded by 5141237 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
24	89833771 RING GEAR for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
25	89833772 RING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	84005626 SNAP RING for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	84005622 RING - this part is no longer serviced , Serial Range: -C0408 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	84005692 FLANGE COVER CAP for FX28/300/375/38/450/48/58 , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	84037971 SCREW,Hex Soc Flat Hd, M12 x 25, 8.8 for FX28/300/375/38/450/48/58 M12X25, Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
30	20915780 BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm - this part has been superceded by 84312857 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	114085 BALL BEARING,39.9999 mm ID x 79.9998 mm OD x 18.001 mm - this part has been superceded by 84312857 , Serial Range: -C0412 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	323327 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for all New Holland FX Forager Harvesters models , Start Serial: D1300 (Job Qty: 1) In Stock Shipping Costs...	Call Ex VAT	1
31	84037855 CIRCLIP for FX28/300/375/38/450/48/58 , Start Serial: D1300 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
