FX375 - YELLOW VERSION Crop Processor

Key

Ref	Description
2	BELLEVILLE WASHER,Belleville, M12
3	WASHER
4	ROLLER
5	FLANGE
6	SET SCREW,Hex Soc, M8 x 20, Cup Pt
7	NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND
8	SET OF RINGS
8	RING
9	BEARING ASSY,40 mm ID x 80 mm OD x 23 mm
10	BEARING HOUSING,55 mm ID x 105 mm OD x 89.5 mm
11	BOLT,Hex, M12 x 40, 10.9, Full Thd
12	PISTON RING SET
12	PISTON RING SET
13	FLANGE(CPP)
14	PULLEY
15	BEARING HOUSING,55 mm ID x 105 mm OD x 68.5 mm
16	BUSHING
17	WASHER,M13 x 28 x 2 Thk
18	BOLT,Hex, M12 x 35, 8.8, Full Thd
19	BRACKET
20	PIN
21	SLEEVE
22	BELLEVILLE WASHER,M10
1	BOLT,Hex, M12 x 30, 8.8, Full Thd
23	BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND

MalpasDirect - Replacement Tractors Parts

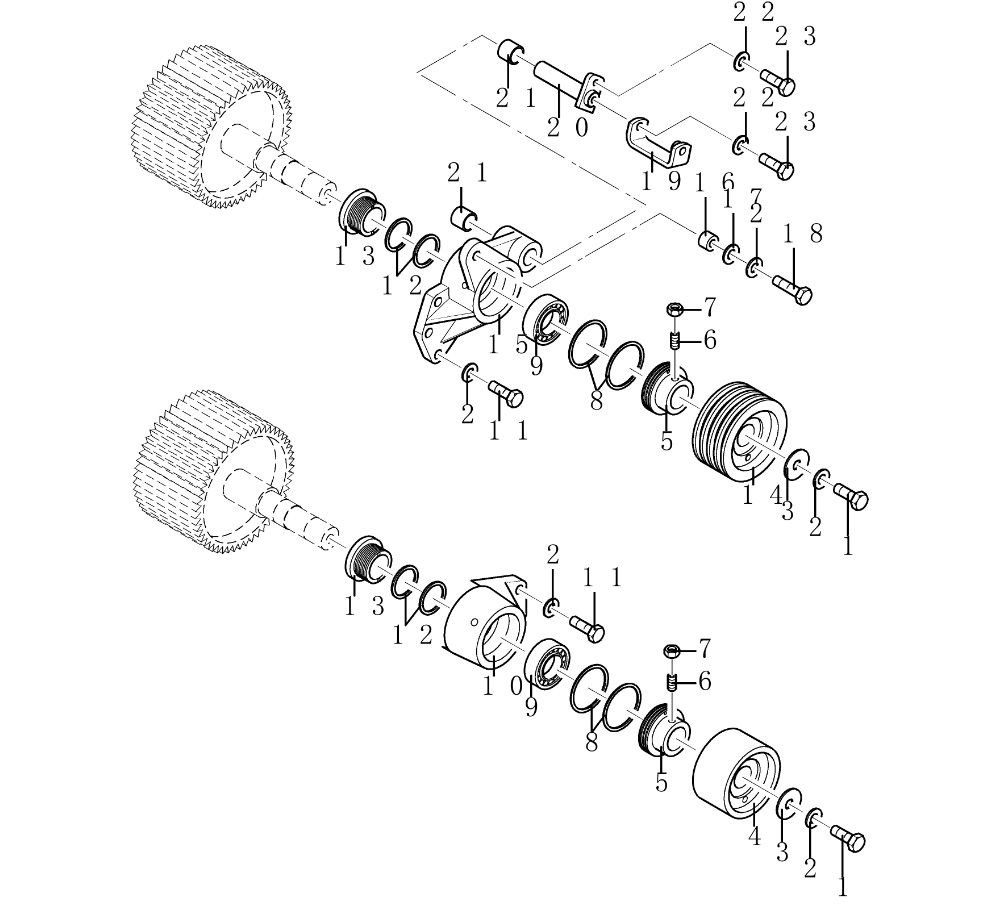

Diagram

Located in:

FX Series Parts / FX375 - YELLOW VERSION / Crop Processor /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
2	140046 BELLEVILLE WASHER,Belleville, M12 for all New Holland FX Forager Harvesters models (Job Qty: 10) In Stock Shipping Costs...	Call Ex VAT	10
3	9801096 WASHER for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
4	84023882 ROLLER for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84000852 FLANGE for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	300478 SET SCREW,Hex Soc, M8 x 20, Cup Pt for all New Holland FX Forager Harvesters models M8X20 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
7	9706690 NUT,Hex, M8, 1.25mm Pitch, 6.80mm High, Cl 8, ZND - this part has been superceded by 43362 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	89850345 SET OF RINGS - this part has been superceded by 9850345 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	9850345 RING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	323327 BEARING ASSY,40 mm ID x 80 mm OD x 23 mm for all New Holland FX Forager Harvesters models MAINTENANCE PARTS (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	1
10	84000859 BEARING HOUSING,55 mm ID x 105 mm OD x 89.5 mm for FX300/375/450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	337563 BOLT,Hex, M12 x 40, 10.9, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
12	89850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	9850344 PISTON RING SET - this part has been superceded by 9850344 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84000853 FLANGE(CPP) for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84000692 PULLEY for FX28/300/375/38/450/48/58 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84000913 BEARING HOUSING,55 mm ID x 105 mm OD x 68.5 mm - this part has been superceded by 84400461 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	84000851 BUSHING for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	378245 WASHER,M13 x 28 x 2 Thk for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
18	300389 BOLT,Hex, M12 x 35, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
19	84019019 BRACKET - this part is no longer serviced , Serial Range: -C0413 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	84000928 PIN for FX300/375/450 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	84019797 SLEEVE for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	140045 BELLEVILLE WASHER,M10 for all New Holland FX Forager Harvesters models (Job Qty: 3) In Stock Shipping Costs...	Call Ex VAT	25
1	9706687 BOLT,Hex, M12 x 30, 8.8, Full Thd for all New Holland FX Forager Harvesters models (Job Qty: 2) In Stock Shipping Costs...	Call Ex VAT	10
23	43138 BOLT,Hex, M10 x 1.5 x 20.00mm, Cl 8.8, ZND for all New Holland FX Forager Harvesters models (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
