FX300 - YELLOW VERSION General

Key

Ref	Description
1	ELECTROMAGNET
2	SCREW
3	SCREW,Hex, M6 x 16, 8.8, Full Thd
4	BOOT
4	BOOT
5	NUT,M8, Cl 10
6	BELLEVILLE WASHER,Belleville, M6.4
7	SUPPORT
8	WASHER,Flat, 5.30mm ID x 10.00mm OD x 1.00mm, R40, ZND
8	WASHER,Flat, 5.30mm ID x 10.00mm OD x 1.00mm, R40, ZND
9	CLEVIS
10	YOKE
11	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
12	PIN
13	COTTER PIN,M1.6 x 12
13	COTTER PIN,M1.6 x 12
14	SUPPORT
15	SUPPORT
16	KEY
17	LEVER
18	SCREW
19	TIE-ROD
20	NUT,M6, Brass
21	ARTICULATION
22	SCREW
23	NUT
2	BOLT,Hex, M6 x 10, 8.8, Full Thd
3	BOLT,Hex, M6 x 10, 8.8, Full Thd

MalpasDirect - Replacement Tractors Parts

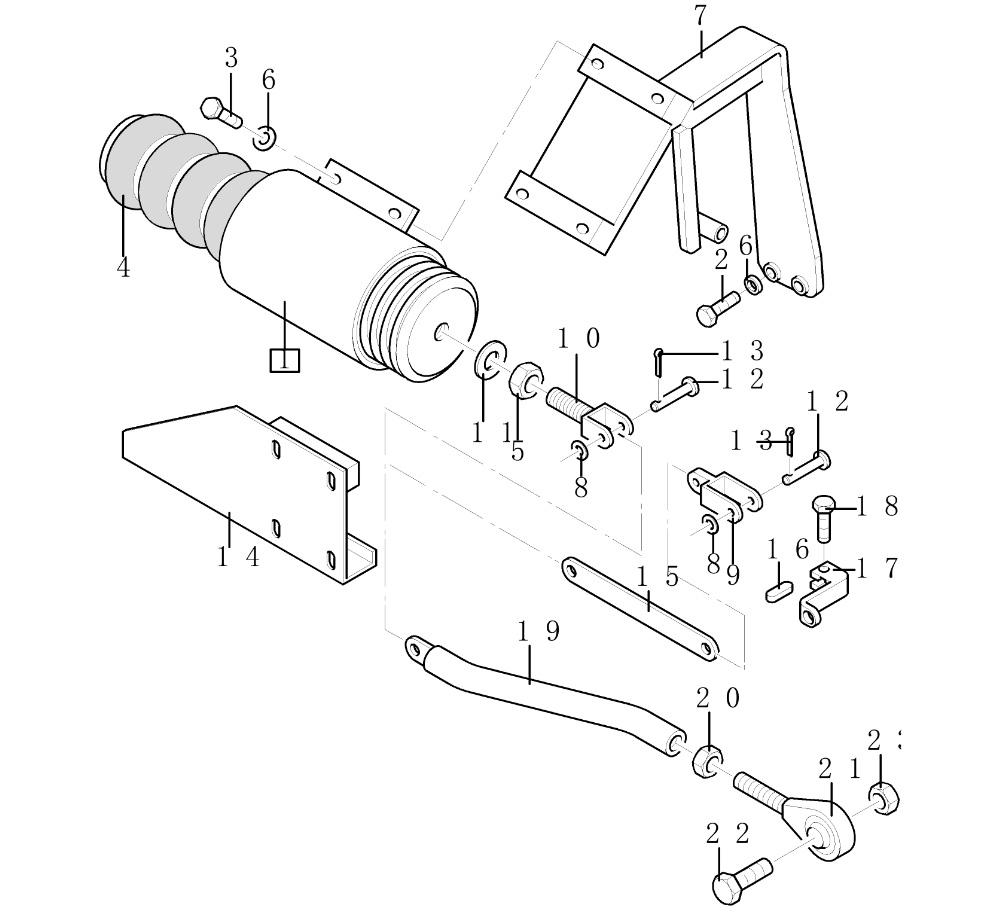

Diagram

Located in:

FX Series Parts / FX300 - YELLOW VERSION / General /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	8017114 ELECTROMAGNET for FX28/300/375/38/450/48 (4,11),MAINTENANCE PARTS (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	16689624 SCREW for FX300/375/450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
3	10902224 SCREW,Hex, M6 x 16, 8.8, Full Thd - this part has been superceded by 16603625 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	8111523 BOOT (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	98417461 BOOT - this part has been superceded by 8111523 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	16100821 NUT,M8, Cl 10 - this part has been superceded by 17037925 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	11197774 BELLEVILLE WASHER,Belleville, M6.4 for FX28/300/375/38/450/48 (Job Qty: 7) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
7	8006296 SUPPORT for FX300/375/450 FOR ENGINE TYPE 8210SRI 21A 001 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	17094504 WASHER,Flat, 5.30mm ID x 10.00mm OD x 1.00mm, R40, ZND (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	14496301 WASHER,Flat, 5.30mm ID x 10.00mm OD x 1.00mm, R40, ZND - this part has been superceded by 17094504 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	98417468 CLEVIS for FX300/375/450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	8110822 YOKE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
12	10033211 PIN for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
13	10734101 COTTER PIN,M1.6 x 12 - this part has been superceded by 87016658 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	87016658 COTTER PIN,M1.6 x 12 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	8018927 SUPPORT for FX28/300/375/38/450/48 FOR ENGINE TYPE 8210SRI 21A 005 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	8018926 SUPPORT - this part has been superceded by 8016587 FOR ENGINE TYPE 8210SRI 21A 005 ONLY (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	98417458 KEY for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
17	98417455 LEVER for FX300/375/450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	16602124 SCREW for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
19	8021867 TIE-ROD for FX28/300/375/38/450/48 (21) (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	15896240 NUT,M6, Brass for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
21	8016587 ARTICULATION for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	8016470 SCREW for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
23	17152621 NUT for FX28/300/375/38/450/48 M5 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	10979424 BOLT,Hex, M6 x 10, 8.8, Full Thd for FX300/375/450 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	10979424 BOLT,Hex, M6 x 10, 8.8, Full Thd for FX300/375/450 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
