FX300 - YELLOW VERSION General

Key

Ref	Description
1	BOLT,Hex, M8 x 40, 10.9
2	WASHER,M8 x 17 x 2
3	STUD
3	STUD
4	WASHER
5	GASKET,2.225" ID x 2.645" OD x 0.21"
6	RIGID TUBE
7	RIGID TUBE
8	GASKET
9	RIGID TUBE
10	HOSE CLAMP
10	CLIP
11	RIGID TUBE
12	HOSE
13	DUCT
14	DUCT
15	GASKET
16	FLANGE
17	SLEEVE
18	O-RING,0.984" ID x 0.139" Width
19	GASKET
19	GASKET
20	WASHER
21	STUD
22	NUT,M8, Cl 10
23	SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, DAC
24	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
25	RIGID TUBE
26	RIGID TUBE
27	SCREW,Hex, M8 x 35, 8.8, Full Thd
28	HOSE
29	NUT,Hex, M8, 6.80mm, Cl 8, ZND
30	SCREW,Hex, M8 x 45, 8.8
31	RIGID TUBE
32	STUD

MalpasDirect - Replacement Tractors Parts

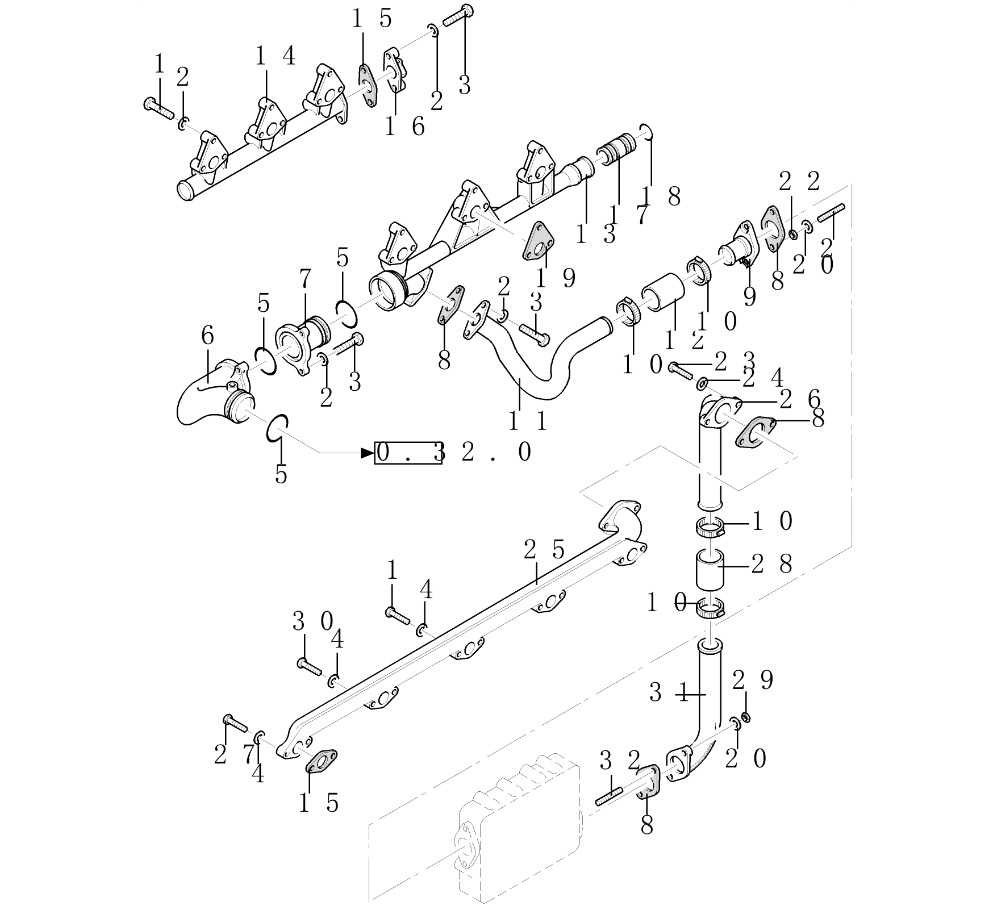

Diagram

Located in:

FX Series Parts / FX300 - YELLOW VERSION / General /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	16044031 BOLT,Hex, M8 x 40, 10.9 for FX28/300/375/38/450/48 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
2	10519624 WASHER,M8 x 17 x 2 for FX28/300/375/38/450/48 (Job Qty: 15) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
3	13543321 STUD - this part has been superceded by 16746624 M8X30 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	16746624 STUD M8X30 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	4852211 WASHER for FX28/300/375/38/450/48 (Job Qty: 20) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
5	14471481 GASKET,2.225" ID x 2.645" OD x 0.21" for FX28/300/375/38/450/48 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	98478087 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	4859434 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	4863951 GASKET for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
9	4756798 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	13000890 HOSE CLAMP - this part has been superceded by 18088892 D=50-70 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
10	18088892 CLIP - this part has been superceded by 18088892 D=50-70 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
11	98485417 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	4863960 HOSE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	4813618 DUCT for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	4813620 DUCT for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	500308780 GASKET for FX28/300/375/38/450/48 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
16	4641233 FLANGE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
17	4762647 SLEEVE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	14463281 O-RING,0.984" ID x 0.139" Width - this part has been superceded by 17288681 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	4852099 GASKET - this part has been superceded by 99456733 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	99456733 GASKET - this part has been superceded by 99456733 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	17793814 WASHER for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
21	13543521 STUD - this part has been superceded by 16746725 M8X25 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
22	16100821 NUT,M8, Cl 10 - this part has been superceded by 17037925 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	16043824 SCREW,Hex, M8 x 1.25 x 30.00mm, Cl 8.8, DAC for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
24	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 (Job Qty: 12) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
25	98471454 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	4670077 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	16043924 SCREW,Hex, M8 x 35, 8.8, Full Thd - this part has been superceded by 16605824 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
28	4863962 HOSE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
29	16100811 NUT,Hex, M8, 6.80mm, Cl 8, ZND for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
30	16044124 SCREW,Hex, M8 x 45, 8.8 for FX28/300/375/38/450/48 (Job Qty: 6) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
31	4756199 RIGID TUBE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
32	13516821 STUD - this part has been superceded by 16729324 M8X20 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
