FX300 - YELLOW VERSION General

Key

Ref	Description
1	GASKET
2	COVER
3	SCREW,Hex, M10 x 1.25 x 22.00mm, Cl 8.8, DAC
4	BELLEVILLE WASHER,Belleville, M10.5
5	COVER
6	GASKET
7	SCREW,Hex, M6 x 16, 8.8, Full Thd
8	BELLEVILLE WASHER,Belleville, M6.4
9	INJECTION PUMP SUPPORT
10	DOWEL,M10 x 25
11	SCREW
12	SCREW
13	SCREW
14	BUSHING
15	COVER
16	GASKET
17	GASKET
18	LOCK WASHER
19	OPERATOR TIMING REF/IND
20	GASKET
20	GASKET
21	SCREW,Hex, M12 x 1.25 x 45, 10.9
22	WASHER
23	SCREW,Hex, M14 x 1.5 x 50, 10.9
24	BOLT,Hex, M14 x 1.5 x 60, 10.9
25	WASHER
26	COVER PLATE
28	BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8
29	COVER
30	SCREW,Hex, M10 x 1.25 x 25, 8.8, Full Thd
31	BELLEVILLE WASHER,Belleville, M10.5
32	COVER
33	O-RING,55.24mm ID x 2.62" Width
33	O-RING
27	SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC

MalpasDirect - Replacement Tractors Parts

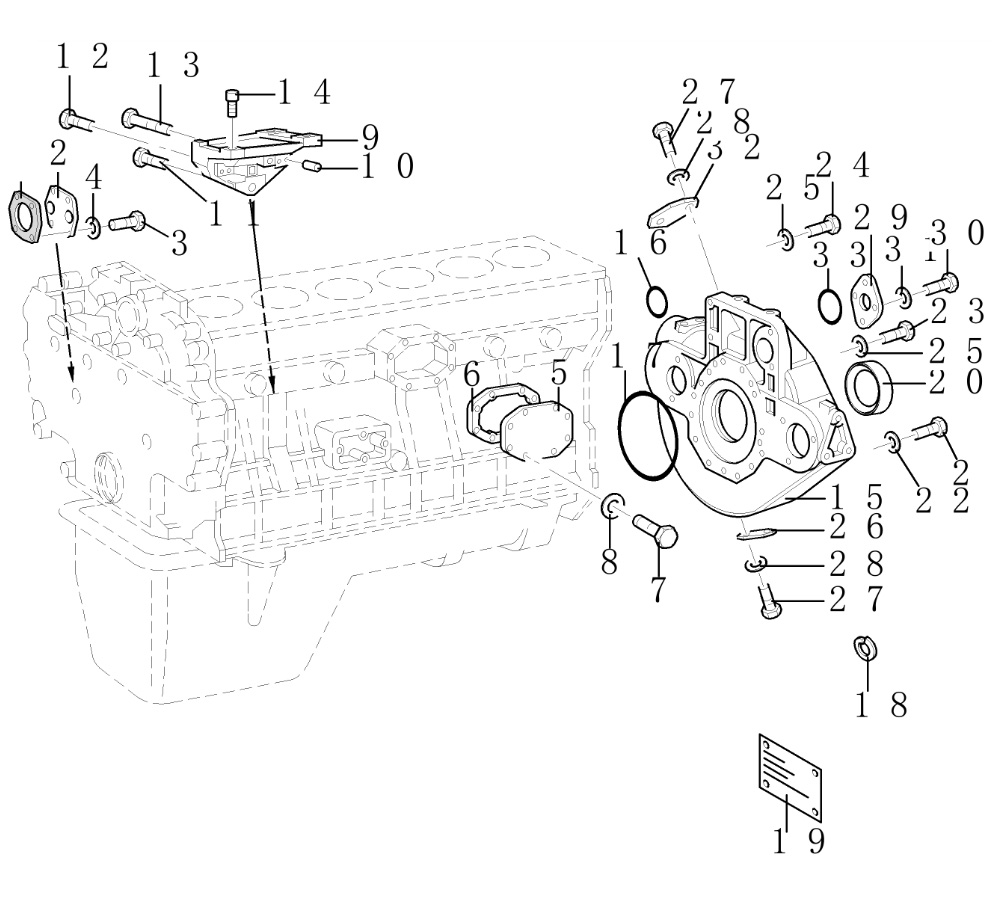

Diagram

Located in:

FX Series Parts / FX300 - YELLOW VERSION / General /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	98424208 GASKET for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	4773932 COVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	15970624 SCREW,Hex, M10 x 1.25 x 22.00mm, Cl 8.8, DAC for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
4	11190574 BELLEVILLE WASHER,Belleville, M10.5 - this part has been superceded by 17090174 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
5	4530113 COVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	4863958 GASKET for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	10902224 SCREW,Hex, M6 x 16, 8.8, Full Thd - this part has been superceded by 16603625 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
8	11197774 BELLEVILLE WASHER,Belleville, M6.4 for FX28/300/375/38/450/48 (Job Qty: 8) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
9	4643582 INJECTION PUMP SUPPORT for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	10837710 DOWEL,M10 x 25 for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
11	16326521 SCREW for FX28/300/375/38/450/48 M12X45 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
12	16326824 SCREW for FX28/300/375/38/450/48 M12X60 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	16327024 SCREW for FX28/300/375/38/450/48 M12X70 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	4626942 BUSHING for FX28/300/375/38/450/48 (Job Qty: 2) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
15	99481101 COVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
16	98464890 GASKET for FX28/300/375/38/450/48 D=74 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
17	98464798 GASKET for FX28/300/375/38/450/48 D=274 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
18	12649624 LOCK WASHER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
19	61315660 OPERATOR TIMING REF/IND - this part is no longer serviced E (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	98467213 GASKET - this part has been superceded by 98494987 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
20	98494987 GASKET (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
21	15540734 SCREW,Hex, M12 x 1.25 x 45, 10.9 for FX28/300/375/38/450/48 (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
22	4837398 WASHER for FX28/300/375/38/450/48 12MM (Job Qty: 10) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
23	15860131 SCREW,Hex, M14 x 1.5 x 50, 10.9 - this part has been superceded by 15860133 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	2
24	15977531 BOLT,Hex, M14 x 1.5 x 60, 10.9 for FX28/300/375/38/450/48 (Job Qty: 3) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
25	4604279 WASHER for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
26	4749426 COVER PLATE for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
28	11193874 BELLEVILLE WASHER,8.4mm ID x 16.00mm OD x 1.4mm, 1.85mm, Cl 8.8 for FX28/300/375/38/450/48 (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
29	4651691 COVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
30	15970724 SCREW,Hex, M10 x 1.25 x 25, 8.8, Full Thd - this part has been superceded by 15004021 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
31	11190574 BELLEVILLE WASHER,Belleville, M10.5 - this part has been superceded by 17090174 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	10
32	4935929 COVER for FX28/300/375/38/450/48 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
33	14459781 O-RING,55.24mm ID x 2.62" Width - this part has been superceded by 17284281 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	5
33	17284281 O-RING - this part has been superceded by 17284281 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
27	16043224 SCREW,Hex, M8 x 16.00mm, Cl 8.8, DAC for all New Holland FX Forager Harvesters models (Job Qty: 4) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
