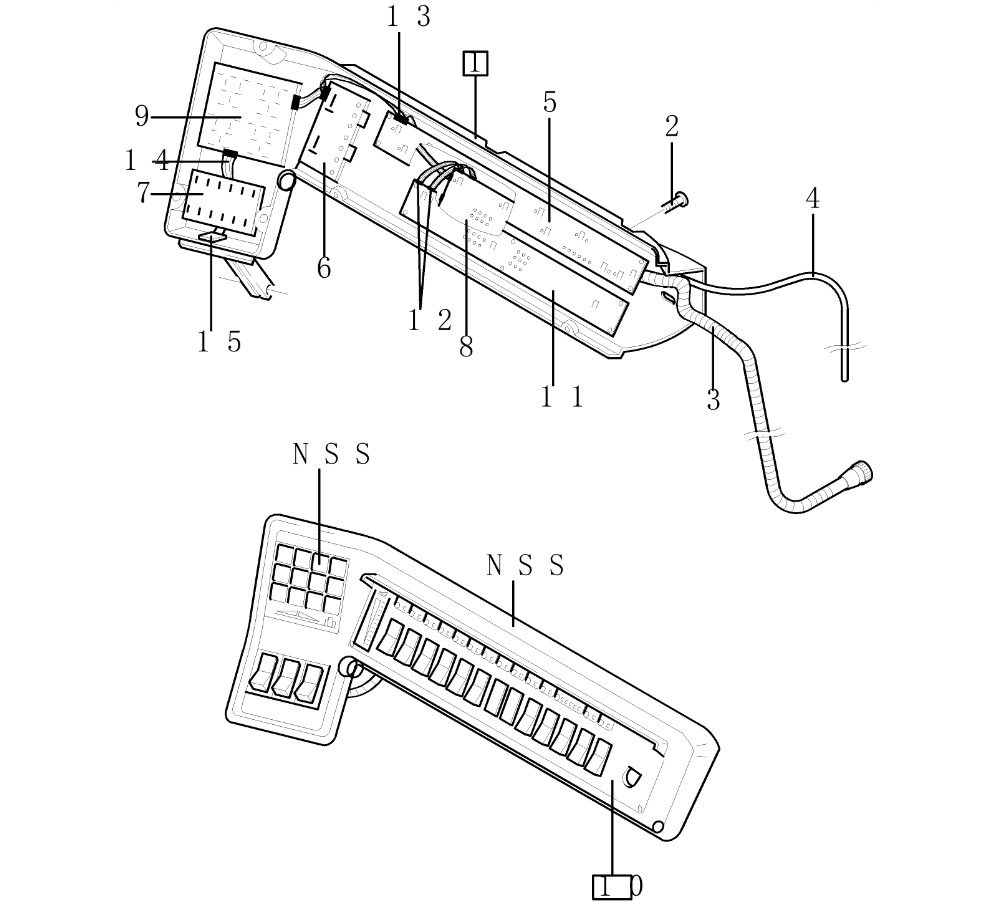

FX300 - YELLOW VERSION Electrical System

Key

Ref	Description
1	COVER
2	SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd (pack of 5)
2	SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd
3	WIRE HARNESS
3	WIRE HARNESS
3	WIRE HARNESS
3	WIRE HARNESS
4	CABLE
5	PRINTED CIRCUIT BOARD
6	PRINTED CIRCUIT BOARD
7	PRINTED CIRCUIT BOARD
8	PRINTED CIRCUIT BOARD
9	PRINTED CIRCUIT BOARD
10	INSTRUMENT PANEL
11	PRINTED CIRCUIT BOARD
12	ELECTRIC CABLE
13	ELECTRIC CABLE
14	ELECTRIC CABLE
15	ELECTRIC CABLE

MalpasDirect - Replacement Tractors Parts

Diagram

Located in:

FX Series Parts / FX300 - YELLOW VERSION / Electrical System /

Ref	Part No. and Description	Price (GBP) VAT (20%)	Min.(Qty)	Add
1	84001897 COVER for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	13272214 SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd (pack of 5) (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
2	412475 SCREW,Pan Hd, M4 x 16, Cl 4.8, Full Thd - this part has been superceded by 13272214 (Job Qty: 9) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84002741 WIRE HARNESS for FX300/375/450 , Serial Range: -C0909 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84002993 WIRE HARNESS for FX300/375/450 , Serial Range: -C1013 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84052136 WIRE HARNESS for FX300/375/450 , Serial Range: -C0002 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
3	84057109 WIRE HARNESS for FX28/300/375/38/450/48/58 , Start Serial: D5053 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
4	9850332 CABLE for all New Holland FX Forager Harvesters models L=6M (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
5	84036151 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models LEDS (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
6	84036152 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models HEADER (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
7	84019560 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models 3 SWITCH (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
8	84036154 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models CPU (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
9	84036153 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models AOM (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
10	84037142 INSTRUMENT PANEL for all New Holland FX Forager Harvesters models INCL. ITEMS 5 TO 9,11 AND GROUP 7.4 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
11	84036150 PRINTED CIRCUIT BOARD for all New Holland FX Forager Harvesters models SWITCHES (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
12	84037738 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
13	84037739 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
14	84037737 ELECTRIC CABLE for all New Holland FX Forager Harvesters models (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
15	84037745 ELECTRIC CABLE for all New Holland FX Forager Harvesters models RS232 (Job Qty: 1) Part superseded - limited stock Shipping Costs...	Call Ex VAT	1
